Zoeller 98-0005 Model BN98 Sump Pump 0.5 HP 115V 1PH 15' Cord Automatic
Zoeller 98-0005 Model BN98 Sump Pump 0.5 HP 115V 1PH 15' Cord Automatic
SKU : ZLR98-0005
In Stock Quantity:0
:
Brand
:
Regular price
$372.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

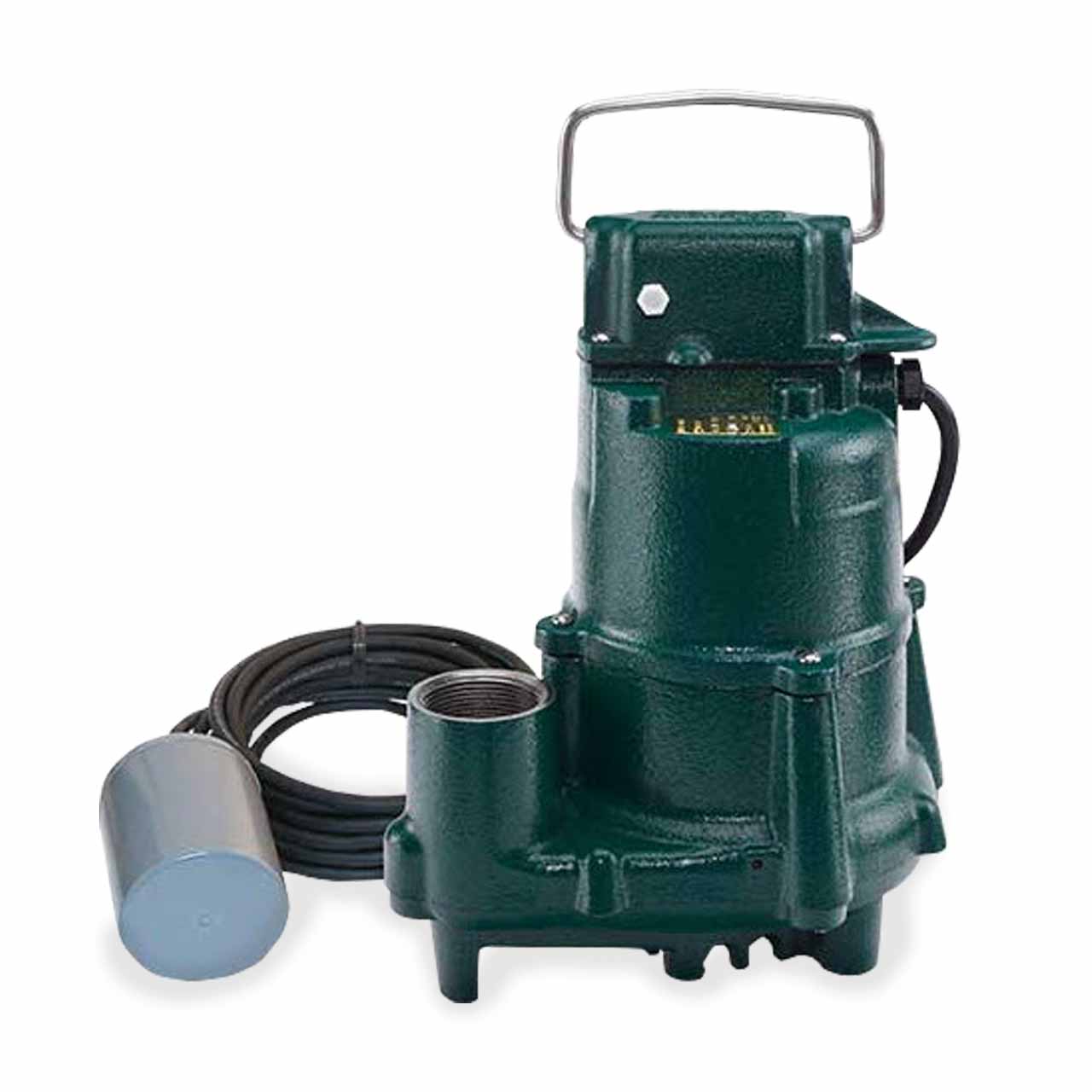

Zoeller Model 98 Sump Pump Description
Our Model BN98 Effluent Pump is designed to remove unwanted water in sump or septic effluent applications. The professional-grade, 1/2 HP Model 98 is known for its dependability. The BN98 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 98’s switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 98 is able to withstand the most demanding applications.
Zoeller Model 98 Sump Pump Features and Benefits
- Oil-Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation which Prevents the Pump from Overheating
- Automatic High Flow Sump with a Time-Tested, Preset, Built-In Snap Action Switch that Makes for Easy Installation
- Corrosion Resistant Engineered Plastic Vortex Impeller to Allow Free Passage of Solids which Prevents Clogging and Lessens Downtime
- Stainless Steel Float Guard that Prevents Material or Debris from Collecting on the Float Ensuring Proper Operation Every Time
- Solid, Buoyant, Polypropylene Float to Eliminate the Possibility of Water Infiltration Allowing the Float to Remain Buoyant and Functional at all Times
- Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
- Stainless Steel Screws, Switch Arm, Handle and Hardware to Prevent Rust and Corrosion over the Life of the Pump
- 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure that it Performs as Expected when you Receive it
- 3-Year Limited Warranty: This Model Comes with Warranty Coverage from Zoeller Pump Company, Giving You Protection Over Your Investment and the Peace of Mind you Expect in a Quality Product
Specifications
Specifications
Zoeller 98-0005 Sump Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 9.4
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1725 RPM
- MAXIMUM HEAD: 23'
- MAXIMUM CAPACITY: 72 GPM
- SWITCH TYPE: Piggyback Variable Level Float Switch
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 1/2" Spherical Solid
- IMPELLER TYPE: Engineered Plastic, Non-Clogging Vortex
- CORD LENGTH: 15'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model 98 Sump Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 98 Sump Pump Product Resources
Download Zoeller Model 98 Sump Pump Brochure FM3012
Download Zoeller Model 98 Sump Pump Technical Data Sheet FM2779
Download Zoeller Model 98 Sump Pump Installation Instructions FM2676
Download Zoeller Model 98 Sump Pump Parts List FM1032
Download Zoeller Model 98 Specifications Effluent Duplex FM530
Download Zoeller Model 98 Specifications Effluent Simplex FM0531
