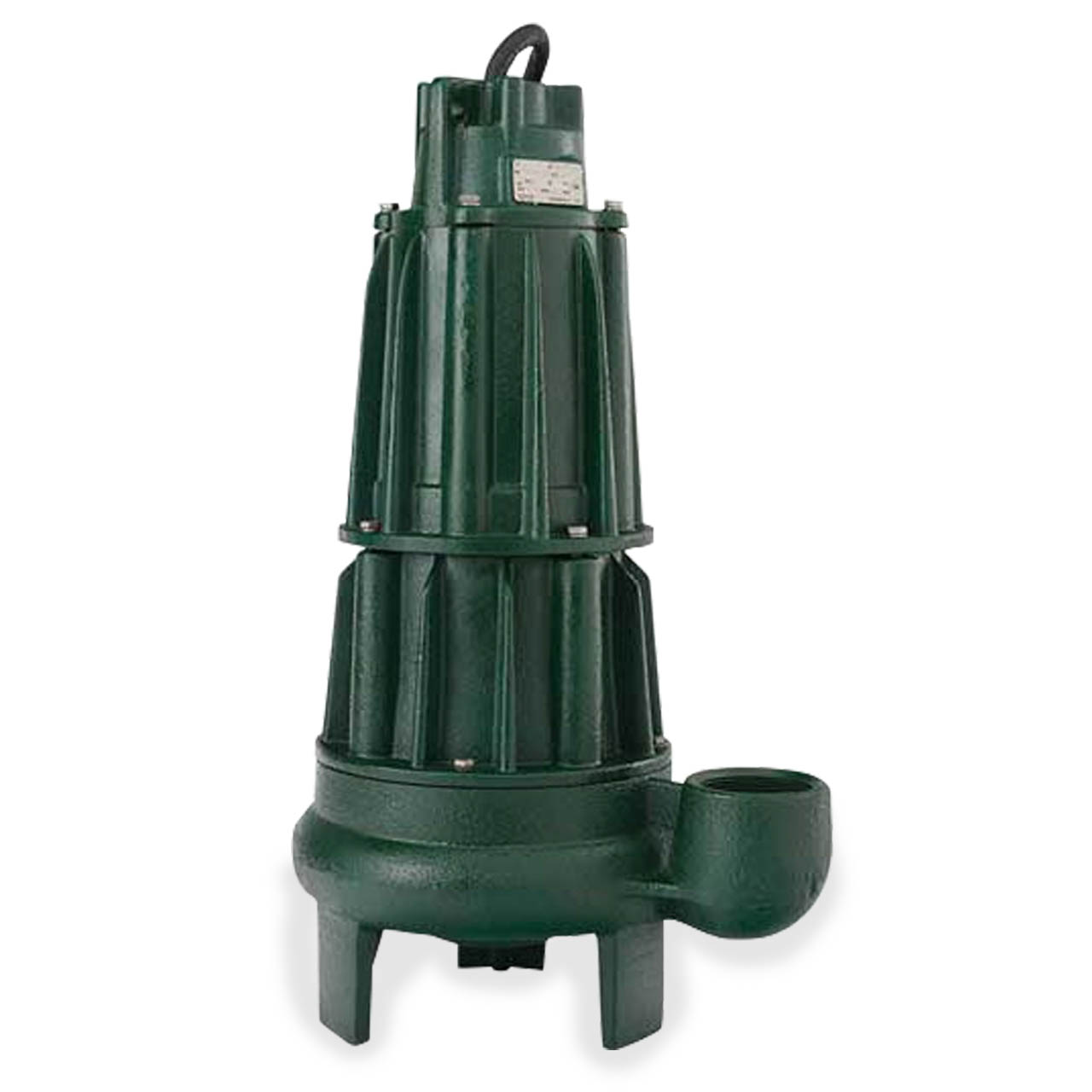

Zoeller 641-0004 Model E641 Sewage Waste Dewatering Non-Clog Pump 3.0 HP 230V 1PH 25' Cord Vertical Discharge
Zoeller 641-0004 Model E641 Sewage Waste Dewatering Non-Clog Pump 3.0 HP 230V 1PH 25' Cord Vertical Discharge
SKU : ZLR641-0004
In Stock Quantity:0
:
Brand
:
Regular price
$5,752.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller E641 Series Sewage & Dewatering Pump Description
The "Sewage-Waste" series of submersible pumps is designed for use in commercial dewatering and wastewater applications and can be used to transfer wastewater or unscreened raw sewage. The semi-open reversing impeller design reduces the risk of clogging and allows each pump to pass a 2½" (63mm) spherical solid. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion, and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feture in every pump of this series, making it one of the most reliable in the industry.
Zoeller E641 Series Sewage & Dewatering Pump Features and Benefits
- Class 30 Cast Iron Construction
- All Units are Double Seal for Extra Motor Protection
- Corrosion Resistant Powder Coated Epoxy Finish
- Stainless Steel Screws, Washers, Tag and Seal Assembly
- 1Ph - Capacitor Start, Capacitor Run
- Oil Filled, Hermetically Sealed Motor with Heavy Duty Finned Motor Housing for Added Heat Dissipation
- Continuous Duty Operation in Submerged Conditions
- Maximum Temperature for Sewage or Dewatering: 104°F (40°C) with 1.2 Service Factor
- 416 Stainless Steel Motor Shaft
- Stainless Steel Fitted Tandem Shaft Seals, Carbon Ceramic Seal Faces
- 3” NPT Vertical Discharge
- Control Panels with Overload Protection Available
- Non-Automatic for Variable Level Control Systems
- Start Cap Pack 10-0915 Required
Specifications
Specifications
Zoeller 641-0004 Sewage & Dewatering Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 3.0 HP
- AMP DRAW (full load): 17.0
- MOTOR TYPE: Capacitor Start, Capacitor Run
- RPM: 1750
- MAXIMUM HEAD: 43'
- MAXIMUM CAPACITY: 460 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 3" NPT Vertical Discharge
- MAXIMUM SOLIDS HANDLING SIZE: 2-1/2" Spherical Solid
- IMPELLER TYPE: Ductile Iron, Semi-Open
- CORD LENGTH: 25' Type UL Listed, 3-Wire Cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40C)
- DUTY RATING: Continuous
Zoeller Model E641 Performance Curve
