Zoeller 508-0007 AquaNot® Spin 508/M98 ProPak Battery Backup System 12VDC

Zoeller 508-0007 AquaNot® Spin 508/M98 ProPak Battery Backup System 12VDC

Usually ships within 3 weeks

SKU : ZLR508-0007

In Stock Quantity:0

:
Brand : Zoeller
$924.75 USD
Shipping calculated at checkout.

Description


Zoeller AquaNot® Spin 508/98 ProPak Backup Pump System Description

Our AquaNot® Spin 508 ProPak with an M98 is a complete system for basement sump applications. The system is designed to provide premium protection in basement sump applications at a mid-level price.

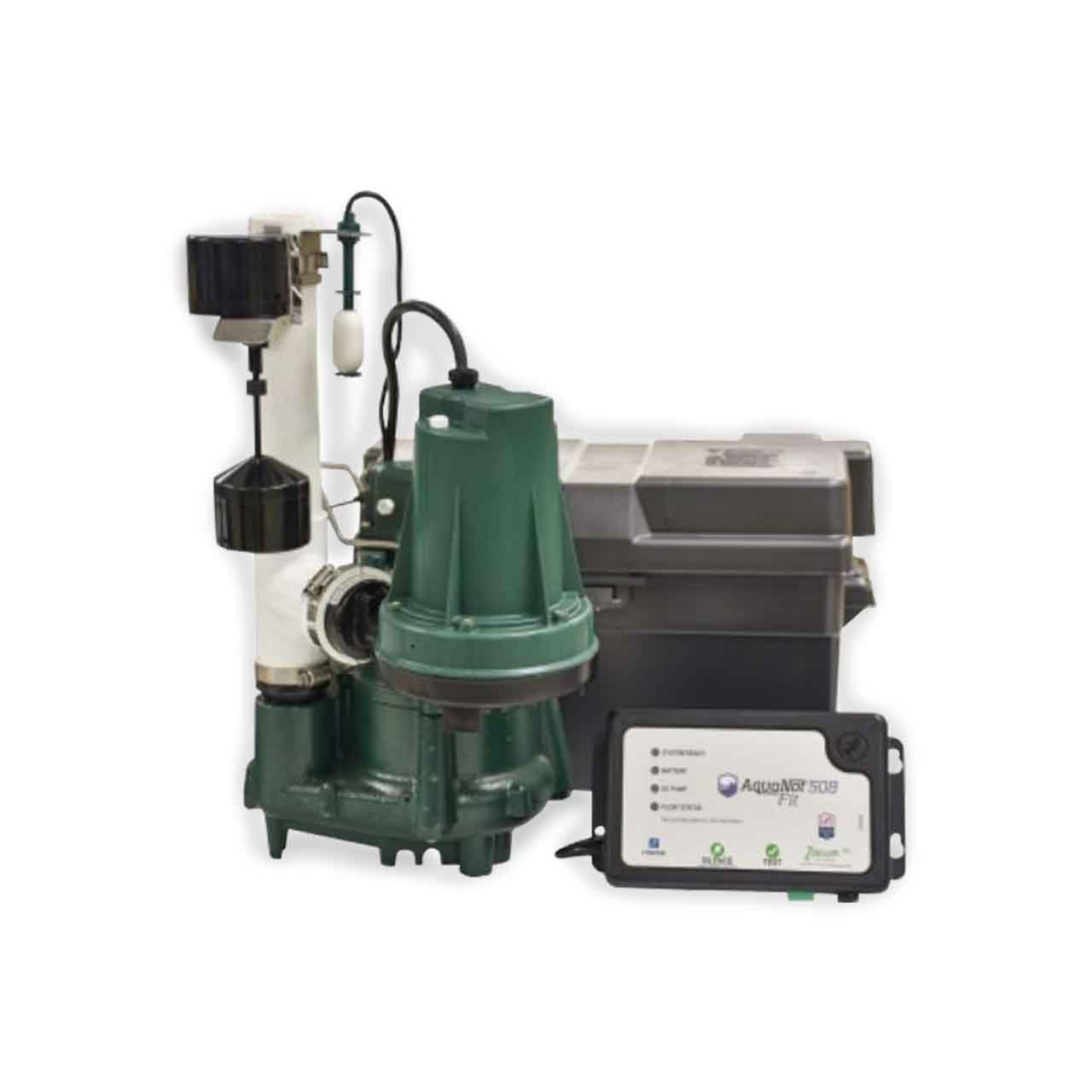

The AquaNot Spin 508 Propak includes two pumps, battery box, controller, check valve and pipe. The primary pump is the 1/2 HP Model 98. The backup pump is the Model 508. In a high-water flow event, the 12 volt battery-powered Model 58 is designed to provide backup support to the Model 98.

In the event of a power outage, the Model 508 will take over. The system is self-monitoring and provides alert conditions for occurrences such as a power outage, high water condition, a switch obstruction and more.

The AquaNot Spin 508 can provide six hours of continuous pump run time. This equates to two days of backup sump pump protection for most homes. For added redundancy, this system is equipped with connections for a second pump run float.

The AquaNot Spin 508, you can be 100% confident in your flood prevention protection. For added peace of mind, the AquaNot Spin 508 ProPak is 100% Factory Tested.

Zoeller AquaNot® Spin 508/M98 ProPak Backup Pump System Features and Benefit

  • Includes the 1/2 HP Model M98 Primary Pump Which Comes Standard with the Zoeller LED Plug that Allows you to Check for Power at a Quick Glance
  • A Self-Testing 12 V DC Backup Sump Pump for Basement Sump Applications
  • Provides Backup Support to a Primary Sump Pump when the Primary Pump is Unable to Keep up With the Water Flow or During a Power Outage
  • 24/7 Backup Support for Your Primary Sump Pump
  • A Preassembled System of 2 Pumps, Floats and a Controller Designed to Work Together in a Reliable and Efficient Manner
  • Engineered, Glass-Filled Thermoplastic Vortex Impellers
  • Lockable Battery Box, Battery Sold Separate
  • 100% Factory Tested Primary Sump Pump and Battery Backup Sump Pump
  • 3-Year Limited Warranty: This Model Comes with Warranty Coverage from Zoeller Pump Company, Giving you Extra Protection and More Peace of Mind
  • Included In Spin Package
    • 508 Double-Sealed DC Pump
    • AquaNot® Spin Controller
    • Vertical Operational Switch
    • Battery Box
    • Fittings and Misc.
  • PROPAK SYSTEM INCLUDES: Model 98 Primary Pump and Pre-Piped Assembly

Specifications

Zoeller Model M98 Sump & Effluent Pump Specifications

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 9.4
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1725
  • MAXIMUM HEAD: 23'
  • MAXIMUM CAPACITY: 72 GPM
  • SWITCH TYPE: 2-Pole Mechanical Switch
  • SWITCH 'ON' LEVEL: 9 1/2"
  • SWITCH 'OFF' LEVEL: 3"
  • DISCHARGE SIZE: 1-1/2" NPT
  • SOLIDS HANDLING: 1/2" Spherical Solid
  • IMPELLER TYPE: Engineered Plastic, Non-Clogging Vortex
  • CORD LENGTH: 15' Type UL Listed
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Zoeller AquaNot® Spin 508/M98 ProPak Backup Pump System Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Zoeller AquaNot® Spin 508/98 ProPak Backup Pump System Product Resources


Download Zoeller AquaNot® 508 Spin Backup Sump System Sale Sheet FM3215

Download Zoeller AquaNot® 508 Spin Backup Sump System Technical Data Sheet FM3165

Download Zoeller AquaNot® 508 Spin Backup Sump Installation Instructions FM3166

Download Zoeller Battery Handling Maintenance FM2484
