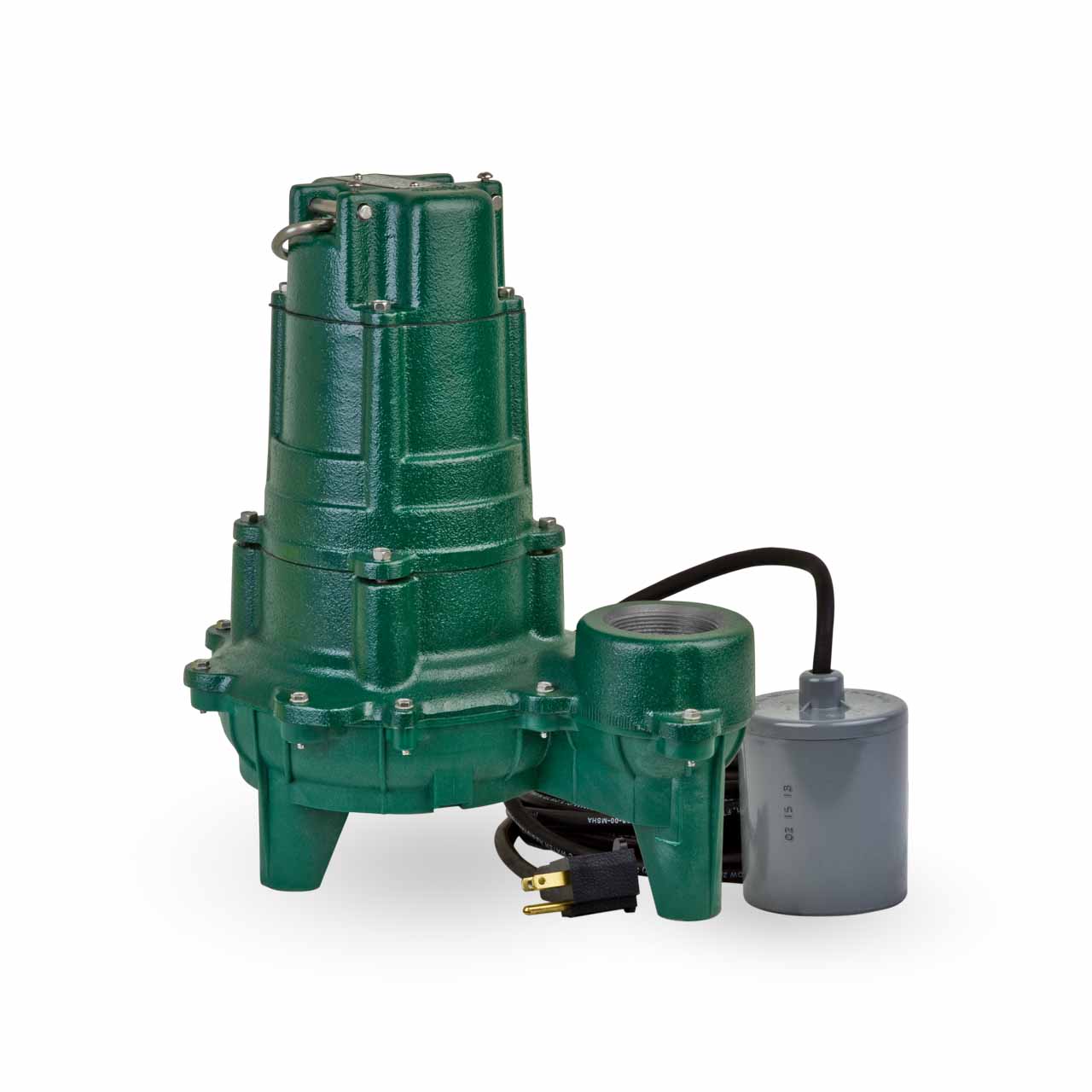

Zoeller 270-0005 Model BN270 Sewage Pump 1.0 HP 115V 1PH 20' Cord Automatic
Zoeller 270-0005 Model BN270 Sewage Pump 1.0 HP 115V 1PH 20' Cord Automatic
SKU : ZLR270-0005
In Stock Quantity:1
:
Brand
:
Regular price
$742.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model 270 Sewage Pump Description
Our Model BN270 Sewage Pump is designed to remove raw sewage or effluent in residential sewage or septic system applications. The professional-grade, 1 HP Model 270 is known for its dependability. The BN270 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 270’s switch case, motor housing, and pump housing are each constructed of cast iron. The pump’s identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 270 is able to withstand the demands of residential sewage ejector applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Zoeller Model 270 Sewage Pump Features and Benefits
- Oil-Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation Which Prevents the Pump frorm Overheating
- Nonautomatic Pump with Piggyback Variable Level Float Switch Which Allows you to Adjust the On/Off Level for Optimal Runtime
- Corrosion Resistant Engineered Plastic Vortex Impeller to Allow Free Passage of 2" Spherical Solids which Prevents Clogging and Increases Reliability
- The Single Piggyback Float Switch Turns a Nonautomatic Pump into and Automatic Pump and Also Allows You to Isolate the Pump from the Switch Making it Easier to Troubleshoot Issues in the Field
- Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
- Stainless Steel Screws, Handle and Piggyback Switch Pipe Clamp to Prevent Rust and Corrosion
- 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure that it Performs as Expected When you Receive it
- Comes with a 1-Year Limited Warranty Giving you Protection Over Your Investment and the Peace of Mind you Expect in a Quality Product
Specifications
Specifications
Zoeller 270-0005 Sewage Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 1.0 HP
- AMPS: 15.0
- MOTOR TYPE: Permanent Split Capacitor
- RPM: 3450 RPM
- MAX HEAD: 29'
- MAX FLOW RATE: 132 GPM
- DISCHARGE SIZE: 2" NPT
- SOLIDS HANDLING: 2" Spherical Solid
- IMPELLER TYPE: Engineered Plastic w/ Metal Insert, Non-Clogging Vortex
- CORD LENGTH: 20' Power Cord and 20' Cord on VLFS
- CORD TYPE: UL Listed 3-Wire Neoprene Cord and Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model 270 Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 270 Sewage Pump Product Resources
Download Zoeller Model 270 Sewage Pump Catalog Sheet 60Hz FM1921
Download Zoeller Model 270 Sewage Pump Technical Sheet FM2790
Download Zoeller Model 270 Sewage Pump Parts List FM1427
Download Zoeller Sewage Pump Installation Instructions, 1 - year warranty FM0447
