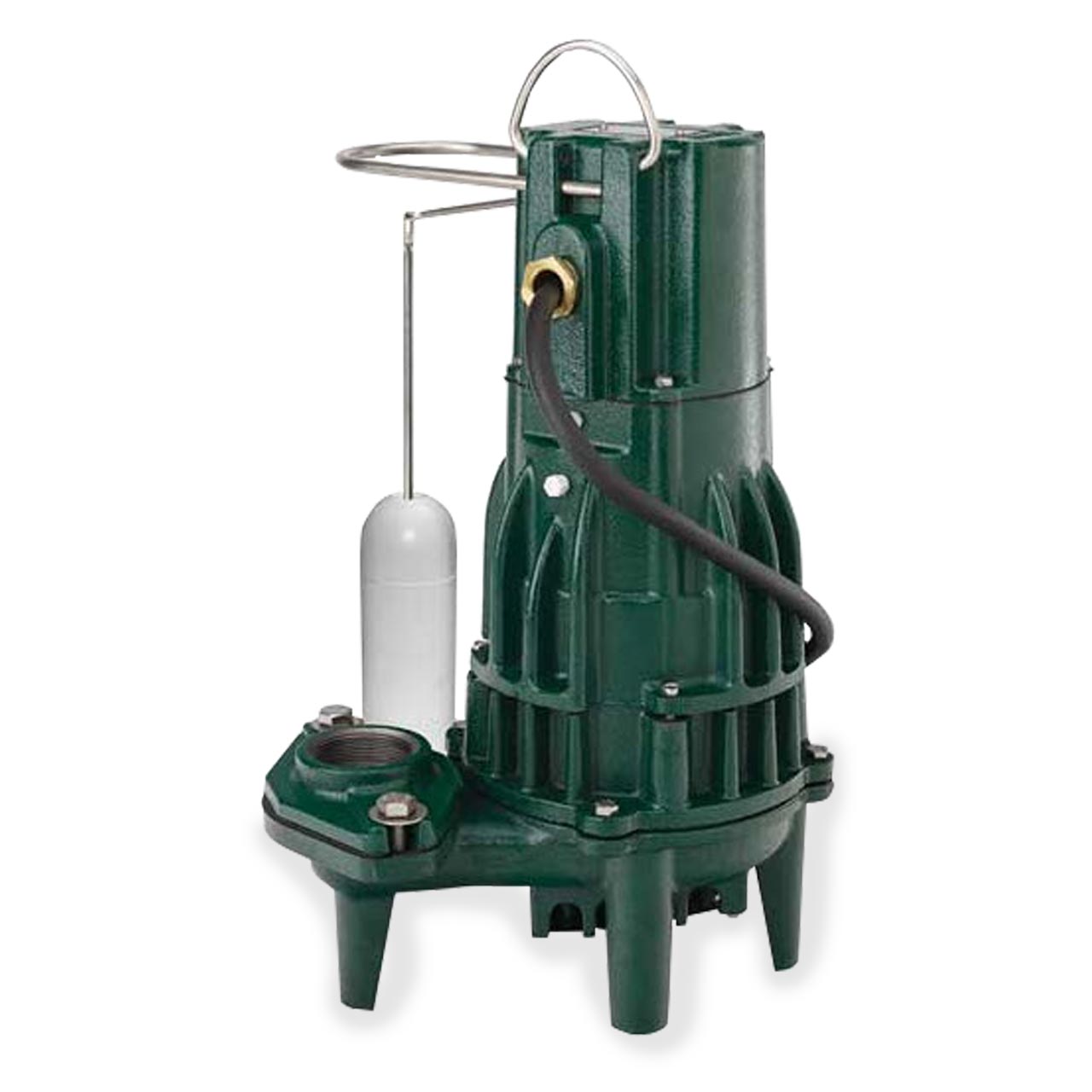

Zoeller 161-0001 Model M161 High Head Effluent Pump 0.5 HP 115V 1PH 20' Cord Automatic
Zoeller 161-0001 Model M161 High Head Effluent Pump 0.5 HP 115V 1PH 20' Cord Automatic
SKU : BCZLR161-0001
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Not Available - Zoeller 161-0001 Model M161 High Head Effluent Pump 0.5 HP 115V 1PH 20
Zoeller Model M161 High Head Effluent Pump Description
"Flow-Mate" submersible pump for dewatering or effluent applications
Zoeller Model M161 High Head Effluent Pump Features and Benefits
- Durable Cast Iron Constructed Switch Case, Base, Motor and Pump Housing
- Impeller, Bronze Class 85-5-5-5
- Corrosion-Resistant, Powder Coated Epoxy Finish
- Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected Motor
- Maximum Temperature for Effluent or Dewatering 130° F (54° C) (ED 140°F, 60°C)
- Stainless Steel Screws, Bolts, Float Rod, Handle, Guard, Arm and Seal Assembly
- 1 ½” NPT Discharge with 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available, Specify when Ordering
- Available with Float Operated, Submersible (NEMA 6) 2 Pole Mechanical Switch
- On: Point 14 ¾” (37.5 cm)
- Off: Point 5” (12.7 cm)
Specifications
Specifications
Zoeller Model M161 High Head Effluent Pump Specifications
- HORSEPOWER: 0.5 HP
- VOLTAGE: 115 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- AMPS: 15.0
- SOLIDS HANDLING: 3/4" Spherical Solid
- DISCHARGE PIPE SIZE: 1-1/2" NPT Vertical Discharge
- CORD LENGTH: 20'
- MAXIMUM OPERATING TEMPERATURE: 130 °F (54 °C)
- MAX HEAD: 57'
- MAX FLOW RATE: 100 GPM
- IMPELLER TYPE: Non-Clogging Vortex
Zoeller Model M161 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 160 Product Resources
Download Zoeller Model 160 Catalog Sheet FM0460 Ea
Download Zoeller Model 160 Technical Sheet: High Head Flow-Mate 161/4161,163/4163,165/4165 FM2785
Download Zoeller Model 160 Installation Instructions- 1 Year Warranty FM0447
Download Zoeller Model 161 Parts List FM0668
