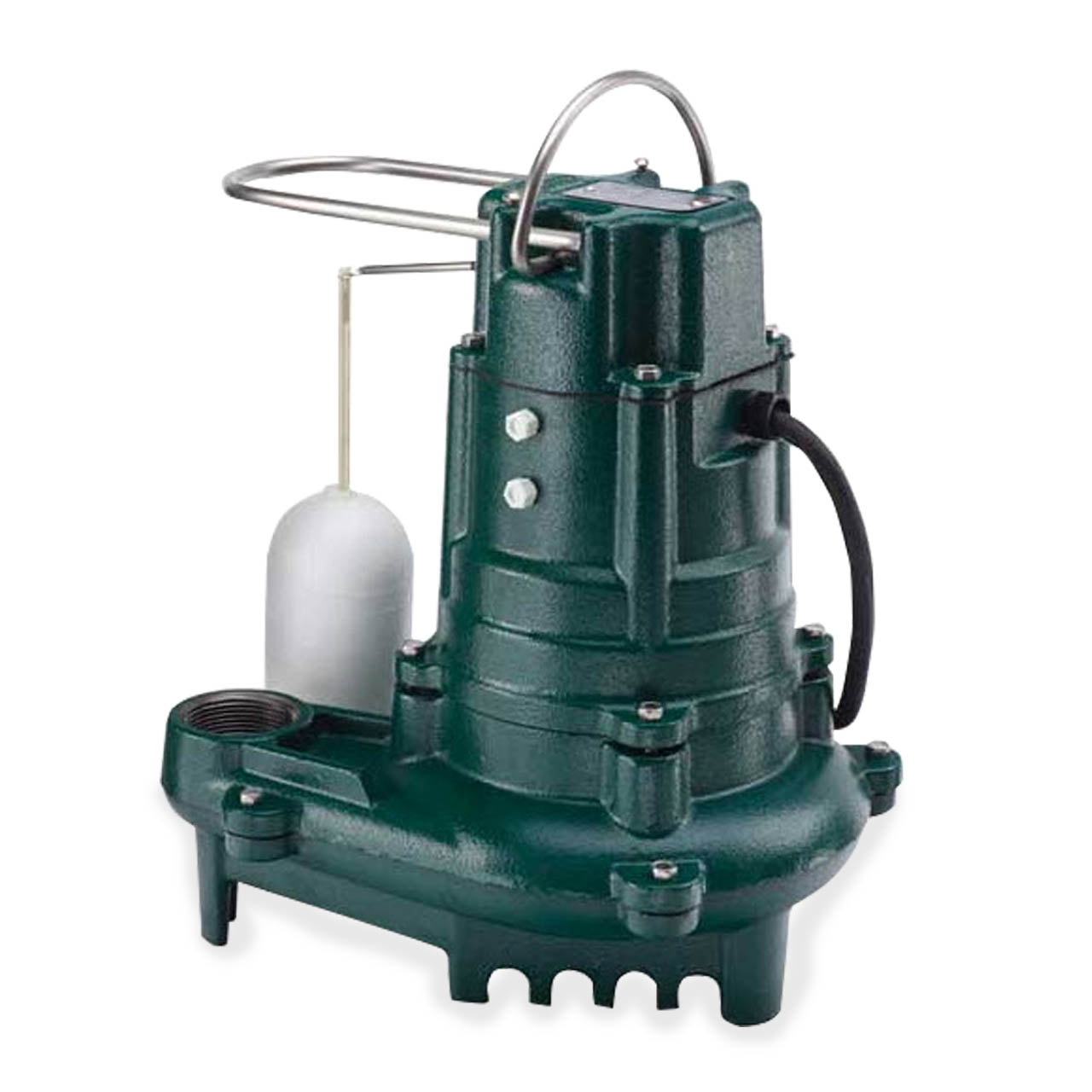

Zoeller 139-0029 Model D139 Bronze Sump & Effluent Pump 0.5 HP 230V 1PH 25' Cord Automatic

Zoeller 139-0029 Model D139 Bronze Sump & Effluent Pump 0.5 HP 230V 1PH 25' Cord Automatic

Usually ships within 3 weeks

SKU : ZLR139-0029

In Stock Quantity:0

:
Brand : Zoeller
$4,206.00 USD
Shipping calculated at checkout.

Description


Zoeller Model D139 Sump & Effluent Pump Description

The Flow-Mate series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.

Zoeller Model D139 Sump & Effluent Pump Features and Benefits

  • Castings - All Bronze.
  • Corrosion-Resistant, Powder Coated Epoxy Finish
  • Durable, Cast Iron Construction - Switch Case Motor and Pump Housing, Base and Impeller
  • Float-Operated, 2-Pole Mechanical Switch
  • No Sheet Metal Parts to Rust or Corrode
  • Oil-Filled and Hermetically-Sealed, Automatic Reset Thermal Overload Protected Motor
  • Maximum Temperature for Effluent or Dewatering: 130°F (54°C)
  • Passes 5/8" (16 mm) Spherical Solids
  • 1-1/2” NPT Discharge
  • On Point: 10” (25.4 cm)
  • Off Point: 2-3/4” (7 cm)

Specifications

Zoeller Model D139 Sump & Effluent Pump Specifications

  • VOLTAGE: 1ø, 230V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 10.7
  • MOTOR TYPE: Split phase or 3 phase
  • RPM: 1750 RPM
  • MAX HEAD: 26'
  • MAX FLOW RATE: 93 GPM
  • SWITCH TYPE: Automatic
  • SWITCH 'ON' LEVEL: 10"
  • SWITCH 'OFF' LEVEL: 2 3/4"
  • DISCHARGE SIZE: 1 1/2" NPT
  • SOLIDS HANDLING: 5/8" Spherical Solid
  • IMPELLER TYPE: Bronze, Non-Clogging Vortex
  • CORD LENGTH: 25'
  • BODY CONSTRUCTION: Bronze
  • MAXIMUM OPERATING TEMPERATURE: 130°F (54C)

Zoeller Model D139 Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Zoeller Model D139 Product Resources


Download Zoeller Model 130 Catalog Sheet FM0411

Download Zoeller Technical Data Sheet FM2782

Download Zoeller Model 130 Installation Instructions FM0447

Download Zoeller Model 139 Parts List FM0434

Download Zoeller Specifications Effluent Duplex FM0530

Download Zoeller Specifications Effluent Simplex FM0531

Download Zoeller Long Cycle Kit - Model 10-0001
