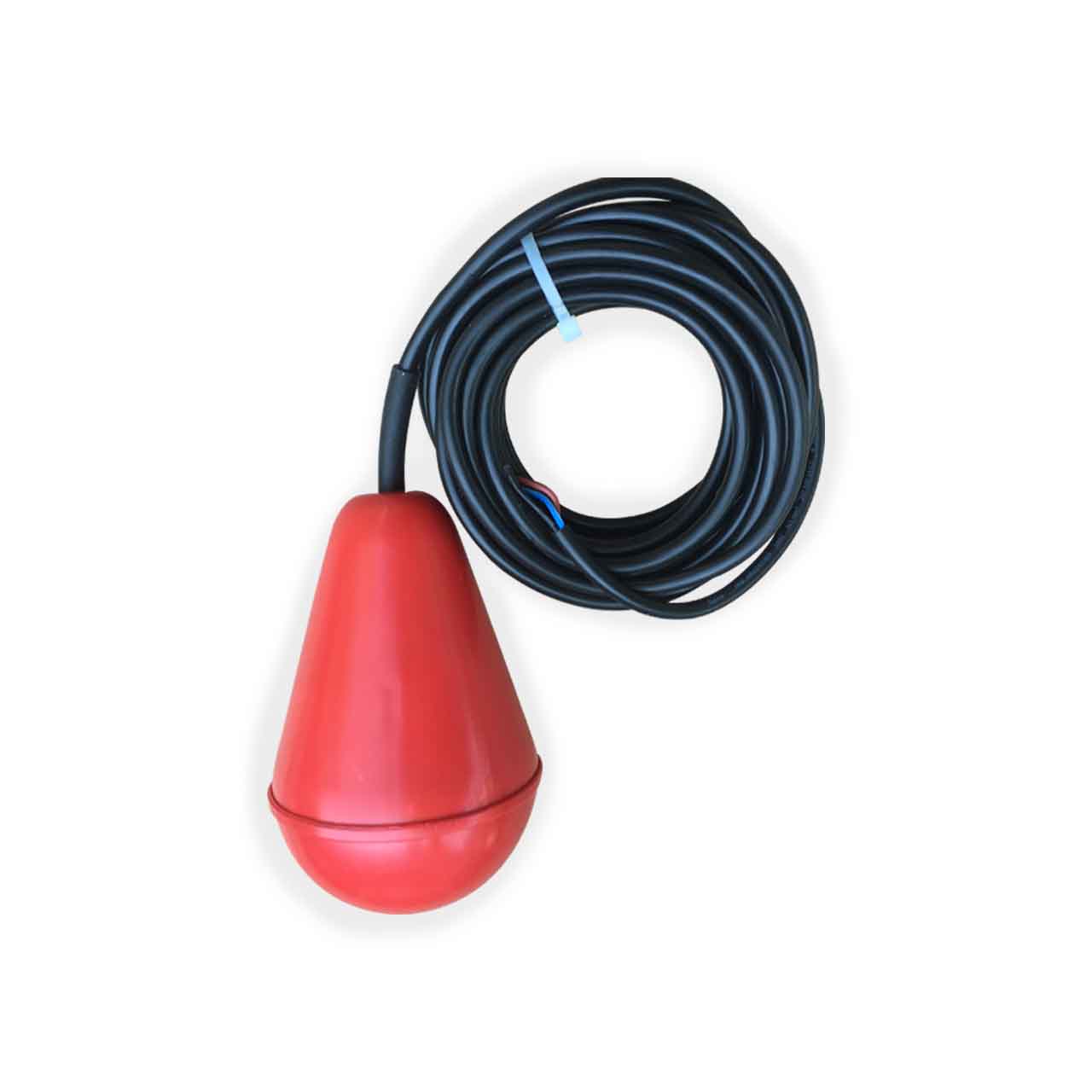

Sump Alarm "Sludge Boss" Heavy Duty Float Switch for Suspended Solids

The SludgeBoss Heavy Duty Float Switch for use with sewage, suspended solids and viscous liquids.

The SludgeBoss is the float switch for extra nasty locations where there is sewage and suspended solids. This heavy duty float switch has an integrated concrete counterweight ensuring its orientation even if held below floating materials.

• Self Orienting, No Tether or Cable Weight Required
• Directly Controls Pumps up to 1/2 HP at 120 Volts or 220 Volts
• Up to 12 Amperes Continuous or 13.3 Non Continuous AC Amperage
• 12 VDC Motor Loads up to 13.3 Amps
• Environmental Friendly (Mercury Free)
• Suitable for Use in Septic, Sump and Potable Water Applications
• Built with a Honeywell Micro Switch, Rated for 100,000 Operations
• Cable is Coated with PVC / Thermoplastic Jacket
• Internally Contains a Stainless Steel Ball
• Five Year Field Warranty
• Constructed with Non-Toxic Polypropylene
• Float Dimensions are 4" Diameter and 6" Length, 2 lbs.
• Rated for Indoor and Outdoor Use: Operating Temperatures 32 to 140F (0 to 60C)
• CE Marked, IP68 Rated, Tested to IEC 60730-1 (08-2003) + IEC 60730-2-16 (08-2001)
