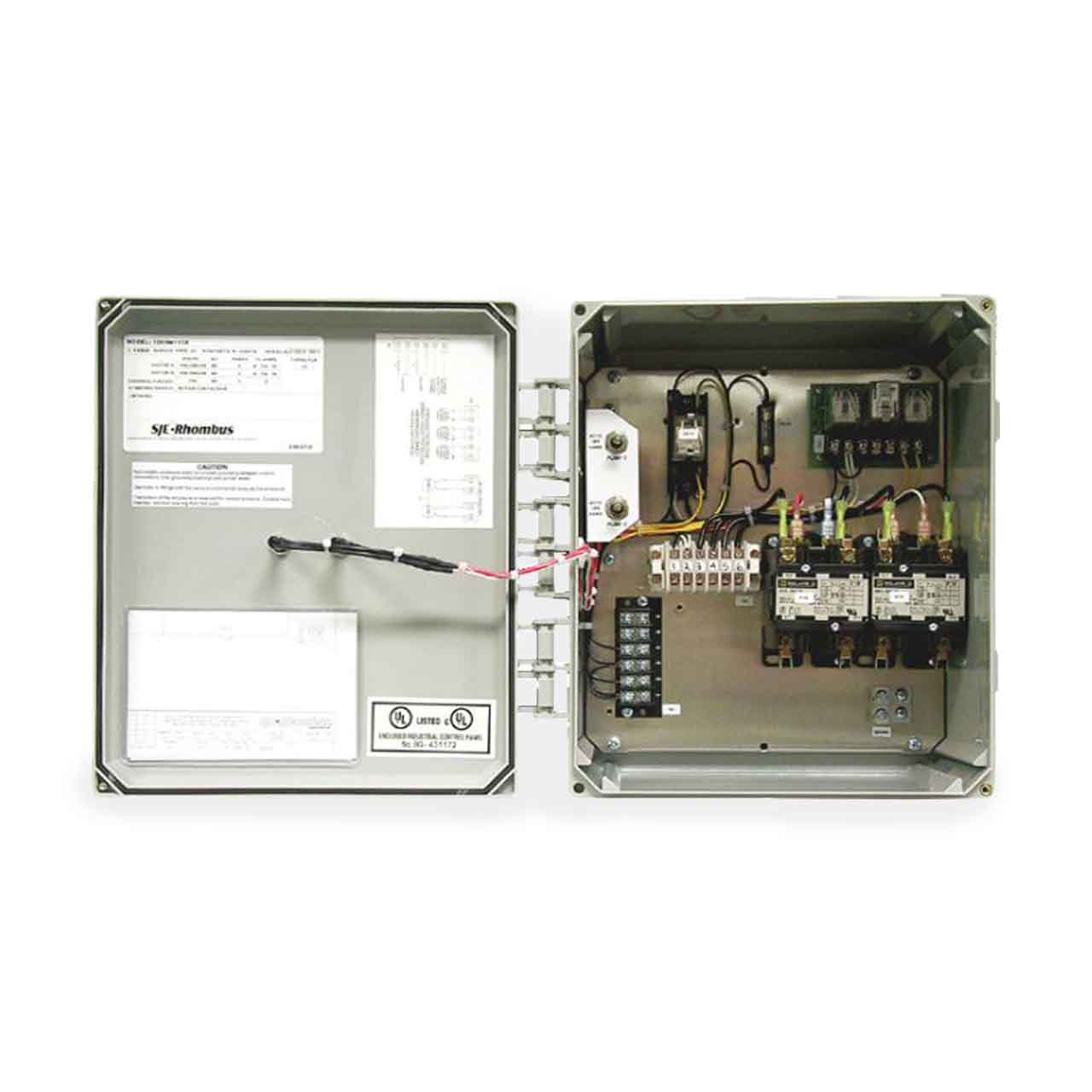

SJE-Rhombus Model 126 Duplex Alternating Single Phase Water Well Pump Control Panel

SJE-Rhombus Model 126 Duplex Alternating Single Phase Water Well Pump Control Panel

Usually ships within 4 days

SKU : CP-SJE126

In Stock Quantity:0

:
Brand : SJE Rhombus
Shipping calculated at checkout.

Description


SJE-Rhombus Model 126 Single Phase Duplex Alternating Water Well Pump Control Description

The Model 126 duplex sump pump control panel is designed to alternately control two 120/208/240V single phase pumps in water well installations.

The alternating action provides alternation between two wells. In addition, this duplex alternating pump controller system provides override control to maintain system pressure upon high demand or should either pump fail.

Common applications include pump chambers, sump pump basins, irrigation systems and lift stations.

SJE-Rhombus Model 126 - Single Phase Duplex Alternating Water Well Pump Control Features

  • Choice of NEMA 1 (indoor) or NEMA 4X (indoor/outdoor) Enclosure
  • Magnetic Motor Contactors Control Pumps by Switching Electrical Lines
  • Hand/Off/Auto (HOA) Switches for Manual Pump Control
  • Alternating Circuit Board (patented) Provides Pump Control and Alternation
  • Green Pump Run Indicator Lights
  • Field Wiring Label
  • Incoming Pump Power/Control Power Terminal Block
  • Pressure Switch Terminal Block
  • Control Power/Pressure Switch Terminal Block
  • Control Fuse
  • Control Relay Provides Lag Function
  • Ground Lugs
  • UL/cUL Listed
  • Five-Year Limited Warranty

Specifications

SJE-Rhombus Model 126 - Single Phase Water Well Duplex Pump Control Panel Specifications

  1. Enclosure:
    • Model 1260I000X: Measures 10 x 8 x 4 inches Choice of NEMA 1 (steel for indoor use) or NEMA 4X (ultarviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use).
    • Model 1260I120X: Measures 12 x 10 x 6 inches Choice of NEMA 1 (steel for indoor use) or NEMA 4X (ultarviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use).
  2. Magnetic Motor Contactors (Model: 1260I120X) Controls Pump by Switching Electrical Lines.
  3. HOA Switches for Manual Pump Control.
  4. Alternating Circuit Board Provides Pump Control and Alternation (U.S. Patent # 5,909,532).
  5. Green Pump Run Indicator Lights
  6. Field Wiring Label
  7. Incoming Pump Power/Control Power Terminal Block
  8. Pressure Switch Terminal Block
  9. Control Power/Pressure Switch Terminal Block
  10. Control Fuse
  11. Control Relay Provides Lag Function.
  12. Ground Lugs

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

SJE-Rhombus Model 126 - Single Phase Duplex Water Well Pump Control Panel Resources


SJE-Rhombus Model 126 - Single Phase Water Well Duplex Motor Contactor Control Panel Catalog Page

SJE-Rhombus Model 126 - Single Phase Water Well Duplex Motor Contactor Control Panel Installation Instructions
