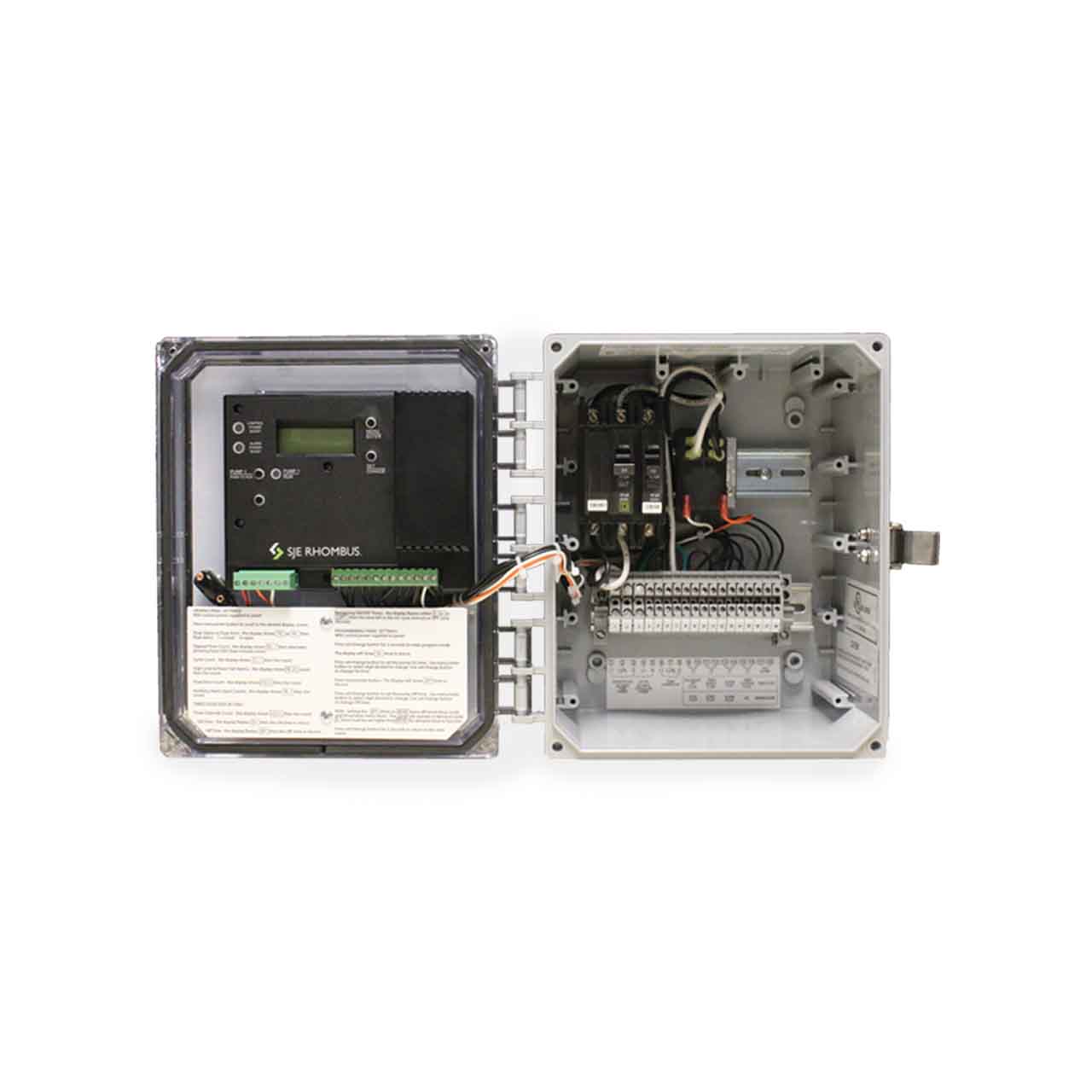

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel

The EZ Series® Single Phase Simplex panel is designed to control one 120/208/240V single phase pump in water and sewage installations. It features a digital backlit LCD display on the inside of the front cover for programming pump control and system monitoring, including: float status, elapsed time pump run, cycle counter, alarm counts (high water/power fail), float error count, auxiliary alarm counter, timer override count (TD only), on/off time (TD only). This innovative control panel is easily converted to demand or timed dose in the field.

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Applications

• Single Phase, Simplex Timed Dose Float Controlled System for Pump Control and System Monitoring
• Septic Tank Pumping
• Sewage Ejector Pumping
• Drainfield Dosing
• Water Reservoir Control

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Features

• NEMA 4X Enclosure Rated for Outdoor Use
• Locking Latch for Added Safety
• Controller Touch Safe Housing
• Digital Backlit LCD Display; 2 Lines,16 Characters Per Line
• Pump Run Button
• Circuit Breaker Provides Control/Alarm Power Disconnect
• Power Relay Controls Pump by Switching Electrical Lines
• Float Connection Terminal Block
• Menu/Enter & Set/Change Buttons for Programming and Viewing Control Panel
• Two Circuit Breakers: One for Pump Power; Another for Control and Alarm Power
• Pump Run Relay (30 amp) Controls Pump by Switching Electrical Lines
• Auxiliary Alarm Contacts
• Large Terminal Strip for Easy Wiring
• OPTIONS:
  • DUO Alarms for Local Code Compliance
  • Optional Mounting Post with Removable Access Door for Easy Wiring
  • Duplex Model Available (demand dose only)

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Specifications

1. Enclosure Base Measures 10 X 8 X 6 inches (25.4 X 20.32 X 15.24 cm). NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use). Includes Locking Latch as Standard.
2. Red Alarm Beacon Provides Visual Check of Alarm Condition.
3. Exterior Alarm Test/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
4. Two Circuit Breakers; One for Pump Power; Another for Control and Alarm Power.
5. Power Relay Controls Pump by Switching Electrical Lines.
6. Float Connection Terminal Block with Auxiliary Alarm Contact
7. Incoming Control/Alarm Power & Pump Power Terminal Block
8. Control Power Indicator Light
9. Alarm Power Indicator Light
10. Pump Run Indicator LIght
11. Simplex Controller (touch safe housing) for Pump Control:
1. Backlit LCD Display Shows System Information Including: Pump Elapsed Time (hh:mm), Pump Events (cycles) and Alarm Condition (counts).
2. Menu/Enter Button Used fro Viewing Panel Settings.
3. Set/Change Button used for Programming Panel Settings
4. Pump Push to Run Momentary Switch - Pump Activates when Pressed.
5. Control and Alarm Power - Shorted Condition Indicators
12. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating). (Located inside panel on cover, not shown)

NOTE: Options, Voltage and Amp Range Selected May Change Enclosure Size and Component Layout

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
