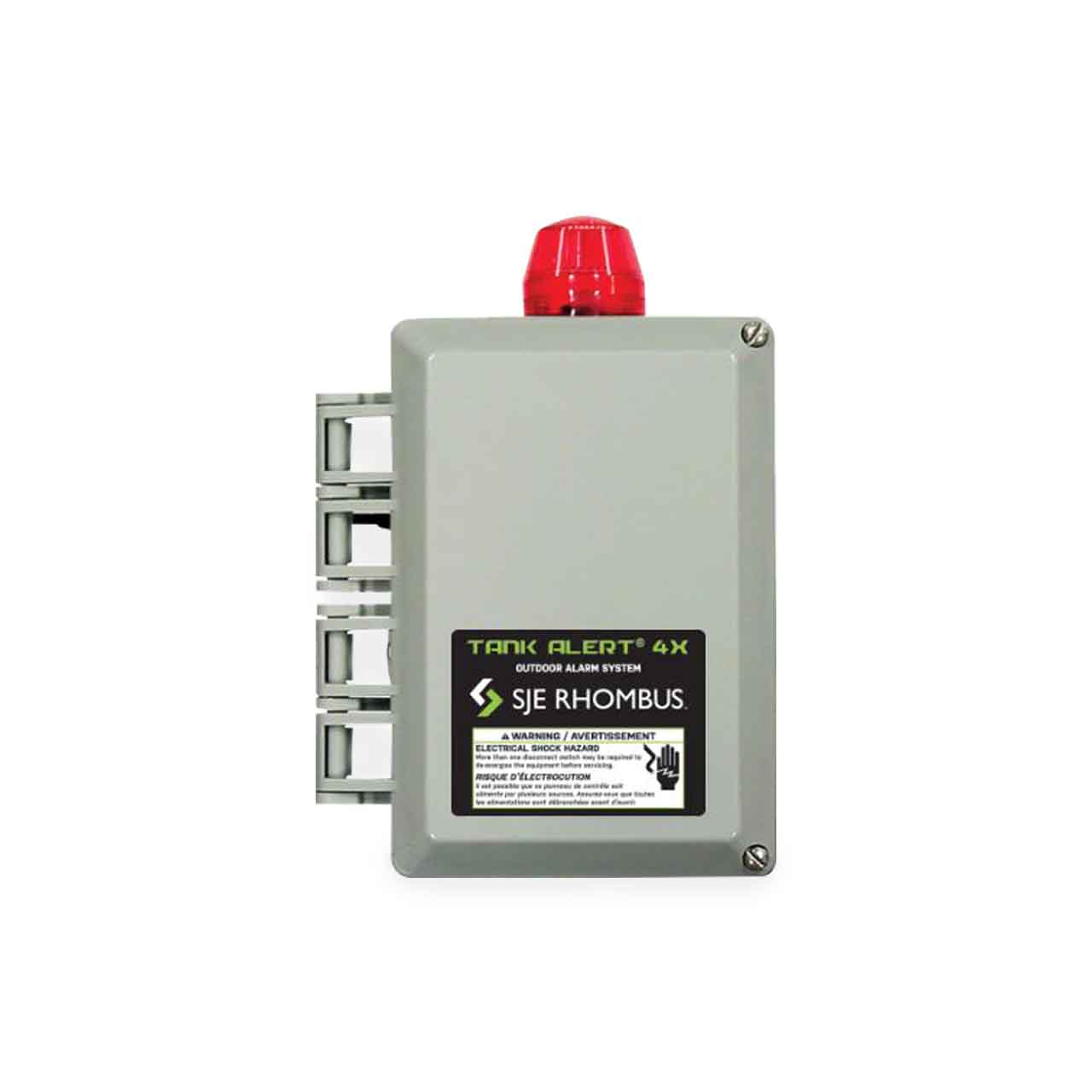

SJE-Rhombus 4X-01X Tank Alert 4X 120 VAC No Float

SJE-Rhombus 4X-01X Tank Alert 4X 120 VAC No Float

Ships within 24 hours

SKU : SJE1008027

In Stock Quantity:1

:
Brand : SJE Rhombus
$414.37 USD
Shipping calculated at checkout.

Description


SJE-Rhombus Tank Alert 4X Alarm System Description

Easy-to-Install Liquid Level Alarm System which has a NEMA 4X enclosure for indoor or outdoor use.

Tank Alert® alarms provide audio/visual warning of potential threatening liquid level conditions.

The Tank Alert® 4X indoor/outdoor alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other non-potable water applications.

If an alarm condition occurs, the stainless steel alarm horn sounds and red beacon activates. The horn can be turned off, but the alarm beacon remains on until the condition is remedied. Once the condition is cleared the alarm will automatically reset.

SJE-Rhombus Tank Alert 4X Alarm System Typical Applications

  • Lift Pump Chambers
  • Sump Pump Basins
  • Holding Tanks
  • Sewage, Agricultural and other Water Applications

SJE-Rhombus Tank Alert 4X Alarm System Features

  • NEMA 4X Enclosure Rated for Indoor or Outdoor Use.
  • Automatic Alarm Reset and Alarm Test/Normal/Silence Switch.
  • Alarm Horn Sounds at 88 Decibels at 10 feet (3 meters)
  • Alarm System (when installed on separate circuit) Operates Even if the Pump Circuit Fails
  • Dual Safety Certification for the United States and Canada
  • Five-Year Limited Warranty

Specifications

SJE-Rhombus Tank Alert 4X Alarm System Specifications

  • VOLTAGE: 120 VAC, 50/60 Hz
  • ALARM ENCLOSURE: 6.4 x 5.3 x 5 inch (16.2 x 13.5 x 13.34 cm), NEMA 4X, Indoor-Outdoor, Weatherproof, UV Stabilized Thermoplastic
  • ALARM HORN: 88 Decibels at 10 feet (3 meters),
  • ALARM BEACON: UL Listed, Type 4X Beacon Assembly.
  • AUXILIARY ALARM CONTACTS (OPTIONAL): 120 VAC, 5 Amps Max, 50/60 Hz
  • MAXIMUM WATER DEPTH: 30 feet (9 meters), 13 psi
  • ELECTRICAL: 5 Amps, 125 VAC/250 VAC, 50/60 Hz

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

SJE-Rhombus Tank Alert 4X Alarm System Product Resources


SJE-Rhombus Tank Alert 4X Alarm System Catalog Page

SJE-Rhombus Tank Alert 4X Alarm System Installation Instructions

SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)

SJE-Rhombus Mercury to Mechanical Float Conversion Chart
