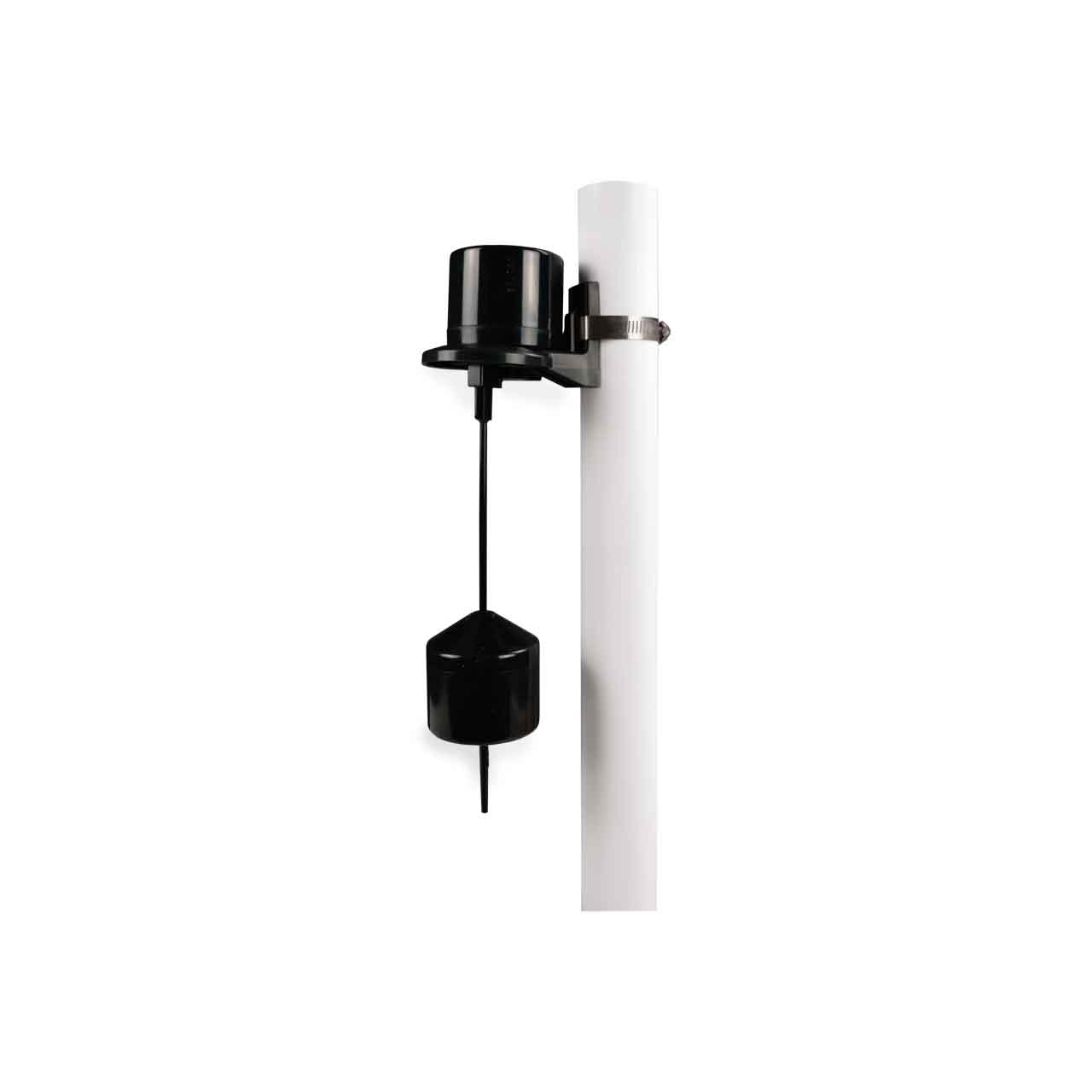

SJE-Rhombus 15VMWOP VerticalMaster Pump Switch 120/230V Pump Down 15' Cord W/O Plug
SJE-Rhombus 15VMWOP VerticalMaster Pump Switch 120/230V Pump Down 15' Cord W/O Plug
SKU : SJE1003777
In Stock Quantity:1
:
Brand
:
Regular price
$82.18 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Mechanically-Activated Switch Designed for Direct Control of Pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.
The SJE VerticalMaster® pump is designed to operate in non-potable water and sewage applications with limited space. It works well in small sump chambers, effluent applications, and laundry trays, as well as in large tanks. UL Recognized; CSA Certified. The SJE VerticalMaster® Pump Switch is not Sensitive to Turbulence. It is available for pump down applications only.
SJE-Rhombus VERTICALMASTER Pump Switch Typical Application
- Effluent and Sewage Pump Operation
SJE-Rhombus VERTICALMASTER Pump Switch Features
- Heavy-Duty Contacts
- Controls Pumps up to ½ HP at 120 VAC and 1 HP at 230 VAC
- Adjustable Pumping Range of .75 to 6.5 Inches (2 to 17 cm)
- UL Recognized for use in Non-Potable Water and Sewage
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus VERTICALMASTER Pump Switch Specifications
- CABLE: Flexible 16 Gauge, 2 Conductor (UL, CSA) SJOW or SJTOW, Water-Resistant (CPE)
- MOUNTING BRACKET: Polypropylene
- LIFT ROD: Injection Molded Acetal Plastic
- FLOAT STOP: Neoprene
- SWITCH AND FLOAT HOUSING: High Impact,
Corrosion Resistant, PVC Housing for Use in
Sewage and Non-Potable Water up to 125°F
(52°C)
- Overall Dimensions: 12" High x 5" x 3" Wide (30.5 cm high x 12.7 cm x 7.6 cm wide)
- Switch Housing Dimensions (excluding cable entrance): 2" High x 2.8" Wide (5 cm high x 7.1 cm wide)
- Float Housing Dimensions: 2.3" High x 2.7" Wide (5.8 cm high x 6.9 cm wide)
- ELECTRICAL: 120 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 60 Amps
- Recommended Pump HP: 1/2 HP or Less
- ELECTRICAL: 230 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 12 Amps
- Maximum Pump Starting Current: 60 Amps
- Recommended Pump HP: 1 HP or Less
- PIGGYBACK PLUG NOT INCLUDED
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
