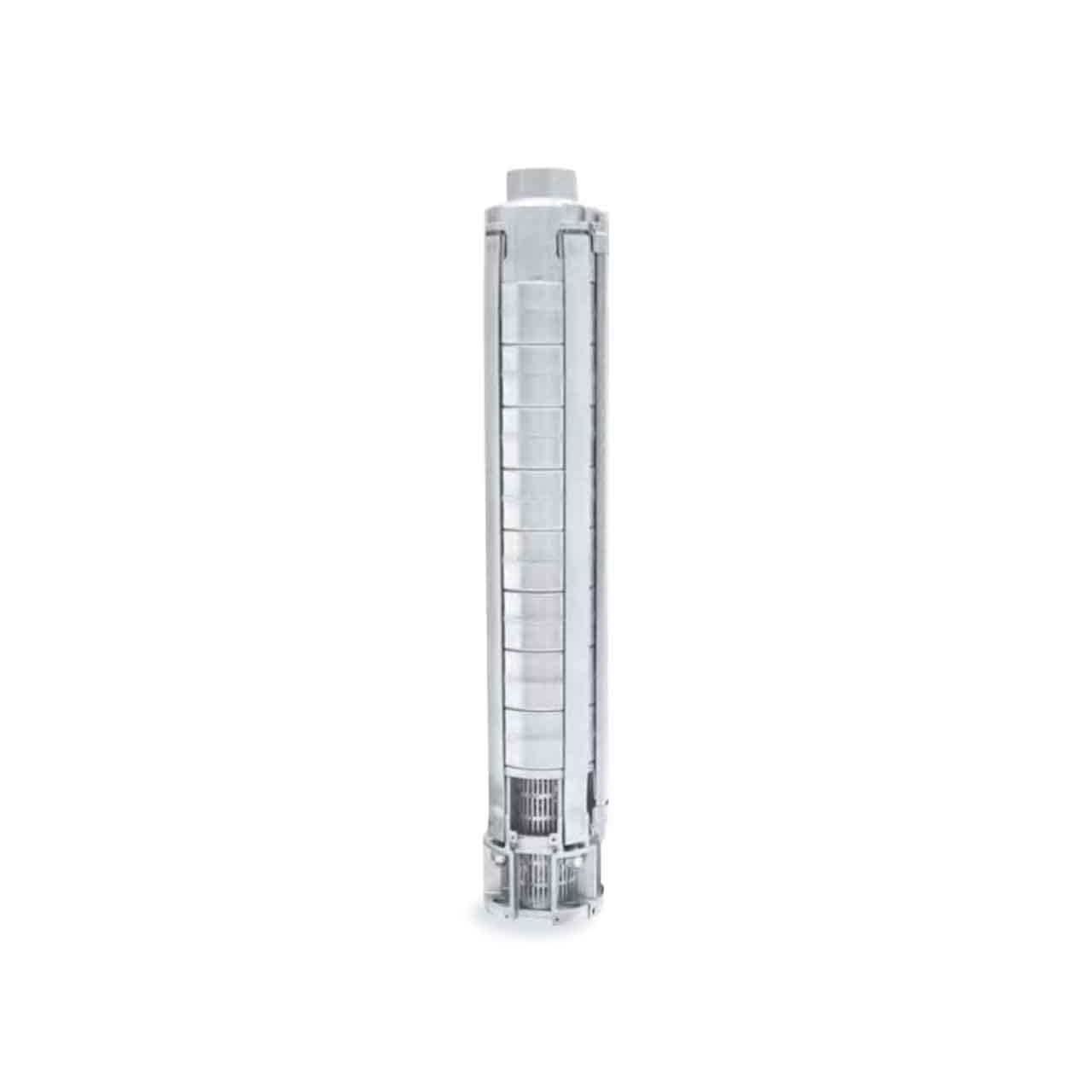

Shakti 6" Submersible Pump End

Shakti submersible water pump is in high demand due to its innovative mechanical design and impeccable quality. It has carved a niche as the most predominant submersible pump and the company is one of the leading suppliers of submersible pumps in India. It is available in all size range starting from 100 mm. Shakti submersible pumps are manufactured from the superlative quality raw material using advanced fabrication technology, which ensure optimum performance and excellent quality.

Pump body is made with anti corrosive material with high wear resistance resulting in reduction in running costs and higher pumping efficiency and longevity. The pump can work continuously for a longer period of time without any trouble. Higher reliability and best results even under harsh conditions make it acceptable to its users.

Shakti 6" Submersible Pump End Application

• Raw Water Supply
• Irrigation Systems
• Groundwater Lowering
• Pressure Boosting
• Industrial Applications

Shakti 6" Submersible Pump End Features

• Wide Range Pump: We Offer Submersible Pumps with Energy - Efficient Duty Points Ranging from 1m3/h to 280/h. The Pump Range Consists of many Pump Sizes and each Pump Size is Available with an Optional Number of Stages to Match any Duty Point.
• High Pump Efficiency: Often Pump Efficiency is a Neglected Factor Compared to the Price Variations and are Without Importance of Pump and Motor Efficiencies.
• Applications: We Offer A Complete Range of Pumps and Motors which as a Standard are made Completely of Stainless Steel AISI-304. This Provides for a Good Wear Resistance and a Reduced Risk of Corrosion when Pumping Ordinary Cold Water with a Minor Content of Chloride.
• Low Installation Costs: Stainless Steel Means Low Weight Facilitating the Handling of Pumps and Resulting in Low Equipment Costs and Reduced Installation and Service Time. In Addition Pumps will be as new After Service Due to the High Wear Resistance of Stainless Steel.
• Bearings with Sand Channels: All Bearings are Water-Lubricated and have a Square Shape, Enabling Sand Particles, if any, to Leave the Pump Together with the Pumped Liquid.
• Inlet Strainer: The Inlet Strainer Prevents Particles Over A Certain Sizer from Entering the Pump.
• Non-Return Valve: All Pumps are Equipped with a Reliable Non-Return Valve in the Valve Casing Preventing Back Flow in Connection with Pump Stoppage. The Short Closing Time of the Non-Return Valve Means that the Risk of Destructive Water Hammer is Reduced to a Minimum. Valve Casing is Designed for Optimum Hydraulic Properties to Minimize the Pressure Loss Across the Valve and thus Contributes to the High Efficiency  of the Pump.
• Priming Screw: All QF and QF 30 Pumps are Fitted with a Priming Screw. Consequently, Dry Running is Prevented Because the Priming Screw will Make Sure that the Pump Bearing are Always Lubricated.
• Stop Ring: The Stop Ring Prevents Damage to the Pump During Transport and in Case of Up-Thrust in Connection with Start-Up.

Shakti QF100-3A 6" Submersible Pump End Specifications

• DISCHARGE SIZE: 3.0” NPT
• NOMINAL FLOW RATING: 300 GPM
• HORSEPOWER: 10 HP
• MAXIMUM CAPACITY: 410 GPM
• MAXIMUM HEAD: 180’
• IMPELER DESIGN: Floating Stack
• IMPELLER MATERIAL: Stainless Steel
• BODY MATERIAL: Stainless Steel

Shakti 6" Submersible Pump End 300 GPM Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Shakti 6" Submersible Pump End Product Resources

Download Shakti 6inch Pump Ends Catalog Pages
