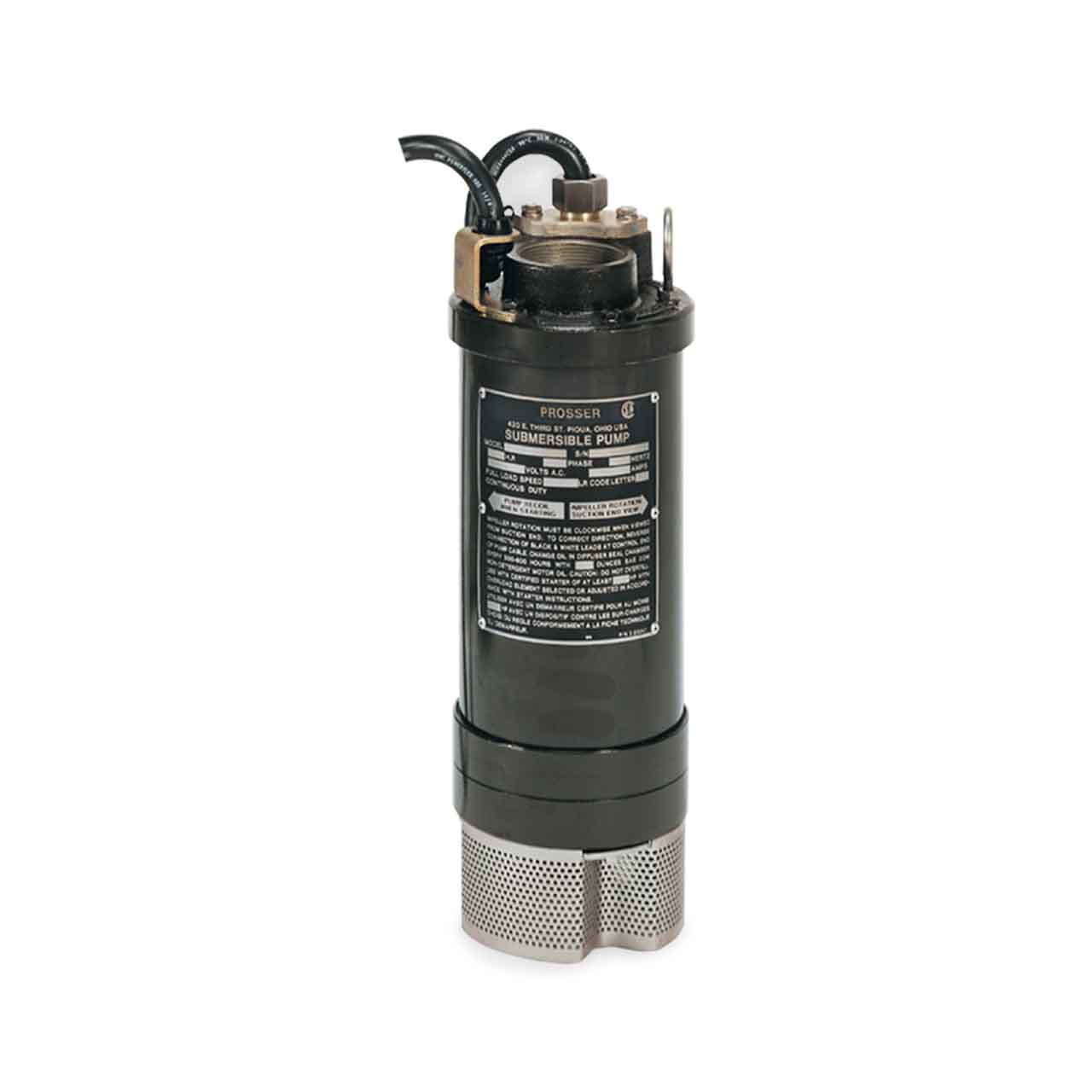

Prosser 9-50132-04 Submersible Dewatering Pump 5.0 HP 230V 3PH 50' Cord w/ Watertight Control Box

Prosser 9-50132-04 Submersible Dewatering Pump 5.0 HP 230V 3PH 50' Cord w/ Watertight Control Box

Usually ships within 5 weeks

SKU : PSR95013204

In Stock Quantity:0

:
Brand : Prosser
$18,426.60 USD
Shipping calculated at checkout.

Description

Prosser Series 9-50000 Dewatering Pump

Prosser's small but powerful Portable Electric Submersible Pumps are compact, lightweight units. They are quiet and will operate in any position. No priming, suction hose or foot valves required. Prosser pumps can be easily staged for higher head applications.

The unique in-line design assures a cool running motor with heat transferred to the pumped liquid. Prosser pumps can operate continuously in 104°F (40°C) temperature water and within a range of 5 to 9PH.

Prosser Series 9-50000 Dewatering Pump Applications

  • Construction
  • Industrial
  • Marine
  • Utilities
  • Municipal and Government
  • Mining
  • Dewatering
  • Drainage Water Transfer
  • Waterscapes
  • Water Treatment
  • Landfill Pollution Control

Prosser Series 9-50000 Dewatering Pump Features and Benefits

  • Slim-Line Design Allows Prosser Pumps to fit where other Pumps can't.
  • Light Weight for Easy Portability.
  • Require no Priming, Suction Hose or Foot Valve. Just Submerge and they are Ready to go.
  • Operate in any Position.
  • Able to Run Dry for a Reasonable Period of Time without Damage.
  • Inline Design Ensures Cool-Running Motor.
  • Inline Suction and Discharge Allow Pumps to Operate Doubling Head at a Given Flow, which Provides Versatility in Jobs Site Variations.
  • Watertight NEMA 4 Control Box Provides Overload and Short Circuit Protection, Start & Run Capacitors. ON-OFF Switch.
  • Upper Bearing is Single Row, Shielded, Ball. Prelubricated High-Temperature Grease. Radial Load.
  • Lower Bearing is Single Row, Shielded, Ball. Prelubricated High-Temperature Grease. Radial & Thrust Load.

Specifications

Prosser 9-50132-04 Submersible Dewatering Pump Specifications

  • BODY CONSTRUCTION: 6063T6 Aluminum, Hard Adonized
  • HORSEPOWER: 5.0 HP
  • VOLTAGE: 230 V
  • PHASE: 3 Ph
  • HERTZ: 60 Hz
  • RPM: 3450 RPM
  • FULL LOAD AMPS: 15.5
  • DISCHARGE PIPE SIZE: 3.0" NPT Female Discharge
  • CORD LENGTH: 50'
  • CORD TYPE: SOW / CORD SIZE: 12/4
  • MOTOR: NEMA Design B - Three Phase
  • CONTROL BOX: Three Phase, Watertight, NEMA 4
  • MAX HEAD: 92'
  • MAX FLOW RATE: 315 GPM

Prosser Series 9-50000 Dewatering Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Prosser Series 9-50000 Dewatering Pump Product Resources


Download Prosser Dewatering Pump Brochure

Download Prosser Series 9-50000 Dewatering Pump Catalog Sheet

Download Prosser Series 9-50000 Dewatering Pump Manual

Download Prosser Dewatering Pump Selection Guide
