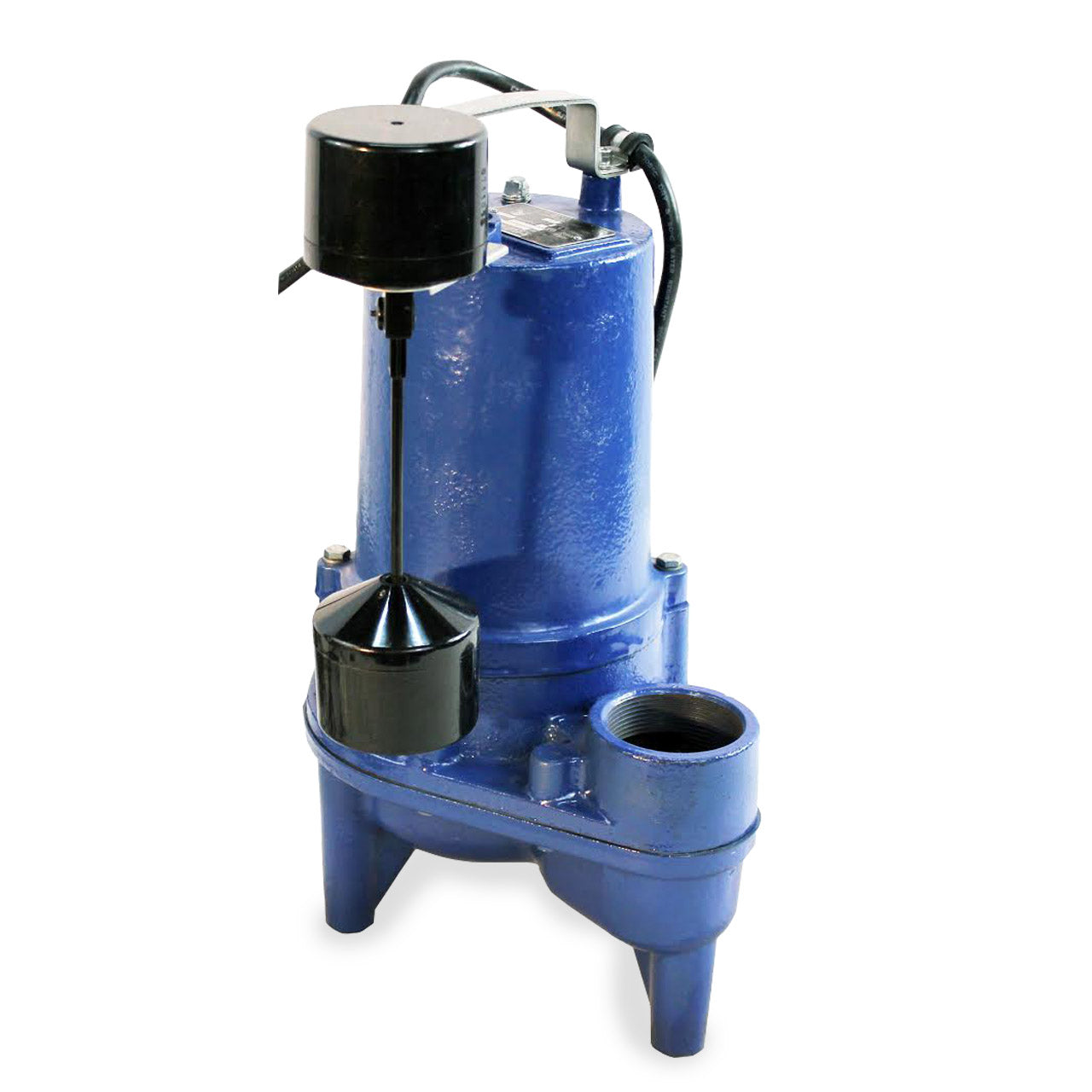

Power-Flo PFV512VF Sewage Pump 0.5 HP 115V 1PH 20' Cord Automatic

Power-Flo PFV512VF Sewage Pump 0.5 HP 115V 1PH 20' Cord Automatic

Usually ships within 3 weeks

SKU : PFPFV512VF

In Stock Quantity:0

:
Brand : Power-Flo
$1,139.33 USD
Shipping calculated at checkout.

Description

Power-Flo PFV512 Series Sewage Pump Description

Submersible sewage pump designed for typical raw sewage and typical septic tank/effluent applications.

Power-Flo PFV512 Series Sewage Pump Typical Application

Septic and Effluent Applications

Power-Flo PFV512 Series Sewage Pump Features

  • DISCHARGE: 2” NPT, Female, Vertical
  • LIQUID TEMPERATURE: 77°F Continuous
  • MOTOR HOUSING/VOLUTE: Cast Iron, Class 30
  • IMPELLER: Multi-Vane, Vortex , Cast Iron, Class 30
  • SHAFT & HARDWARE : Stainless Steel
  • O-RINGS: Buna-N
  • SEAL: : Inboard, Single Mechanical, .50 inch, Oil Filled Reservoir, Carbon/Ceramic/Buna-N with Secondary Exclusion Seal
  • UPPER BEARING: Sleeve, Oil Lubricated
  • LOWER BEARING: Single Row, Ball, Oil Lubricated
  • POWER CORD: 20Ft & 30Ft, SJTW, 16/3 Cord with Plug, Pressure Grommet for Sealing and Strain Relief.
  • MOTOR: Class B Insulation, Oil Filled, Squirrel Cage Induction
  • SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
  • LEVEL CONTROL: Vertical, Mechanical, Normally Open (N/O), 16/2, SJOW, 20Ft Cord with Piggy-Back Plug, P/N: PF512041
  • WARRANTY: 2 Year

Specifications

Power-Flo PFV512VF Specifications

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 10.5
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 3450
  • MAXIMUM HEAD: 22'
  • MAXIMUM CAPACITY: 265 GPM
  • SWITCH TYPE: Vertical Float, 20Ft. Cord with Piggy-Back Plug
  • DISCHARGE PIPE SIZE: 2.0", Female, Vertical
  • MAXIMUM SOLIDS HANDLING SIZE: 2.0"
  • IMPELLER TYPE: Cast Iron, Class 30, Multi-Vane, Vortex
  • CORD LENGTH: 20', Pressure Grommet for Sealing and Strain Relief
  • CORD SIZE: 16/3 Cord with Plug, Type: SJTW
  • BODY CONSTRUCTION: Cast Iron, Class 30
  • MAXIMUM LIQUID TEMPERATURE: 77°F Continuous

Power-Flo PFV512 Series Sewage Pump Performance Curve


Power-Flo PFV512 Series Sewage Pump Model Comparison

PFV512VF Replaces the following units; Barnes model SEV412, SE51, SE511, 2SEV514L, 2SEV512L, PACO model PIP500B, Liberty model LE51A, Little Giant model 10S-CIA-SFS, 10SH-CIA-RFS,145-CIM, Myers model CMV5A-11, WHRAS-11, MWSQ-11P, MWH50-21, WHRHS-11C, Goulds model WS0511B, WS05111BF, WW0511A, Hydromatic model SP50A1, SKV50AW1, SK50A1, SKHS50M1, Dayton model 3BB88, 4HU80, 4HU79, Zoeller model M266, M267, M268, M282, M292


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Power-Flo PFV512 Series Sewage Pump Product Resources


Download Power-Flo PFV512 Series Sewage Pump Catalog Sheet

Download Power-Flo PFV512 Series Sewage Pump Specification Sheet

Download Power-Flo PFV512 Series Sewage Pump Installation Manual
