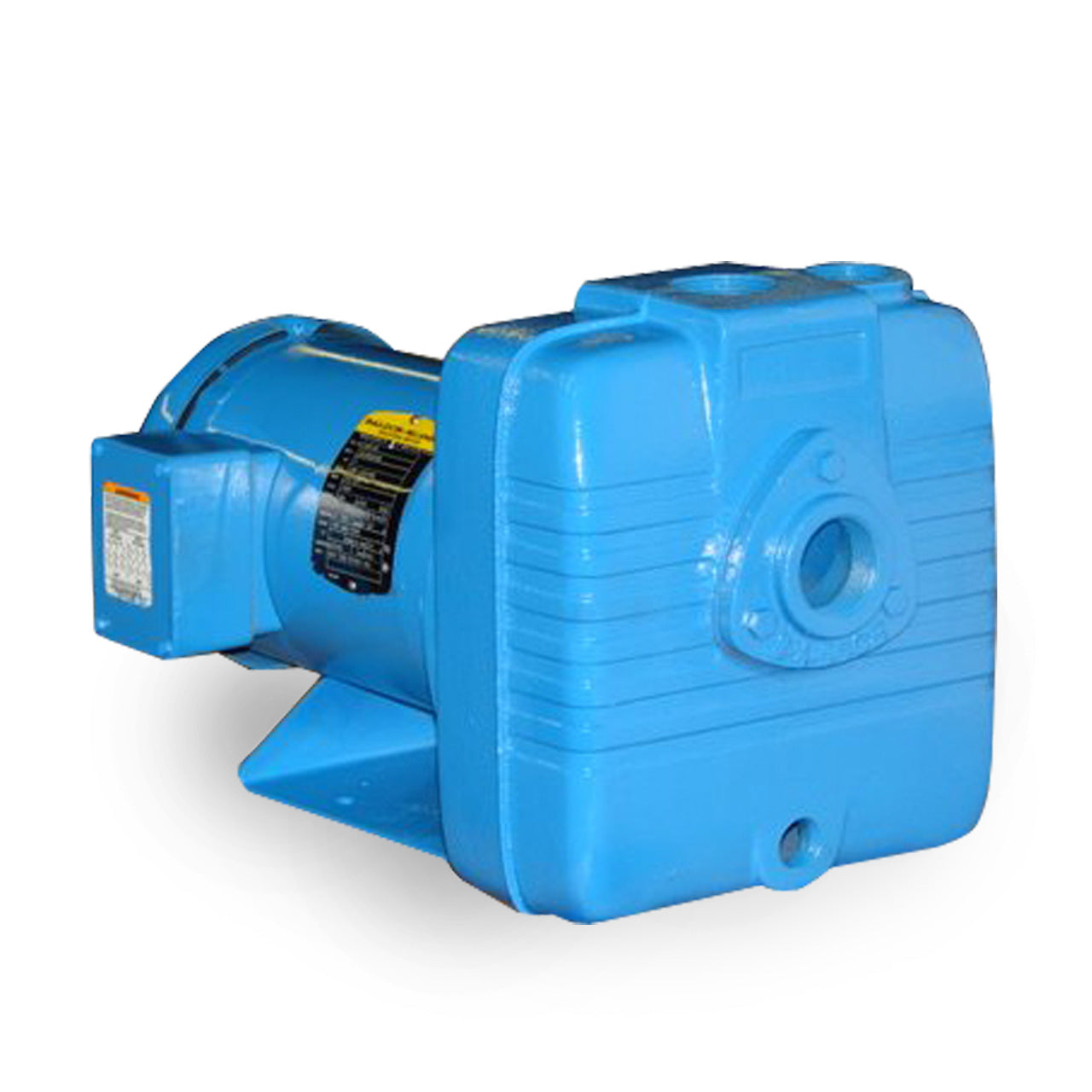

Power-Flo PF25CCE3 Self-Priming Close Coupled Pump 15 HP 208-230/460V 3PH

Power-Flo PF25CCE3 Self-Priming Close Coupled Pump 15 HP 208-230/460V 3PH

Usually ships within 3 weeks

SKU : PFPF25CCE3

In Stock Quantity:0

:
Brand : Power-Flo
$7,499.41 USD
Shipping calculated at checkout.

Description

Power-Flo Self-Priming Centrifugal Pump Description

Self-Priming centrifugal pumps designed for marine, municipal and industrial applications.

Power-Flo Self-Priming Centrifugal Pump Typical Application

  • Designed For Marine, Municipal and Industry
  • Commonly Used In Air Conditioning And Refrigeration, High Volume Liquid Transfer, Irrigation, Dewatering And Lawn Sprinkling Applications.

Power-Flo Self-Priming Centrifugal Pump Features

  • SUCTION/DISCHARGE: 3"x3" NPT, Female
  • LIQUID TEMPERATURE: 160°F Continuous
  • INTERMEDIATE: Cast Iron, ASTM, Class 30
  • VOLUTE: Cast Iron, ASTM, Class 30
  • BODY: Cast Iron, ASTM, Class 30
  • BASE: Steel
  • SQUARE RINGS: Buna-N
  • SHAFT: 1035 Cold Rolled Steel with Bronze Sleeve
  • HARDWARE: Steel & Stainless Steel
  • IMPELLER: Open, Trash Type, Dynamically Balanced. 3/4" Dia., Spherical Solids, Material: Cast Iron
  • SEAL: Design: Mechanical, Self-Lubricated, 1.25" Dia. Material: Carbon/Ni-Resist/Buna-N
  • CHECK VALVE: Valve Flap-Neoprene, Weight-Steel
  • MOTOR: Open Drip Proof (ODP) - C-Face, Footed, Squirrel Cage Induction. 40°C Ambient, Insulation: Class B or TEFC - C-Face, Squirrel Cage Induction, 40°C Ambient, Insulation: Class B or F
  • THREE PHASE: Dual-Voltage 230/460, Usable at 208
  • WARRANTY: 1 Year

Specifications

Power-Flo PF25CCE3 Specifications

  • DISCHARGE SIZE: 3.0" NPT
  • INLET SIZE: 3.0" NPT
  • MAXIMUM CAPACITY: 400 GPM
  • MAXIMUM HEAD: 190'
  • IMPELLER MATERIAL: Cast Iron, Open, Trash Type Dynamically Balanced
  • BODY CONSTRUCTION: Cast Iron, ASTM, Class 30
  • HORSEPOWER: 15 HP
  • AMP DRAW (full load): 44-40/20
  • MAXIMUM SOLIDS HANDLING SIZE: 0.75"
  • MOTOR TYPE: Open Drip Proof (ODP)
  • VOLTAGE: 3ø 208-230/460V
  • RPM: 3450 RPM
  • MAXIMUM LIQUID TEMPERATURE: 160°F Continuous

Power-Flo Self-Priming Centrifugal Pump Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Power-Flo Self-Priming Centrifugal Pump Product Resources


Download Power-Flo Self-Priming Centrifugal Pump Catalog Sheet

Download Power-Flo Self-Priming Centrifugal Pump Installation Manual
