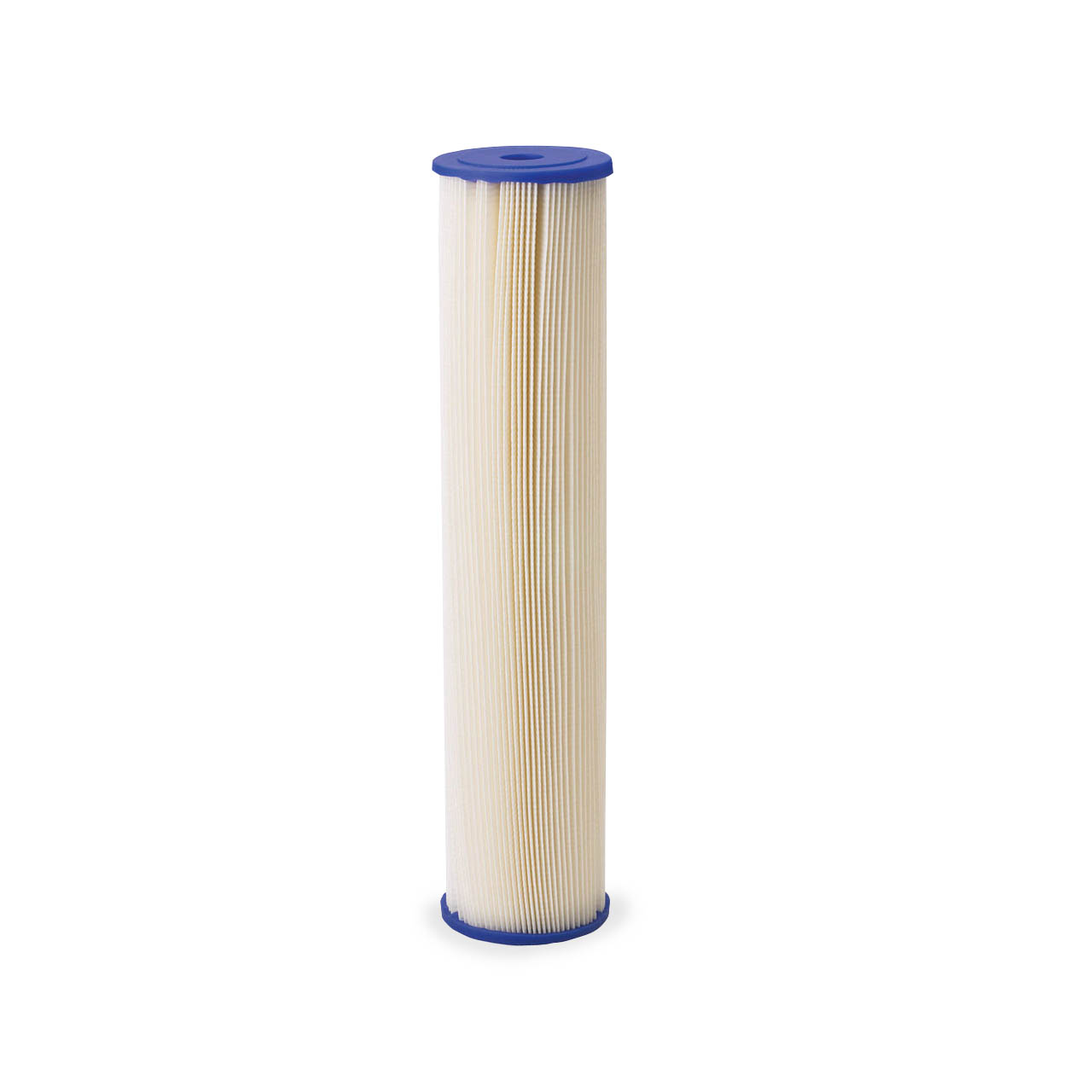

ECP Series cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers.

This unique blend of materials provides a higher wet strength than regular cellulose cartridges. The 20-inch 20 micron water filter also provides high flow rates and dirt holding capacity, while maintaining extremely low pressure drop.

The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat block in this fashion fuses the components together forming a unified endcap and gasket.

ECP Series cartridge endcaps feature a color-coding system for easy identification of micron ratings: Tan (1-micron), White (5-micron), Blue (20-micron), Yellow (50-micron).

This 20-inch 20 micron water filter contains more media surface area than most competitive cartridges. The standard 10-inch ECP cartridge contains six square feet of media, where most cartridges contain only 4.5 square feet. Other available ECP cartridge sizes contain the following amount of media:

• Standard 10" Cartridge – 6 ft²
• Standard 20" Cartridge – 12 ft²
• BB 10" Cartridge – 18 ft²
• BB 20" Cartridge – 36 ft²

Pentek ECP Filter Features

• Replaces CP and HFCP Series cartridges
• Special Formulation of Resin-Impregnated Cellulose and Polyester Fibers
• Provides Higher Wet Strength than Regular Cellulose cartridges
• Minimal Unloading and Media Migration

Pentek ECP Filter Specifications

• Filter Media - Cellulose Polyster
• Standard Endcaps - Vinyl Plastisol
• Big Blue Endcaps - Polypropylene
• Core - Polypropylene
• Temperature Rating - 40-125°F (4.4-51.7°C)

Pentek ECP Filter Technical Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Pentek ECP Cartridge Product Resources

Download Pentek ECP Cartridge Product Profile
