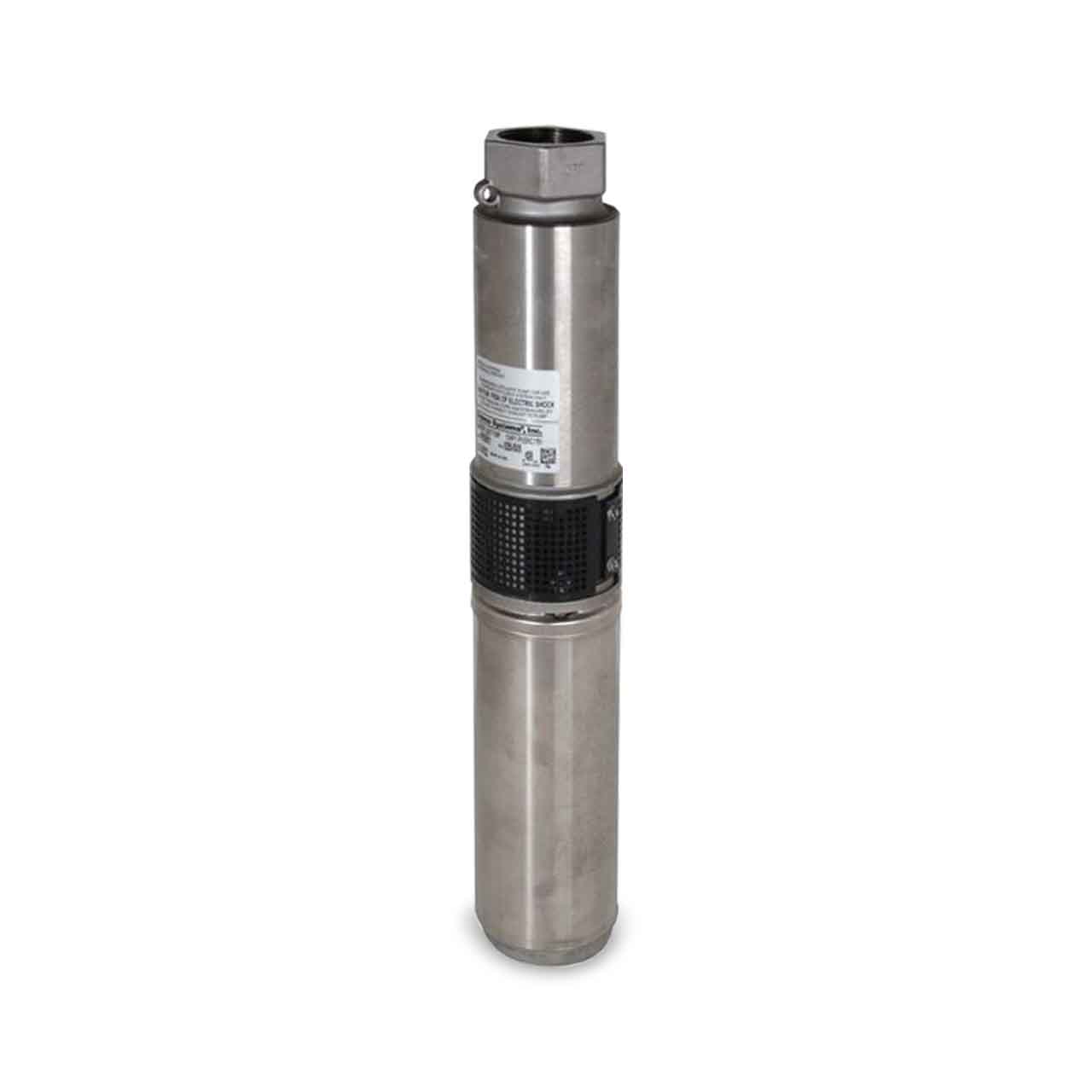

Orenco PF500511 High Head Effluent Pump 50 GPM 0.5 HP 115V 1PH 10' Cord

Orenco PF500511 High Head Effluent Pump 50 GPM 0.5 HP 115V 1PH 10' Cord

Ships within 24 hours

SKU : ONCPF500511

In Stock Quantity:7

:
Brand : Orenco Systems, Inc.
$1,377.38 USD
Shipping calculated at checkout.

Description

Orenco high-head effluent pumps are manufactured specifically for wastewater applications, to transport filtered effluent from septic tanks. High-head capabilities make them the ideal choice for STEP effluent sewer systems. Steep pump curves provide high-pressure capacity to clear plugged orifices in pressurized distribution systems. Orenco high-head effluent pumps possess a high cycling capability (up to 300 cycles/day on most models), which is needed for optimum treatment in many of today’s high performance onsite systems. 60-Hz 1/2 hp to 1-1/2 hp pumps are UL and CSA listed for use in effluent. 5-year extended warranty included with all PF series pumps. PF pumps include an SOOW type cable, suitable for Class I, Division 1 and 2 applications (check local codes).

Orenco PF Series High Head Effluent Pump Typical Application

  • Residential Septic Tank Effluent
  • Disposal System Dosing
  • Treatment System Dosing

Orenco PF Series High Head Effluent Pump Technical Details

  • Minimum 24-Hour Run-Dry Capability with No Deterioration in Pump Life or Performance
  • Patented 1⁄8" (3-mm) Bypass Orifice to Ensure Flow Recirculation for Motor Cooling and to Prevent Air Bind
  • Liquid End Repair Kits Available for Better Long-Term Cost of Ownership
  • TRI-SEAL™ Floating Impeller Design on 10, 20, and 30 GPM (0.6, 1.3, and 1.9 L/sec) Models; floating stack design on 50 and 75 GPM (3.2 and 4.7 L/sec) models
  • Franklin Electric Super Stainless Motor, Rated for Continuous use and Frequent Cycling
  • Type SOOW 600-V Motor Cable (suitable for Class I, Division 1and Division 2 applications)

Specifications

Orenco PF500511 High Head Effluent Pump Specifications

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 12.1
  • MAXIMUM HEAD: 60'
  • MAXIMUM CAPACITY: 70 GPM
  • DISCHARGE PIPE SIZE: 2.0” FPT
  • IMPELLER TYPE: Floating Stack
  • CORD LENGTH: 10' Type SOOW
  • BODY CONSTRUCTION: Stainless Steel
  • DUTY RATING: Continuous

Orenco PF Series High Head Effluent Pump Curve

Orenco PF50 High Head Effluent Pump Curve Image


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco PF Series High Head Effluent Pump Product Resources


Orenco PF Series High Head Effluent Pump Technical Data Sheet: NTD-GOP-PMP-1

Orenco PF Series High Head Effluent Pump Owner's Manual: XLD-PU-PF-1
