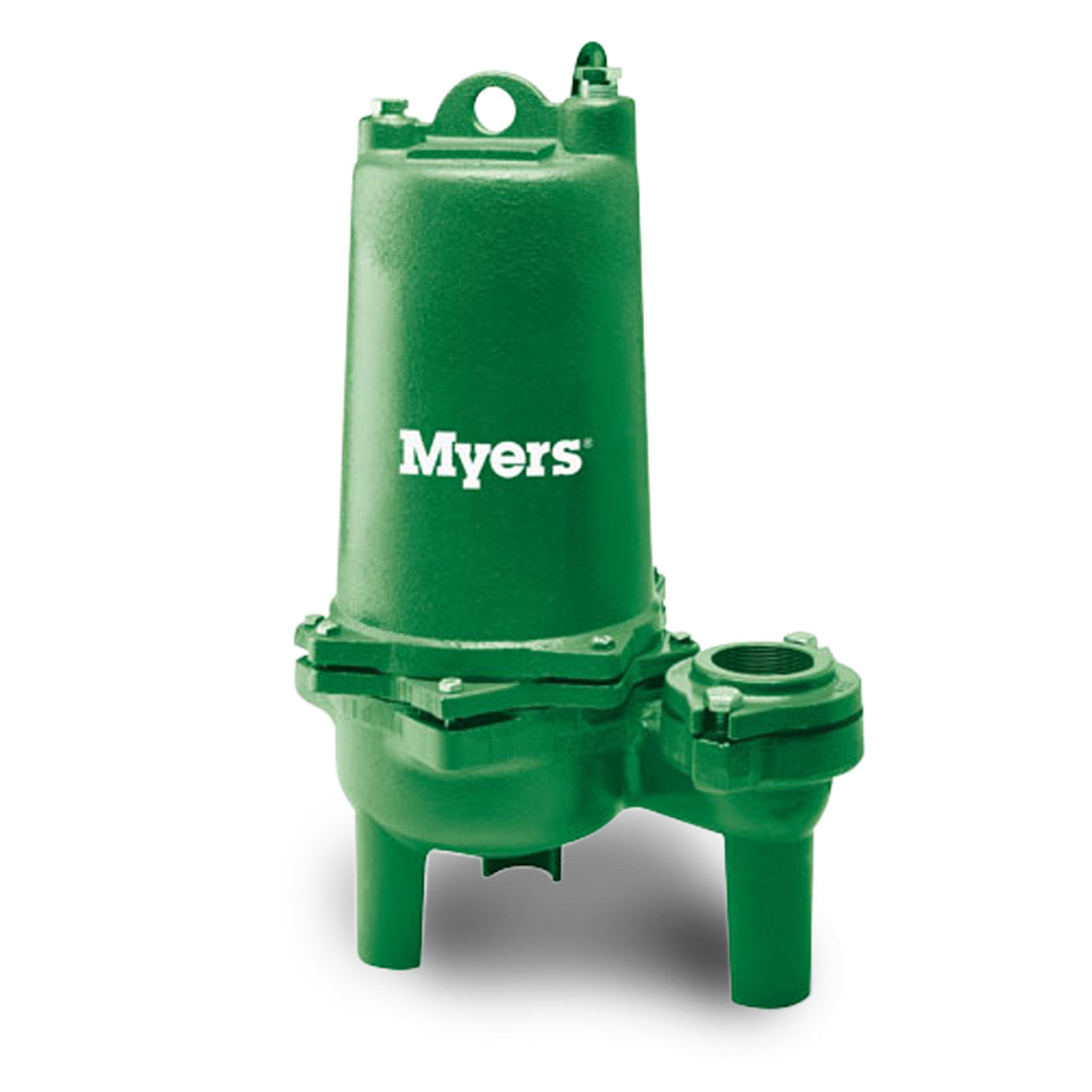

Myers WHR20H-53 High Head Sewage Pump 2.0 HP 575V 3 PH Manual 20' Cord
Myers WHR20H-53 High Head Sewage Pump 2.0 HP 575V 3 PH Manual 20' Cord
SKU : MYRWHR20H53
In Stock Quantity:0
:
Brand
:
Regular price
$2,727.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers WHRH Series High Head Sewage Pump Description
The WHR5H - WHR20H Series Pumps are designed for use in Light Commercial & Residential Raw Sewage and Effluent Applications. They deliver higher heads than standard sewage pumps and will pass 2" solids. Recessed vortex impeller provides an unobstructed passage in the volute case, allowing the pump to handle stringy trash without plugging the impeller.
Myers WHRH Series High Head Sewage Pump Typical Applications
- Residential and Commercial Sewage
- High Capacity Sump
- Effluent
- Domestic Wastewater
- Septic Pumping Applications
Myers WHRH Series High Head Sewage Pump Features
- Tough Against Corrosion All Cast Iron Construction Resists the Most Extreme Corrosive Environments.
- Runs Cooler Oil-Filled Motor for Bearing Lubrication and Maximum Heat Dissipation.
- Flow to Meet Demand Higher Head Performance for Demanding Sewage and Effluent Applications.
- Powerful Starts High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
- Thermal Protection Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.
Specifications
Specifications
Myers WHR20H-53 Series High Head Sewage Pump Specifications
- VOLTAGE: 3ø, 575V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 3.6
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450
- MAXIMUM HEAD: up to 71'
- MAXIMUM CAPACITY: up to 215 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
- DISCHARGE PIPE SIZE: 2.0" NPT (3.0" optional)
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Ductile Iron, Recessed
- IMPELLER DIAMETER: 4.56"
- CORD LENGTH: 20'
- CORD SIZE: 16/4; Type: SJOW/SJOW-A
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
Myers WHRH Series High Head Sewage Pump Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers WHRH Series High Head Sewage Pump Product Resources
Download Myers WHRH Series Specification Data
