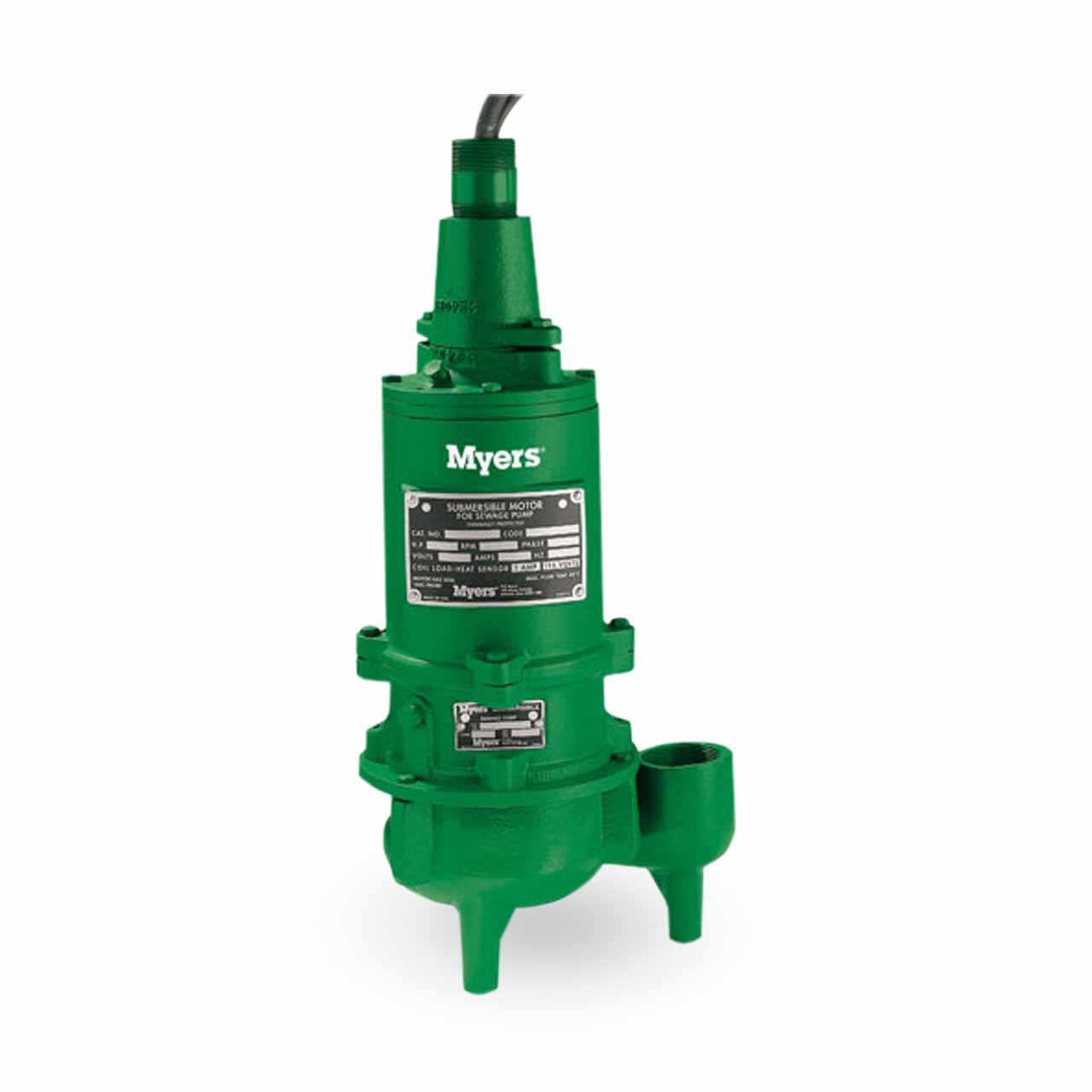

Myers SX50 Explosion-Proof Cast Iron Sump Pump Description

The Myers SX Series are heavy-duty cast iron submersible sump pumps engineered for commercial and industrial dewatering applications in hazardous environments.. These pumps are designed to reduce the risk of vapor igniting the pump in hazardous environments classified as Class 1, Division 1, Group D.

Myers SX50 Explosion-Proof Cast Iron Sump Pump Typical Applications

• Class 1, Division 1, Group D Applications
• Commercial Applications
• Municipal Applications
• Sump, Dewatering and Effluent

Myers SX50 Explosion-Proof Cast Iron Sump Pump Features

• Tough, Safe Performance Rugged and Explosion-Proof Pump Design Commercial, Industrial and Municipal Applications
• Hazardous Duty UL Listed for Use in Class 1, Division 1, Group D Hazardous Locations with Contaminated Water
• Tough Against Corrosion All Cast Iron Construction Resists the Most Extreme Corrosive Environments
• Cool Running Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation
• Longer Bearing Life Recessed Impeller Reduces Radial Bearing Loads, Increasing Bearing Life
• Built-In Protection Sensor and Probe Protect Against Overheating and Seal Leak
• Easy Starting High-Torque Capacitor Start, Single Phase Motor for Assured Starting Under Heavy Load

Myers SX50-43 Explosion-Proof Cast Iron Sump Pump Specifications

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 1.6
• MOTOR TYPE: High-Torque Capacitor Start, Single-Phase Motor
• RPM: 1750
• MAXIMUM HEAD: 25'
• MAXIMUM CAPACITY: 95 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING: 2.0"
• IMPELLER TYPE: Ductile Iron; Recessed
• CORD LENGTH: 20', Type SOOW
• BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
• MAXIMUM LIQUID TEMPERATURE: 266°F (120C)
• HAZARDOUS DUTY: UL Listed for Use in Class 1, Division 1, Group D
• CONTROL BOX REQUIRED

Myers SX50 & SX50H Explosion-Proof Cast Iron Sump Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers SX50 Explosion-Proof Cast Iron Sump Pump Product Resources

Download Myers SX50/SX50H Explosion-Proof Cast Iron Sump Pump Brochure

Download Myers SX50/SX50H Explosion-Proof Cast Iron Sump Pump Specification Data

Download Myers SX50/SX50H Explosion-Proof Cast Iron Sump Pump Installation & Service Manual
