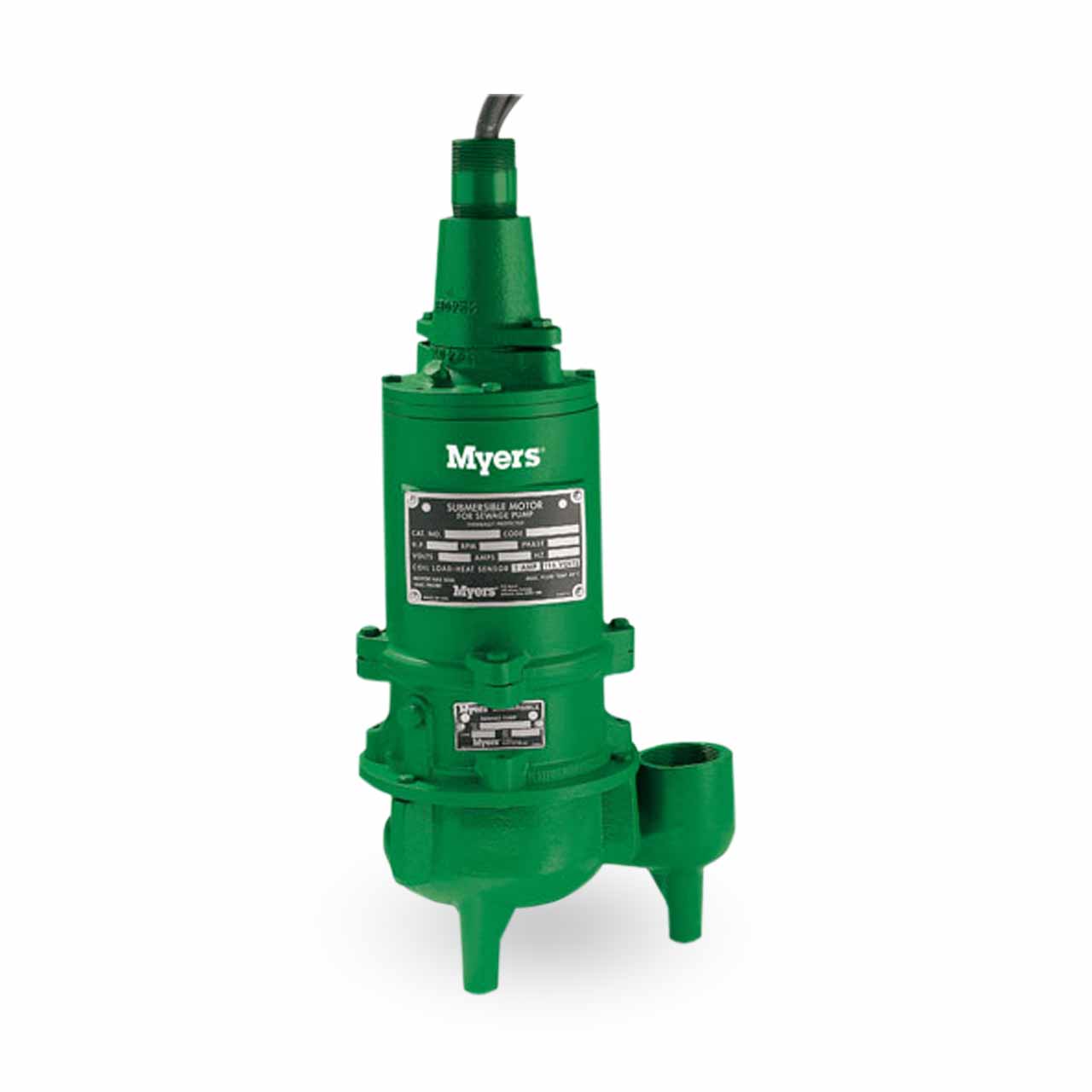

Myers SX50-21 Explosion-Proof Cast Iron Sump Pump 0.5 HP 1 PH 230V

Myers SX50-21 Explosion-Proof Cast Iron Sump Pump 0.5 HP 1 PH 230V

Ships within 24 hours

SKU : MYR26857E611

In Stock Quantity:1

:
Brand : Myers
$3,375.68 USD
Shipping calculated at checkout.

Description


Myers SX50 Explosion-Proof Cast Iron Sump Pump Description

The Myers SX Series are heavy-duty cast iron submersible sump pumps engineered for commercial and industrial dewatering applications in hazardous environments.. These pumps are designed to reduce the risk of vapor igniting the pump in hazardous environments classified as Class 1, Division 1, Group D.

Myers SX50 Explosion-Proof Cast Iron Sump Pump Typical Applications

  • Class 1, Division 1, Group D Applications
  • Commercial Applications
  • Municipal Applications
  • Sump, Dewatering and Effluent

Myers SX50 Explosion-Proof Cast Iron Sump Pump Features

  • Constructed for Use in Class 1, Division 1, Group D Hazardous Locations
  • Designed to Pump Contaminated Water, with a Wide Range of Pollutants Listed Under the CSA Listings
  • Myers Intrinsically Safe Control Panel Included
  • Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication
  • Recessed Impeller Reduces Radial Bearing Loads, Increase Bearing Life
  • High-Torque Capacitor Start, Single-Phases Motor for Assured Starting Under Heavy Load
  • Seal Leak Probes Warn of Seal Leak Condition
  • On-Winding Heat Sensors Protect Motor From Overheating and Prevent Costly Motor Damage

Specifications

Myers SX50-21 Explosion-Proof Cast Iron Sump Pump Specifications

  • VOLTAGE: 1ø, 230V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 4.9
  • MOTOR TYPE: High-Torque Capacitor Start, Single-Phase Motor
  • RPM: 1750
  • MAXIMUM HEAD: 25'
  • MAXIMUM CAPACITY: 95 GPM
  • SWITCH TYPE: Manual
  • MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
  • DISCHARGE PIPE SIZE: 2.0" NPT
  • MAXIMUM SOLIDS HANDLING: 2.0"
  • IMPELLER TYPE: Ductile Iron; Recessed
  • CORD LENGTH: 20', Type SOOW
  • BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
  • MAXIMUM LIQUID TEMPERATURE: 266°F (120C)
  • HAZARDOUS DUTY: UL Listed for Use in Class 1, Division 1, Group D
  • CONTROL BOX REQUIRED

Myers SX50 & SX50H Explosion-Proof Cast Iron Sump Pump Performance Data


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers SX50 Explosion-Proof Cast Iron Sump Pump Product Resources


Download Myers SX50/SX50H Explosion-Proof Cast Iron Sump Pump Brochure

Download Myers SX50/SX50H Explosion-Proof Cast Iron Sump Pump Specification Data

Download Myers SX50/SX50H Explosion-Proof Cast Iron Sump Pump Installation & Service Manual
