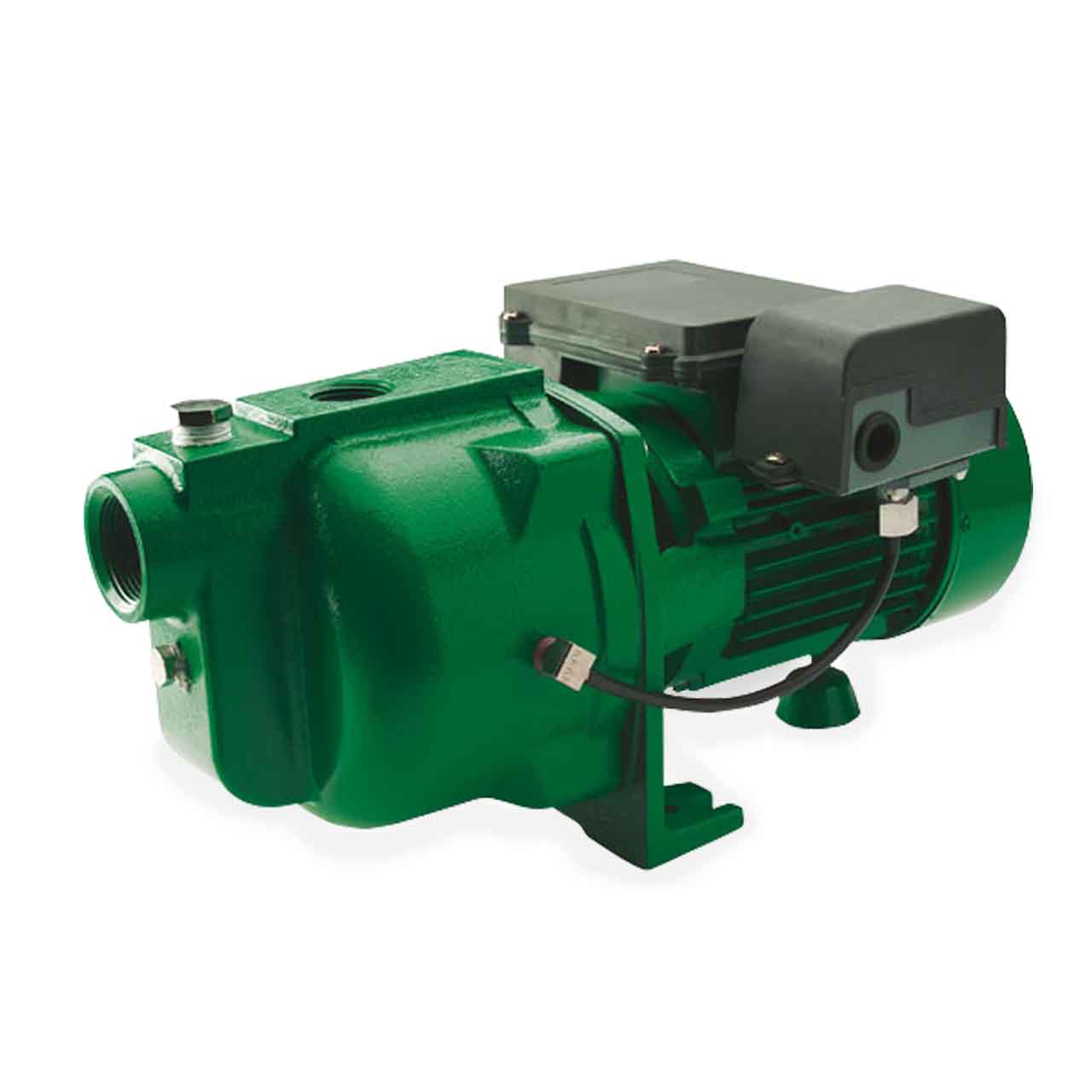

Myers QD75S Quick Draw Series Shallow Well Jet Pumps 0.75 HP 115/230V

Myers QD75S Quick Draw Series Shallow Well Jet Pumps 0.75 HP 115/230V

Usually ships within 2 weeks

SKU : MYRQD75S

In Stock Quantity:-1

:
Brand : Myers
$1,186.52 USD
Shipping calculated at checkout.

Description


Myers QD Series Shallow Well Jet Pump Description

Myers Quick Draw Jet Pumps prime quickly, deliver strong performance and feature a moisture and insect proof motor for optimum reliable service. These 3/4 HP jet pumps feature a large capacity top suction case and internal priming plate for quick and reliable priming. The motor provides dependable long life to all critical bearings with electrical connections enclosed and protected from potential moisture and insect problems. The 1/2, 3/4 and 1 HP jet pumps are quick to deliver water for home, farm, commercial and industrial water systems.

Myers QD Series Shallow Well Jet Pump Typical Applications

  • Water Systems: Home, Farm, Commercial and Industrial.

Myers QD Series Shallow Well Jet Pump Features

  • Quick and Easy Priming
    • Faster Priming
    • Large Capacity, Top Suction Case
    • Internal Priming Plate
    • Separate Priming Plug on Case
  • Long Life Motor
    • 115/230 Volt with Dual Voltage Selector Switch
    • Prevents Moisture, Insect or Dirt Damage to Critical Electrical Components
    • Provides Clean, Dry Environment to Electrical Components for Maximum Motor Life
    • Permanently Lubricated Double-Ball Bearings
    • Strong Capacitor Starting Torque
    • Non Overloading, Continuous Duty Rating
    • Internal Thermal Overload Protection
  • Strong Pump Performance
    • Maximum Pressures to 65 psi
    • Flow Capabilities to 26 GPM
    • 1-1/4" Suction, 1" Discharge on All Models
  • Heavy Duty Pump Case and Motor Bracket - High Tensile Strength Cast Iron
  • Easy Serviceability
    • Convenient Back Pullout Design
    • Nozzle Clean-Out and Priming Fitting
  • Mechanical Shaft Seal - Precision Lapped and Polished Carbon/Ceramic Faces, Buna Elastomers and Stainless Steel Components
  • Direct Mount Pressure Switch - Pre-Set at 30/50 psi Setting
  • Corrosion Resistant Design
    • Engineered Reinforced Thermoplastic Impeller
    • Thermoset Diffuser with Stainless Steel Wear Ring

Specifications

Myers QD75S Shallow Well Jet Pump Specifications

  • DISCHARGE PIPE SIZE: 1.0" NPT
  • INLET SIZE: 1-1/4" NPT
  • MAXIMUM CAPACITY: up to 20 GPM
  • MAXIMUM HEAD: up to 150'
  • IMPELLER MATERIAL: Precision-Molded Thermoplastic
  • BODY CONSTRUCTION: Cast Iron
  • HORSEPOWER: 0.75 HP
  • MOTOR TYPE: Dual Voltage
  • VOLTAGE: 115/230V, 60 Hz
  • AMP DRAW (full load): 10.5/5.7

Myers QD Series Shallow Well Jet Pump Performance Data


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers QD Series Shallow Well Jet Pump Product Resources


Download Myers QD Series Shallow Well Jet Pump Specification Data

Download Myers QD Series Shallow Well Jet Pump Installation & Service Manual
