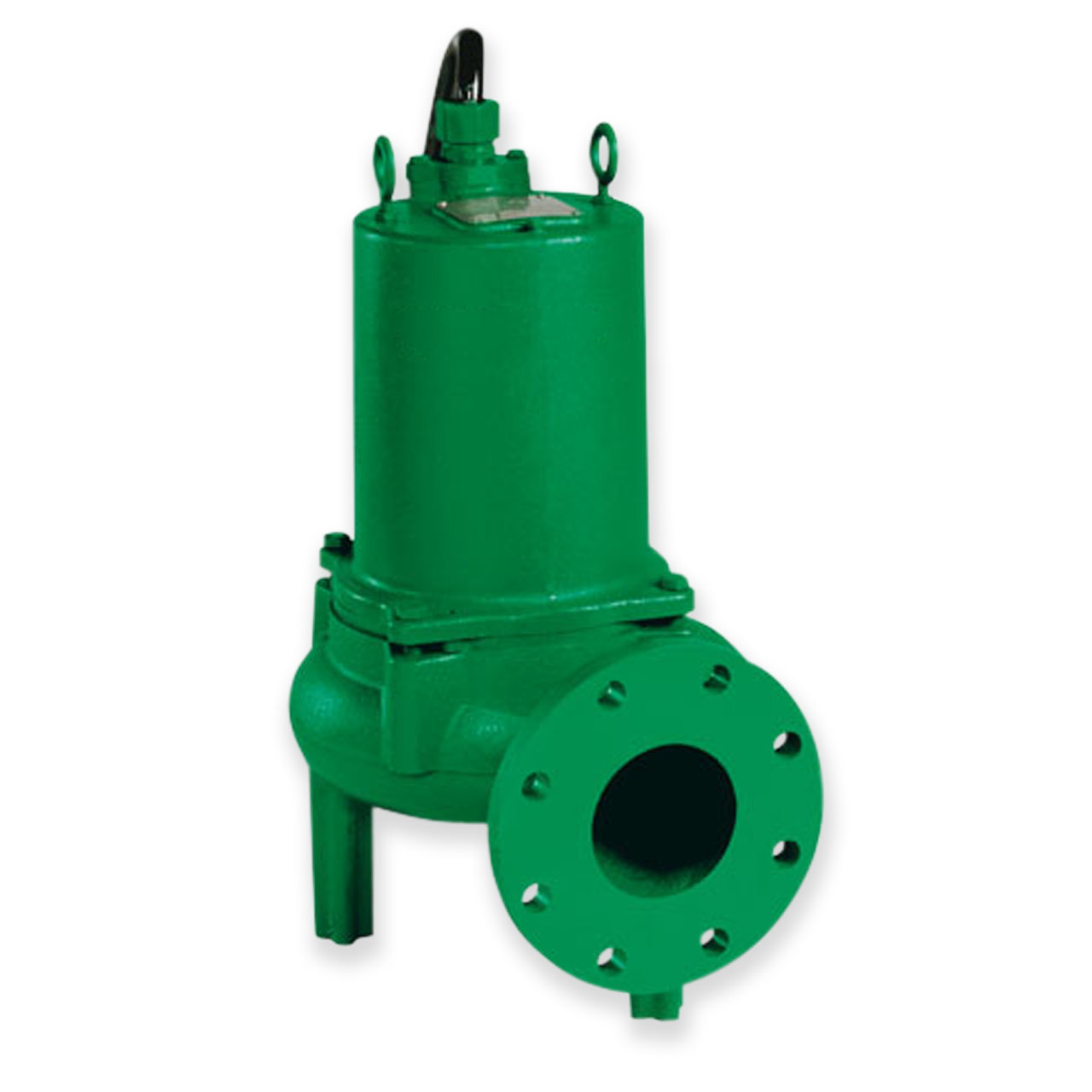

Myers MS4S750M3-4 Submersible Sewage Pump 7.5 HP 230V 3PH Manual 35' Cord
Myers MS4S750M3-4 Submersible Sewage Pump 7.5 HP 230V 3PH Manual 35' Cord
SKU : MYR28224E023
In Stock Quantity:0
:
Brand
:
Regular price
$6,776.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers MS4S/MSB4S Submersible Sewage Pump Description
Myers MS4S/MSB4S Submersible Sewage Pumps are suited to wet-well installation in a wide variety of municipal, industrial and building trades applications. Their solids handling ability makes them a wise choice for: Municipal Sewage Lift Stations, Industrial Sewage Transfer and Dewatering of Storm Water. Myers Submersible Sewage Pumps are designed to transfer raw sewage with solids as large as 3 inches through pipes up to 4 inches in diameter.
Myers MS4S/MSB4S Submersible Sewage Pump Typical Application
- Municipal Sewage Lift Stations
- Industrial Sewage Transfer
- Dewatering of Storm Water
Myers MS4S/MSB4S Submersible Sewage Pump Features
- Motor The Fully Enclosed Oil-Filled Motor Efficiently Dissipates Heat and Locks out Moisture so you Receive Reliable Pumping Service
- CPE Jacketed Power Cord Sealed by Both the Cord Grip and the Epoxy Barrier,
- Stainless Steel Shaft Eliminates Corrosion and Fatigue to Give Longer Pump Life. The Minimum Shaft Overhang Decreases Deflection and Increases Bearing and Seal Life.
- Ball Bearings The Heavy Duty Ball Bearings, Upper (radial) and Lower (thrust), are Submerged in Oil to Provide Permanent Lubrication and Ensure Long Service Life.
- Mechanical Seal Constructed with a Ceramic Stationary Face and a Carbon Rotating Face for Long Service Life.
- Impeller Two-Vane, Semiopen Design for Efficient Operation without Clogging. The Impeller has Pump-Out Vanes to Prevent Material Buildup around Shaft and Seal.
- Horizontal Discharge Model MS4S Handles 3 inch Spherical Solids and has a Flanged 4 inch Horizontal Discharge.
Specifications
Specifications
Myers MS4S750M3-4 Submersible Sewage Pump Technical Details
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 7.5 HP
- AMP DRAW (full load): 25.2
- MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
- RPM: 1750
- MAXIMUM HEAD: 35’
- MAXIMUM CAPACITY: 800 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" Horizontal Flange
- MAXIMUM SOLIDS HANDLING SIZE: 3.0"
- IMPELLER TYPE: Cast Iron, Non-Clogging, Two-Vane, Semi-Open
- CORD LENGTH: 35'
- CORD SIZE: 8-4; Type: SOOW, W
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- CONTROL BOX REQUIRED
Myers MS4S Submersible Sewage Pump Performance Curve
