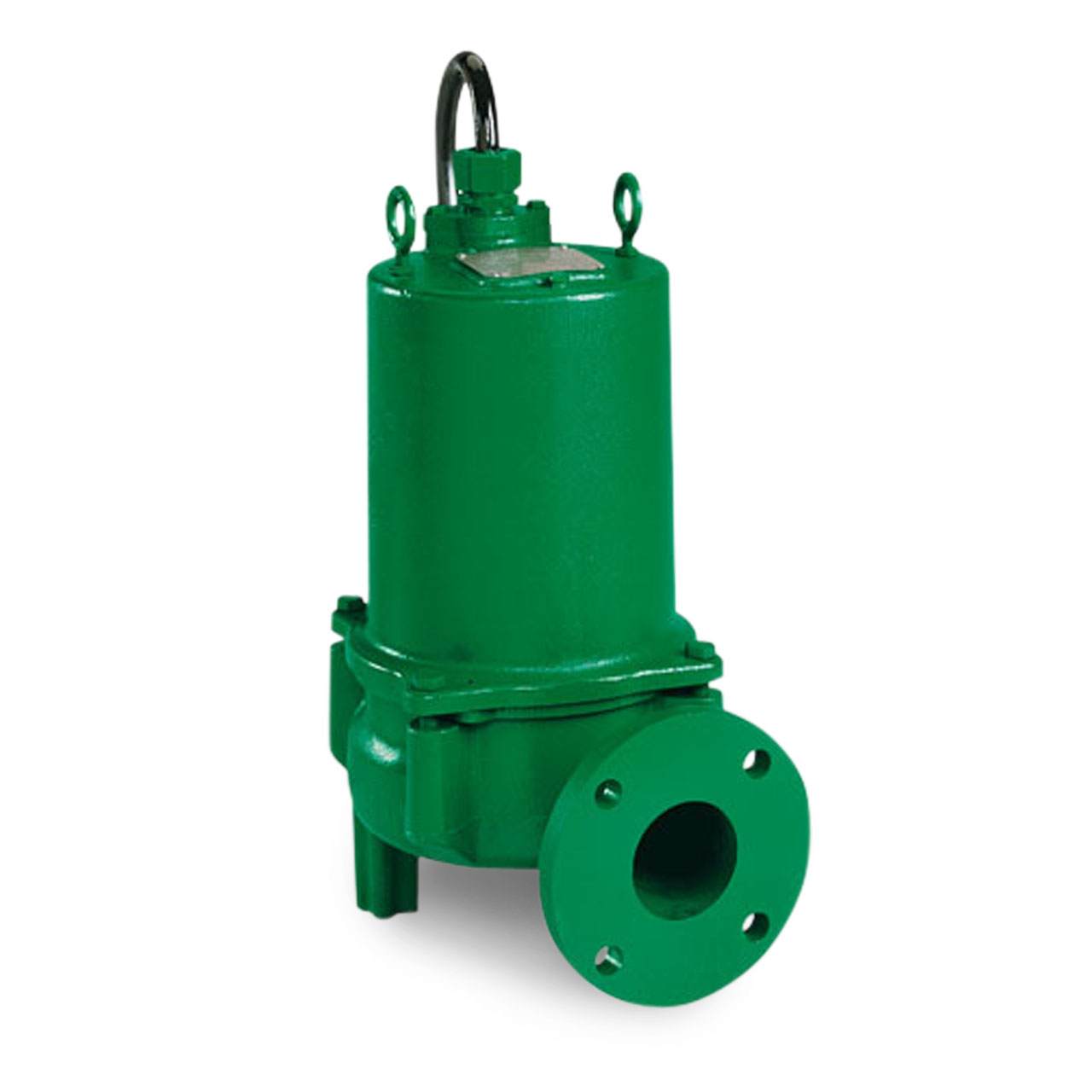

Myers MS3S300M4-4 Submersible Sewage Pump 3.0 HP 460V 3PH Manual 35' Cord

Myers MS3S300M4-4 Submersible Sewage Pump 3.0 HP 460V 3PH Manual 35' Cord

Usually ships within 5 weeks

SKU : MYR28221E014

In Stock Quantity:0

:
Brand : Myers
$6,280.00 USD
Shipping calculated at checkout.

Description


Myers MS3S Submersible Sewage Pump Description

Myers MS3S/MSB3S Submersible Sewage Pumps are suited for wet-well installation in a wide variety of municipal, industrial and building trades applications. The MS3S/MSB3S Sewage Pumps are designed to transfer raw sewage with solids as large as 2-1/2 inches through pipes up to 3 inches in diameter.

Myers MS3S Submersible Sewage Pump Typical Application

  • Municipal Sewage Lift Stations
  • Industrial Sewage Transfer
  • Dewatering of Storm Water

Myers MS3S Submersible Sewage Pump Features

  • Motor the Fully Enclosed Oil-Filled Motor Efficiently Dissipates Heat and Locks Out Moisture so you Receive Reliable Pumping Service.
  • CPE Jacketed Power Cord Sealed by Both the Cord Grip and the Epoxy Barrier.
  • Stainless Steel Shaft Eliminates Corrosion and Fatigue to Give Longer Pump Life. The Minimum Shaft Overhang Decreases Deflection and Increases Bearing and Seal Life.
  • Ball Bearings the Heavy Duty Ball Bearings, Upper (radial) and Lower (thrust), are Submerged in Oil to Provide Permanent Lubrication and Ensure Long Service Life.
  • Mechanical Seal Constructed with a Ceramic Stationary Face and Carbon Rotating Face for Long Service Life.
  • Impeller Two-Vane, Semi-Open Design for Efficient Operation without Clogging. The Impeller has Pump-Out Vanes to Prevent Material Buildup Around Shaft and Seal.
  • Horizontal Discharge Model MS3S Handles 2-1/2" Spherical Solids and has a 3" Flanged Horizontal Discharge.

Specifications

Myers MS3S300M4-4 Submersible Sewage Pump Technical Details

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 3.0 HP
  • AMP DRAW (full load): 17.1
  • MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
  • RPM: 1750
  • MAXIMUM HEAD: up to 35'
  • MAXIMUM CAPACITY: up to 425 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 3.0" Flanged Horizontal
  • MAXIMUM SOLIDS HANDLING SIZE: 2-1/2"
  • IMPELLER TYPE: Cast Iron, Non-Clogging, Two-Vane, Semi-Open
  • IMPELLER DIAMETER: Varies
  • CORD LENGTH: 35'
  • CORD SIZE: 14-4; Type: SOOW, W
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
  • CONTROL BOX REQUIRED

Myers MS3S Submersible Sewage Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers MS3S Submersible Sewage Pump Product Resources


Download Myers MS3S/MSB3S Series Specifications

Download Myers MS3S/MSB3S Series Brochure

Download Myers MS3S/MSB3S Series Manual
