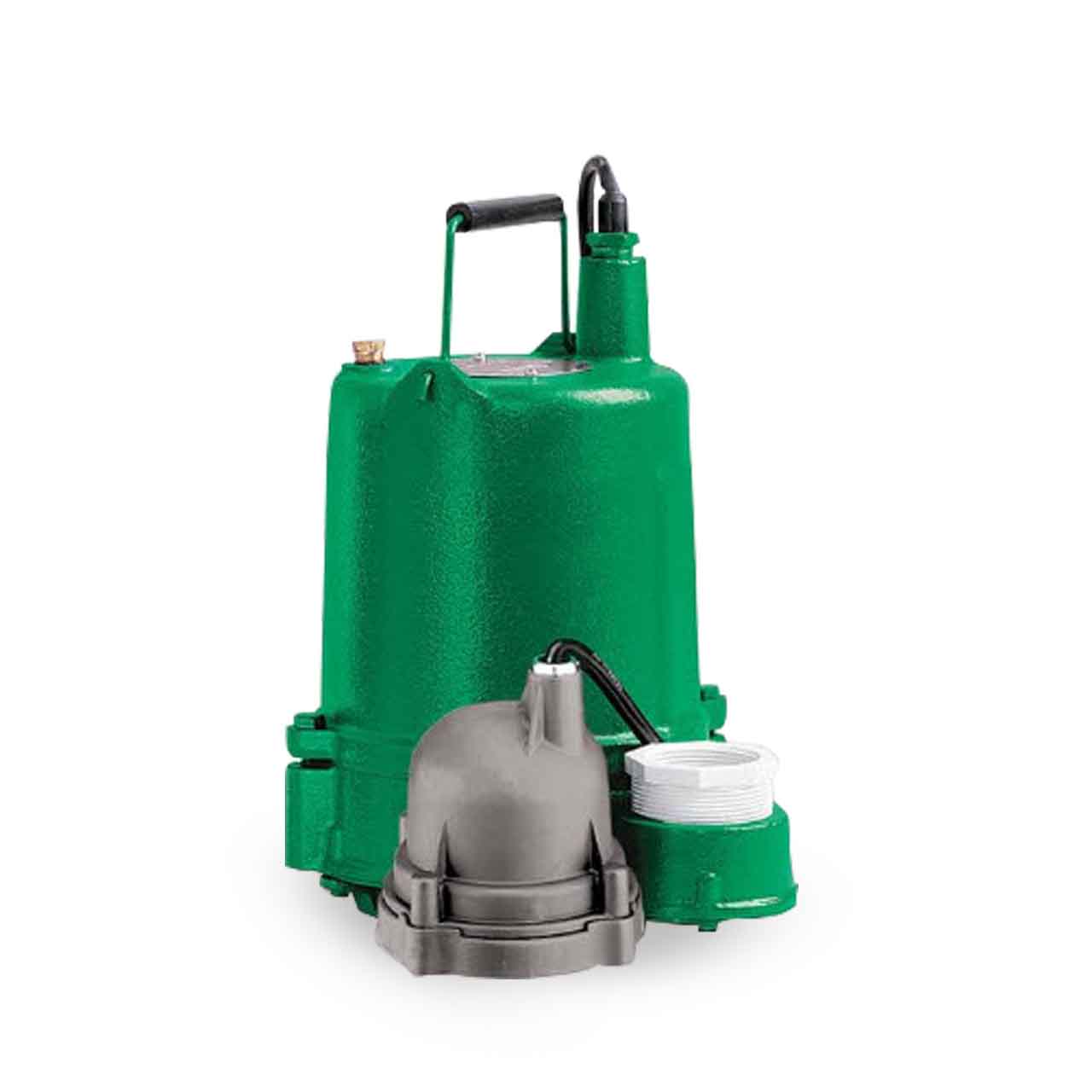

Myers MEOSP50M1-20 Submersible Effluent Pump 0.5 HP 115V 1PH 20' Cord Manual

Myers MEOSP50M1-20 Submersible Effluent Pump 0.5 HP 115V 1PH 20' Cord Manual

Ships within 24 hours

SKU : MYR28214D011

In Stock Quantity:4

:
Brand : Myers
$926.78 USD
Shipping calculated at checkout.

Description


Myers MEOSP50 Submersible Effluent Pump Description

The Myers MEOSP50 Submersible Pump is specifically designed to meet the demands of residential sump, elevator pit, septic tank effluent, industrial circulator and transfer tank applications and is available in either cast iron or naval bronze corrosion resistant material.

Myers MEOSP50 Submersible Effluent Pump Typical Application

  • Continuous Duty Application
  • Septic Tank Effluent
  • Flood Control Units
  • Industrial Circulators
  • Elevator Pits
  • Basement Sumps

Myers MEOSP50 Submersible Effluent Pump Superior Features

  • Water-Resistant Power Cord with Molded Plug is Available in 10 or 20 foot Lengths and is Easy Field Serviceable.
  • Upper and Lower Ball Bearings Support Motor Shaft, Minimizing the Effects of Impeller Thrust Loads. This Design Results in Minimum Friction and Perfect Alignment of Rotor for Longer Service from Pump.
  • Oil-Filled Motor Provides Superior Cooling and Permanent Lubrication for Bearings, Minimizing Maintenance and Extending Service Life.
  • Powerful 1/2 HP Motor Runs Cool and Quiet for Long Life. Motor Windings Contain Automatic-Reset, Thermal Overload Protection.
  • Mechanical Shaft Seal is Carbon- and Ceramic-Faced for Long Leakproof Life.
  • Heavy-Duty, Cast Iron Construction Provides Long Life in Rugged Applications.
  • Discharge is 1.5" NPT.
  • The Impeller which is Threaded to a Stainless Steel Shaft, Provides Long Life in Corrosive Applications and is Capable of Handling up to 5/8" Spherical Solids and Lint.
  • Bottom-Suction Design Alleviates Buildup of Debris, Providing Optimum Pump Performance and Reduced Maintenance.
  • Manual Pump Operation - NO PUMP SWITCH INCLUDED

Specifications

Myers MEOSP50M1 Submersible Effluent Pump Technical Details

  • VOLTAGE: 1ø, 115V, 60 Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 9.5
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1750
  • MAXIMUM HEAD: 25'
  • MAXIMUM CAPACITY: 60 GPM
  • SWITCH TYPE: Manual
  • MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
  • DISCHARGE PIPE SIZE: 1-1/2" NPT
  • MAXIMUM SOLIDS HANDLING SIZE: 5/8"
  • IMPELLER TYPE: Reinforced Thermoplastic
  • CORD LENGTH: 20'
  • CORD SIZE: 16-3; Type: SJTW, SJTOOW
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers MEOSP50 Submersible Effluent Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers MEOSP50 Submersible Effluent Pump Product Resources


Download Myers MEOSP50 Sales Brochure

Download Myers MEOSP50 Installation & Service Manual
