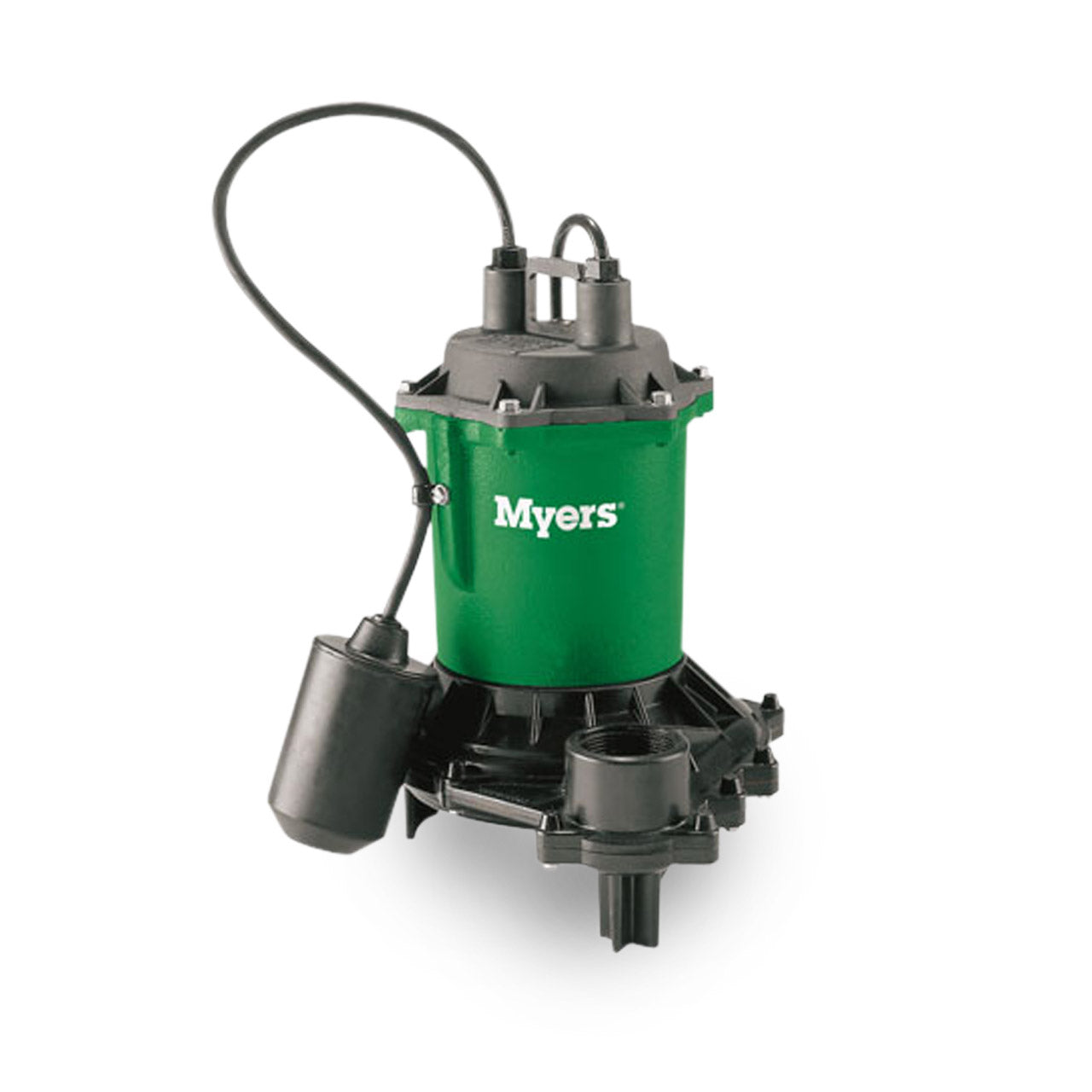

Myers ME40AC-11 Effluent Pump 0.4 HP 115V 20' Cord Automatic

Myers ME40AC-11 Effluent Pump 0.4 HP 115V 20' Cord Automatic

Discontinued or no longer available

SKU : MYRME40AC11

In Stock Quantity:0

:
Brand : Myers
Shipping calculated at checkout.

Description


Discontinued See Replacement: Myers ME40PC-1 Effluent Pump 0.4 HP 115V 20' Cord Auto-Piggyback

Myers ME40 Effluent Pump Description

The Myers® ME40 Series Effluent Pumps are one of the industry's most efficient models featuring a 4/10 HP motor. This powerful pump provides the flow and head required for demanding dosing systems and drainage applications. The ME40 incorporates cast iron, engineered thermoplastic and stainless steel in combination to produce a powerful and highly durable pump.

Myers ME40 Effluent Pump Typical Applications

  • Effluent Removal
  • Sump Drainage
  • Water Transfer
  • Flood Control

Myers ME40 Effluent Pump Features

  • Enclosed Design for High-Efficiency Pumping
  • Eliminates Possibility of Jamming Between Impeller and Volute
  • Passes Full 3/4” Solids
  • Durable Motor Will Deliver Many Years of Reliable Service
  • Oil-Filled Motor for Maximum Heat Dissipation and Continuous Bearing Lubrication
  • Lower Ball Bearing and Heavy-Duty, Type 6 Seal for Added Pump Life
  • Positive Sealing, Quick-Connect Float and Switch Cords Make Replacement Simple if Service is Ever Necessary
  • Field-Tested, Wide-Angle, Mercury-Free Mechanical Float Switch Provides Maximum Drawdown

Specifications

Myers ME40AC-11 Effluent Pump Specifications

  • VOLTAGE: 1ø, 115V, 60 Hz
  • HORSEPOWER: 0.4 HP
  • AMP DRAW (full load): 12.0
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1650
  • MAXIMUM HEAD: 32'
  • MAXIMUM CAPACITY: 80 GPM
  • SWITCH TYPE: Tethered
  • MINIMUM SUMP DIAMETER: Simplex 24" Duplex 36"
  • DISCHARGE PIPE SIZE: 1-1/2" NPT
  • MAXIMUM SOLIDS HANDLING SIZE: 3/4"
  • IMPELLER TYPE: Cast Iron, Two-Vane Enclosed
  • CORD LENGTH: 20'
  • CORD SIZE: 16-3; Type: SJTW
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers ME40 Effluent Pump Performance Data


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers ME40 Effluent Pump Product Resources


Download Myers ME40 Series Specification Data

Download Myers ME40 Series Selling Features

Download Myers ME40 Series Installation & Service Manual
