Myers ME3H-21 Effluent Pump 0.33 HP 230V 20' Cord Manual
Myers ME3H-21 Effluent Pump 0.33 HP 230V 20' Cord Manual
SKU : MYRME3H21
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - ME3 Series

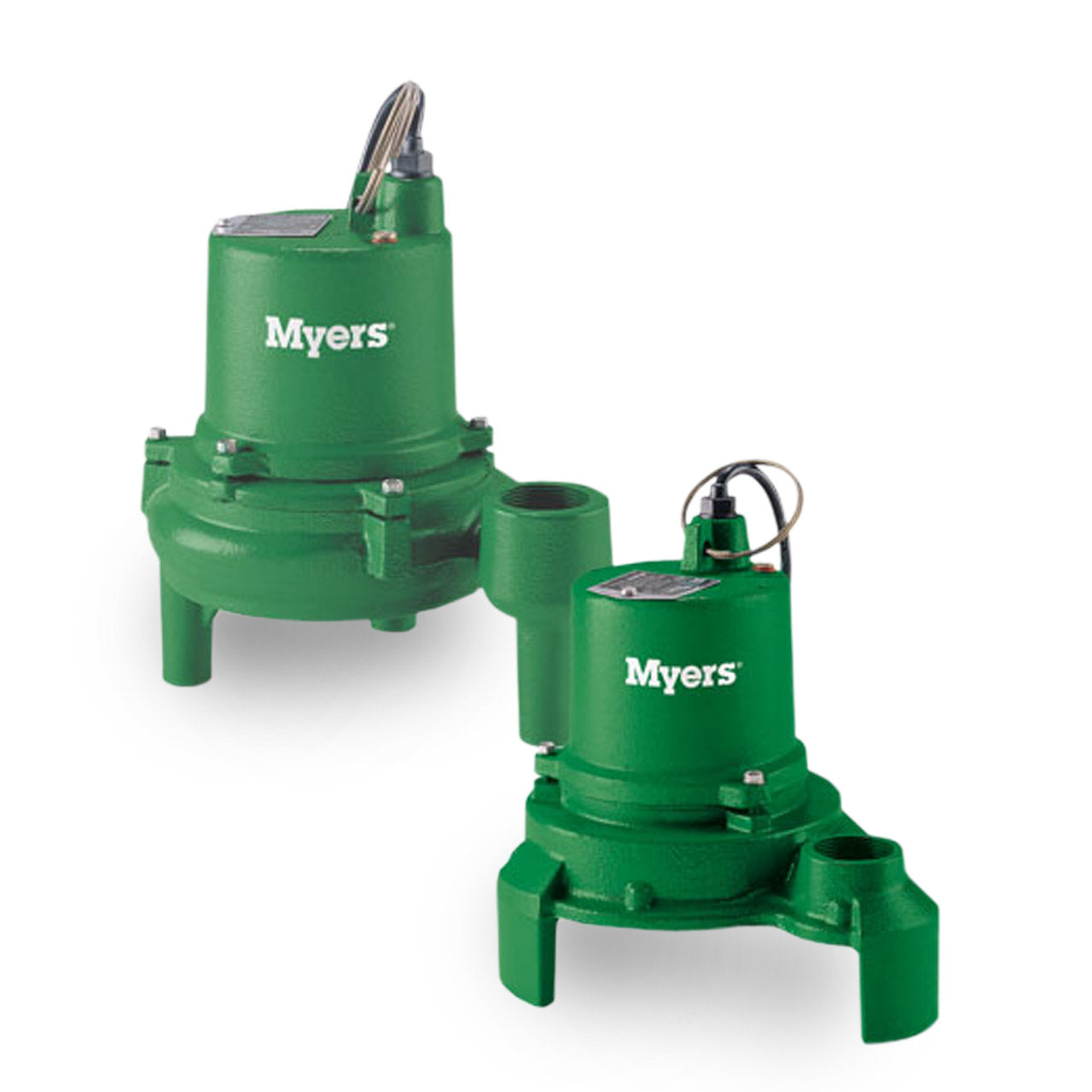

Myers ME3 Effluent Pump Description
The Myers ME3 Series Submersible Effluent Pumps are constructed of the most durable combination of materials to withstand the harshest environments. The ME3 is available with a recessed impeller for high-head applications or an enclosed impeller for high-flow installations. Available in tethered automatic piggyback models or manual models for use with external controls.
Myers ME3 Effluent Pump Typical Applications
- Effluent Removal
- Sump Drainage
- Water Transfer
- Flood Control
Myers ME3 Effluent Pump Features
- Maximum Heat-Handling: Durable, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation
- Powerful Starts: High-Torque, No Starting Switches or Relays to Wear Out
- Thermal Protection: Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature
- Long-Lasting Motor: Lower Ball Bearing Eliminates Sleeve Bearing Wear and Reduces Motor Wear
- Manual Operation: Tethered Automatic Models can be Operated Manually by Unplugging Piggyback Switch and Plugging Pump Directly into Outlet
Specifications
Specifications
Myers ME3H-21 Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60 Hz
- HORSEPOWER: 0.33 HP
- AMP DRAW (full load): 6.0
- MOTOR TYPE: Oil-Filled Shaded Pole w/ Built-In Thermal Overload Protection
- RPM: 1550
- MAXIMUM HEAD: 36'
- MAXIMUM CAPACITY: 34 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Simplex 24" Duplex 36"
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- IMPELLER TYPE: Engineered Thermoplastic, Recessed
- CORD LENGTH: 20'
- CORD SIZE: 16/3; Type: SJTW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60C)
Myers ME3 Effluent Pump Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers ME3 Series Product Resources
Download Myers ME3 Series Specification Data
