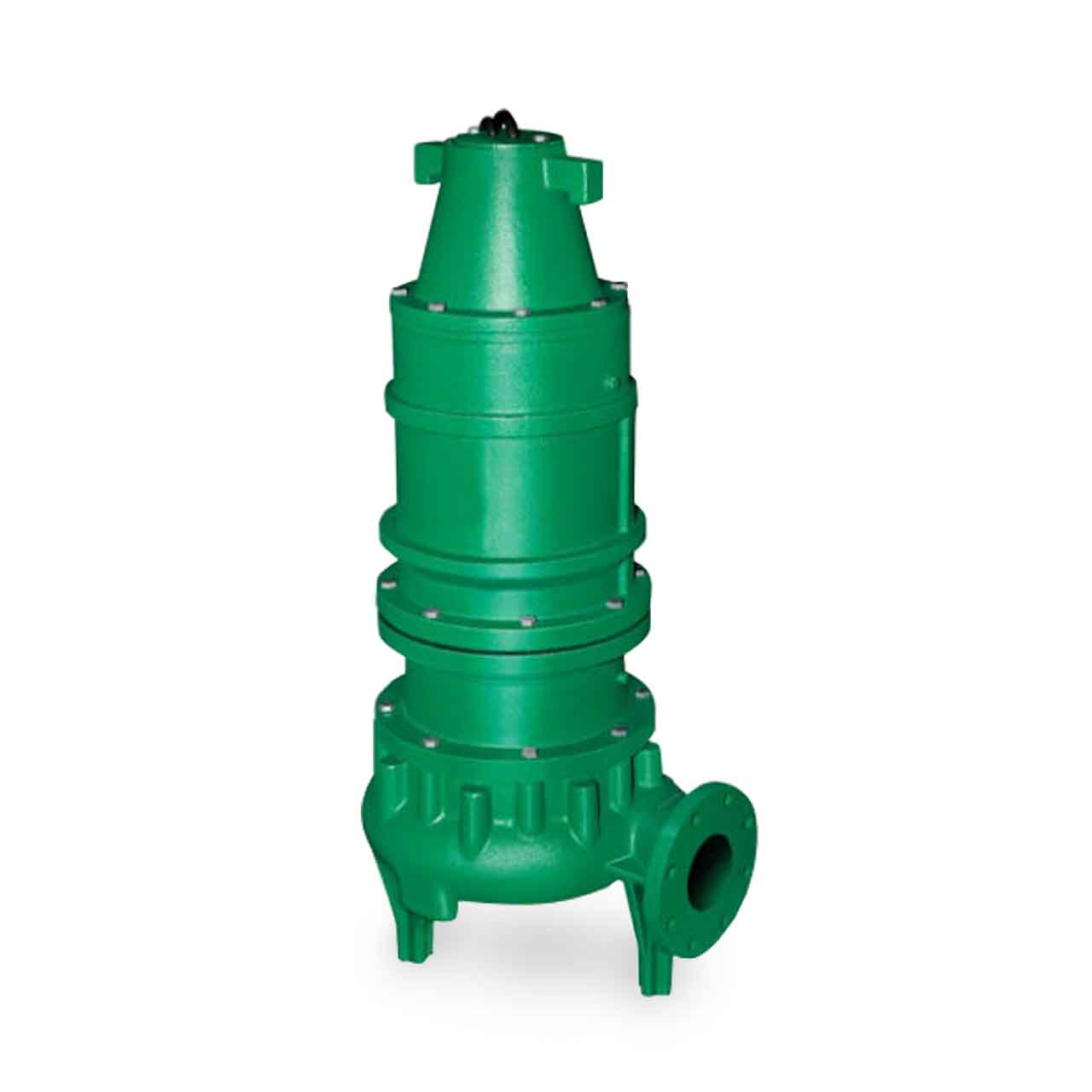

Myers 4RC200M4-43 Solids Handling Wastewater Pump 20 HP 460V 3PH

Myers 4RC200M4-43 Solids Handling Wastewater Pump 20 HP 460V 3PH

Usually ships within 5 weeks

SKU : MYR26640F035

In Stock Quantity:0

:
Brand : Myers
$22,752.00 USD
Shipping calculated at checkout.

Description


Myers Model 4RC Solids Handling Pump Description

The Myers 4RC and 4RCX (hazardous location) Submersible Wastewater Pumps are the right choice when difficult to pump fibrous or stringy solids are to be expected. The 4RC/4RCX Series provides smooth, vibration-free operation when operating at heads higher than peak efficiency.The pump is for use in municipal lift stations, treatment plants and industrial wastewater applications

Myers Model 4RC Solids Handling Pump Typical Application

  • Municipal Lift Stations
  • Treatment Plants
  • Industrial Waste Water Applications

Myers Model 4RC Solids Handling Pump Features

  • Cable Entry System Provides Triple Seal Protection, Cable Jacket Sealed by Compression Grommet, Individual Wires Sealed by Epoxy Potting and Terminal Board Seperates Motor Chamber from Cord Cap.
  • Heat Sensor Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled.
  • Shaft Seals Double Tandem Mechanical Shaft Seals Protect Motor. Oil-Filled Seal Chamber Provides Continuous Lubrication.
  • Seal Leak Probes Detect Water in Seal Housing and Activate Warning Light in Control Panel.
  • Volute Case Handles 3" Solids. Completely Open from Inlet to Discharge. 4" ANSI 125 lb. Flange.
  • Recessed Impeller Handles Stringy Trash and Slurries without Clogging or Binding. Pump-Out Vanes Help Keep Trash from Seal; Reduces Pressure at Seal Faces.
  • Sleeve Bearing takes Radial Shock Load and Provides Flame Path.
  • Heavy 416 SST Shaft Corrosion Resistant .
  • Motor Stator Heat Shrunk into Housing for Perfect Alignment and Best Heat Transfer. Oil-Filled Motor Conducts Heat and Lubricates Bearings.
  • Ball Bearings Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.

Specifications

Myers 4RC200M4-43 Solids Handling Pump Technical Details

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 20 HP
  • AMP DRAW (full load): 30
  • MOTOR TYPE: Oil Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
  • RPM: 1750
  • MAXIMUM HEAD: up to 120'
  • MAXIMUM CAPACITY: up to 11000 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 4.0" Horizontal
  • MAXIMUM SOLIDS HANDLING SIZE: 3.0"
  • IMPELLER TYPE: Ductile Iron, Class 65, ASTM A536, Recessed Impeller
  • CORD SIZE: 8-4 SOOW
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM AMBIENT TEMPERATURE: 140°F (60C)
  • CONTROL BOX REQUIRED

Myers Model 4RC Solids Handling Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers Model 4RC Solids Handling Pump Product Resources


Download Myers 4RC/4RCX Series Sale Brochure

Download Myers 4RC/4RCX Series Specification Sheet

Download Myers 4RC/4RCX Series Installation & Service Manual
