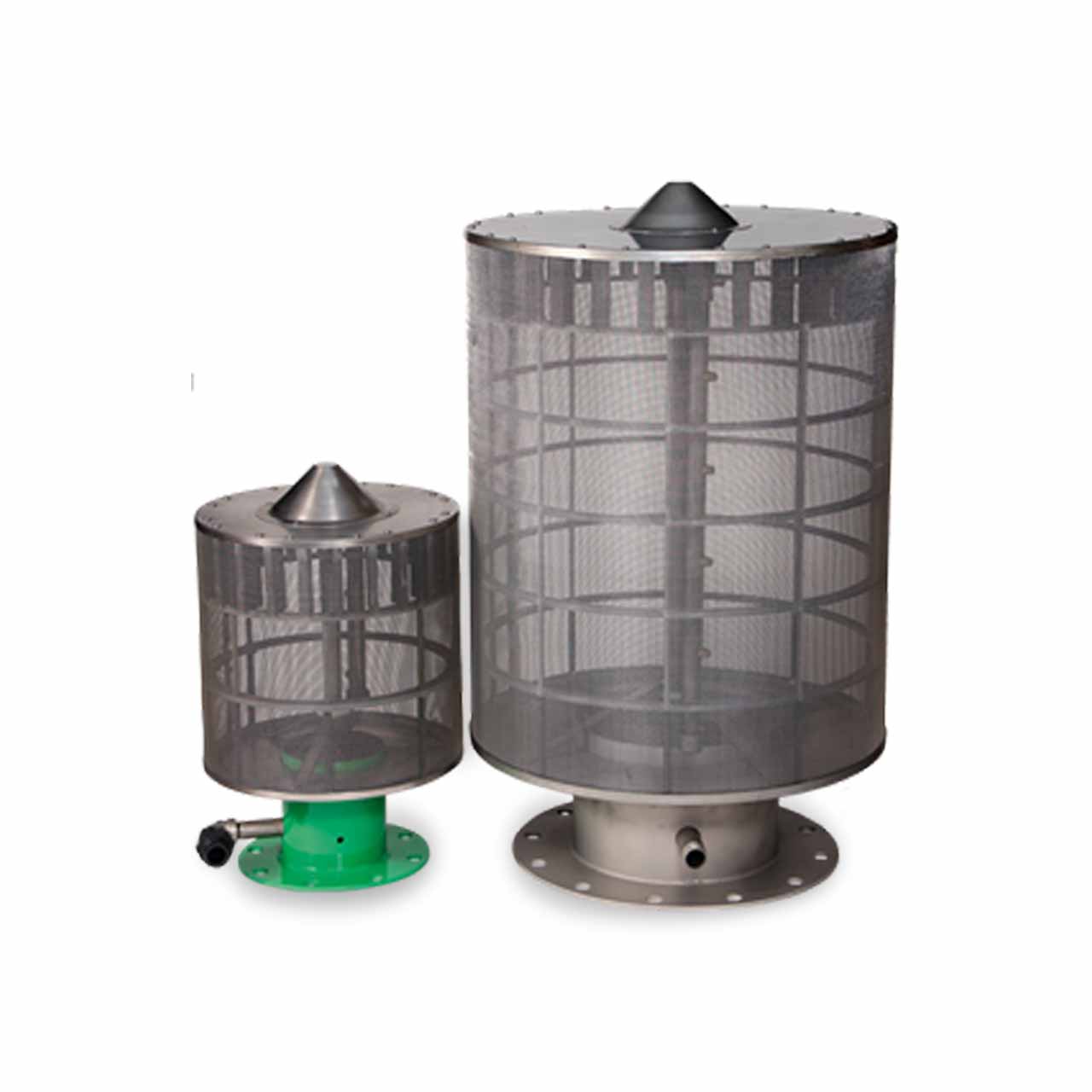

Lakos PC 1415 Series Self-Cleaning Intake Screen 560 GPM /Screen Outlet 6" ANSI Flange

Lakos PC 1415 Series Self-Cleaning Intake Screen 560 GPM /Screen Outlet 6" ANSI Flange

Usually ships within 2 weeks

SKU : LAKPC1415

In Stock Quantity:0

:
:
Brand : Lakos
$6,011.20 USD
Shipping calculated at checkout.

Description


Lakos PC - Self-Cleaning Intake Screen

LAKOS Self-Cleaning Pump Intake Screens protect pumps and other water system components from algae, leaves, moss, sticks and other troublesome organics and debris. Providing a continuous defense against impeller clogging, lost suction and other pump wear. Designed for use in open surface water applications such as lakes, rivers, ponds, reservoirs, canals, irrigation ditches, ect. Rugged and reliable internal backwash system blows debris off and away from the screen allowing water to flow freely to the pump intake. Better than stationary screens, which waste time and energy due to repeated clogging. Save energy, end routine maintenance and protect the environment with LAKOS PC Self-Cleaning Pump Intake Screens.

Lakos PC - Self-Cleaning Intake Screen Features

  • Wide Range of Application: Rivers, Effluent Ponds, Sumps, Lakes, Streams, Canals and More!
  • Protects Against Pump and Impeller Damage
  • Saves Energy through Maintaining Pump Efficiency
  • No Manual Cleaning or Routine Shut Downs
  • Protects the Surrounding Environment from Pump Intakes
  • Outlet Pipe Material: (E= Polyester Powder Coated Carbon Steel, S= Stainless Steel)

Specifications

Lakos PC - Self-Cleaning Intake Screen Specifications

  • MODEL PC141510S:
    • MAXIMUM FLOW RATE: 560 GPM (130m³/hr)
    • SCREEN MESH: 10
    • REQUIRED BACKWASH LINE SIZE: 1-1/4"
    • REQUIRED BACKWASH PRESSURE AT SCREEN: 60-80 psi (4.1-5.5 bar)
    • EXPECTED BACKWASH FLOW RATE: 15 gpm (3.5 m³/hr)
    • SCREEN OUTLET: 6" ANSI Flange; Overall Length: 24"
  • MODEL PC141518S:
    • MAXIMUM FLOW RATE: 560 GPM (130m³/hr)
    • SCREEN MESH: 18
    • REQUIRED BACKWASH LINE SIZE: 1-1/4"
    • REQUIRED BACKWASH PRESSURE AT SCREEN: 60-80 psi (4.1-5.5 bar)
    • EXPECTED BACKWASH FLOW RATE: 15 gpm (3.5 m³/hr)
    • SCREEN OUTLET: 6" ANSI Flange; Overall Length: 24"
  • MODEL PC141530S:
    • MAXIMUM FLOW RATE: 400 GPM (90m³/hr)
    • SCREEN MESH: 30
    • REQUIRED BACKWASH LINE SIZE: 1-1/4"
    • REQUIRED BACKWASH PRESSURE AT SCREEN: 60-80 psi (4.1-5.5 bar)
    • EXPECTED BACKWASH FLOW RATE: 15 gpm (3.5 m³/hr)
    • SCREEN OUTLET: 6" ANSI Flange; Overall Length: 24"


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Lakos PC - Self-Cleaning Intake Screen Product Resources


Download Lakos PC - Self-Cleaning Intake Screen Brochure

Download Lakos PC - Self-Cleaning Intake Screen Tri-Fold Brochure

Download Lakos Agriculture Irrigation Filtration Catalog
