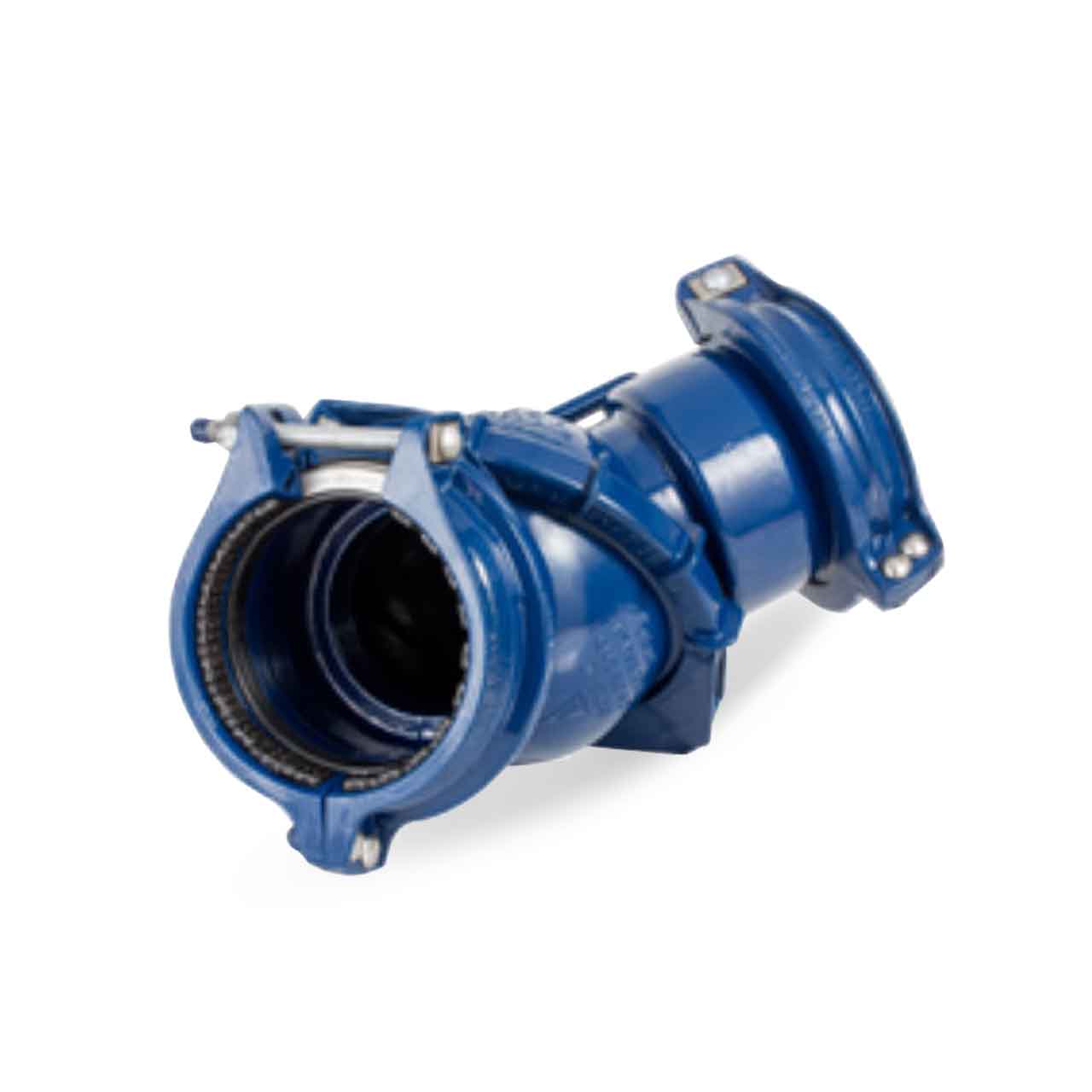

Hymax Grip 892-56-06165-16 ND 6.0" EPDM SwivelJoint

Hymax Grip 892-56-06165-16 ND 6.0" EPDM SwivelJoint

Usually ships within 1 week

SKU : HMX892-56-06165-16

In Stock Quantity:0

:
Brand : Hymax
$2,270.81 USD
Shipping calculated at checkout.

Description

HYMAX GRIP SwivelJoint can connect and restrain two pipes at any angle from 0° to 90°, providing an efficient solution for field situations where irregular angle between pipes exist. A replacement pipe and one coupling complement the SwivelJoint installation.

Based on the market-leading HYMAX GRIP restraint by Hymax, this one-of-a-kind wide-range product includes all of its advantages: ready to use, stab-fit design; unique radial gripping system that prevents pipe motion; universal gripping teeth that fit metal and plastic pipes; up to 4° dynamic deflection per end that reduces future pipe damage, a patented hydraulically-assisted gasket with 2-stage sealing and more.

Hymax Grip SwivelJoint Features

  • 892-56-06165-16; 6.0" EPDM SwivelJoint
  • Unique Product with One Swiveling End
  • Joins and Restrains A Wide Range of Piping Types and Diameters, at any Angle from 0° to 90°
  • Unique Radial Gripping System Prevents Pipe Motion
  • Universal Gripping Teeth Fit Metal and Plastic Pipes
  • Ready to use, Stab-Fit Design
  • Allows 4° Dynamic Deflection Per End, Reducing Future Damage
  • Durable Ductile Iron Body
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing

Specifications

Hymax Grip SwivelJoint Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
  • SIZE: 6.0" Nominal Diameter Pipe Size
  • PIPE O.D. RANGE: 6.50 -7.20
  • WORKING PRESSURE: 232 PSI
  • RATED PRESSURE: 350 PSI
  • TORQUE: 60 FT-LBS
  • MATERIALS:
    • END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18
    • CENTER RING: Ductile Iron Casting ASTM A536 Grade 65-45-12
    • GASKETS: EPDM and NBR Available, Meet International Standards for Contact with Drinking Water
    • GRIP CHAIN: AISI 440 2B
    • BRIDGE: AISI 304 Stainless Steel
    • SPHERICAL SPACERS: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
    • NUTS, BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax Grip SwivelJoint Product Resources


Download HYMAX Grip Family Brochure

Download HYMAX Grip SwivelJoint Specifications

Download HYMAX Grip SwivelJoint Installation Instructions
