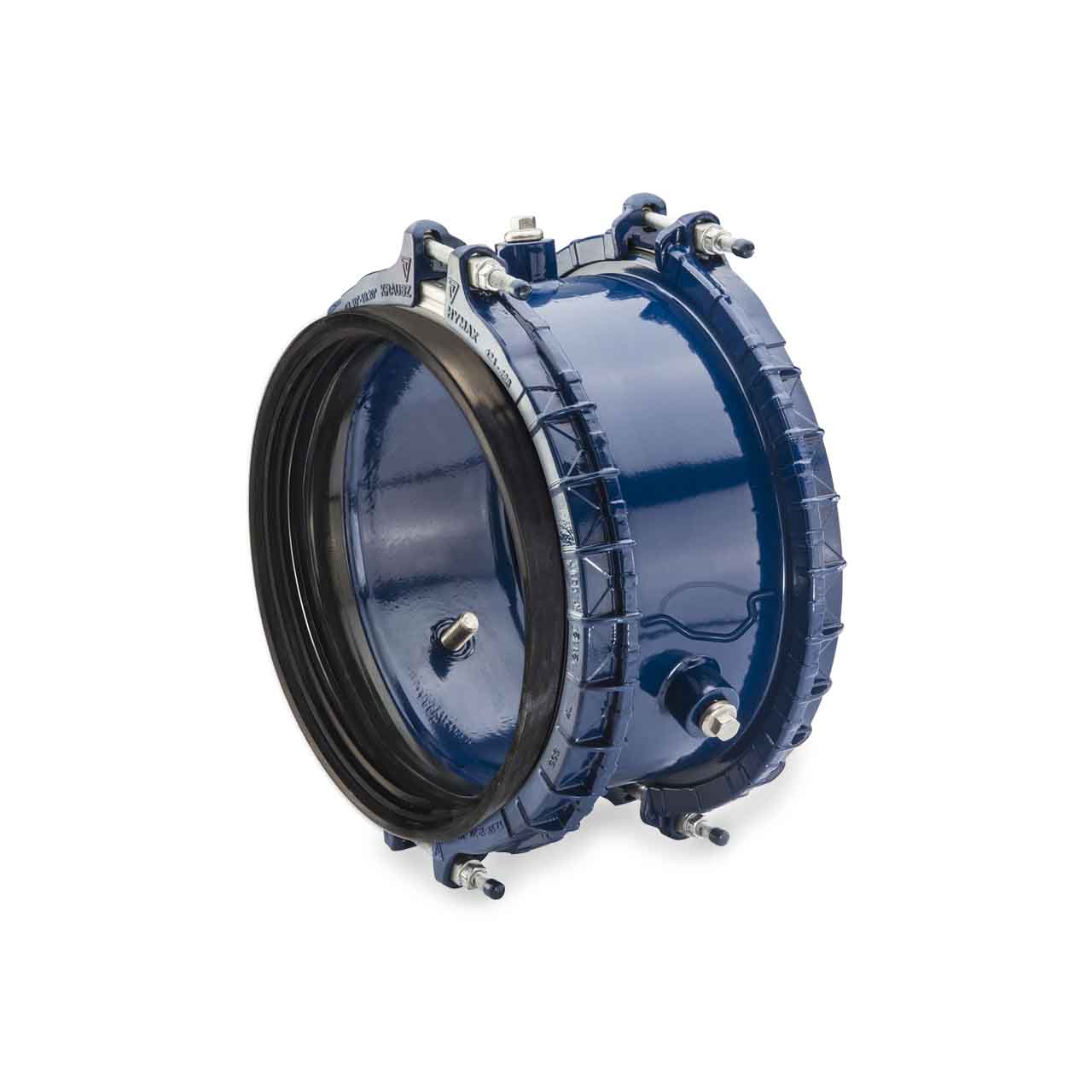

Hymax 860-56-0488-16P ND 18" EPDM Coupling 19.20-21.30 O.D.

Hymax 860-56-0488-16P ND 18" EPDM Coupling 19.20-21.30 O.D.

Usually ships within 1 week

SKU : HMX860-56-0488-16P

In Stock Quantity:0

:
Brand : Hymax
$3,670.11 USD
Shipping calculated at checkout.

Description

HYMAX® HLD COUPLING 14″-60″ offers innovative engineering and design, enabling fast stab-on installation, improving workers’ safety and eliminating under-digging and losing bolts in the mud.

Featuring:

  • Only 4 Bolts!
  • Extra Wide Range of 2.1"
  • Up to 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
  • Suitable for Most Types of Pipes - Ductile Iron, Cast Iron, Steel, PE, PVC, AC
  • Maximum Working Temperature of 125°F

Its unique advantages, along with its outstanding flexibility and extreme durability, make the HYMAX® HLD the cost-effective, high-performance choice for a wide range of field applications. HYMAX game-changing wide-range couplings have been proven in millions of installations in North America.

Hymax Large Diameter Coupling Features

  • 860-56-0488-16P; 18" EPDM Coupling
  • Game-Changing Wide-Range Coupling, Proven in Over 1M Installations in the US
  • Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
  • Patented No-Tear Flip Gasket for Easy Installation (up to size 24") HLD 2
  • Lightweight Construction Enables Fast and Easy Installation
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
  • One Product can Connect Pipes of Two Different Materials

Specifications

Hymax Large Diameter Coupling Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
  • SIZE: 18" Nominal Diameter Pipe Size
  • PIPE O.D. RANGE: 19.20 - 21.30
  • WORKING PRESSURE: 232 PSI
  • RATED PRESSURE: 350 PSI
  • TORQUE: 150 FT-LBS
  • MATERIALS:
    • END RINGS: ASTM A283/A283M Grade C Steel
    • CENTER RING: ASTM A283/A283M Grade C Steel
    • GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
    • BRIDGE: AISI 304 Stainless Steel
    • SPHERICAL SPACERS: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax Large Diameter Coupling Product Resources


Download HYMAX Large Diameter Coupling Brochure

Download HYMAX Large Diameter Coupling Specifications

Download HYMAX Large Diameter Coupling Installation Instructions
