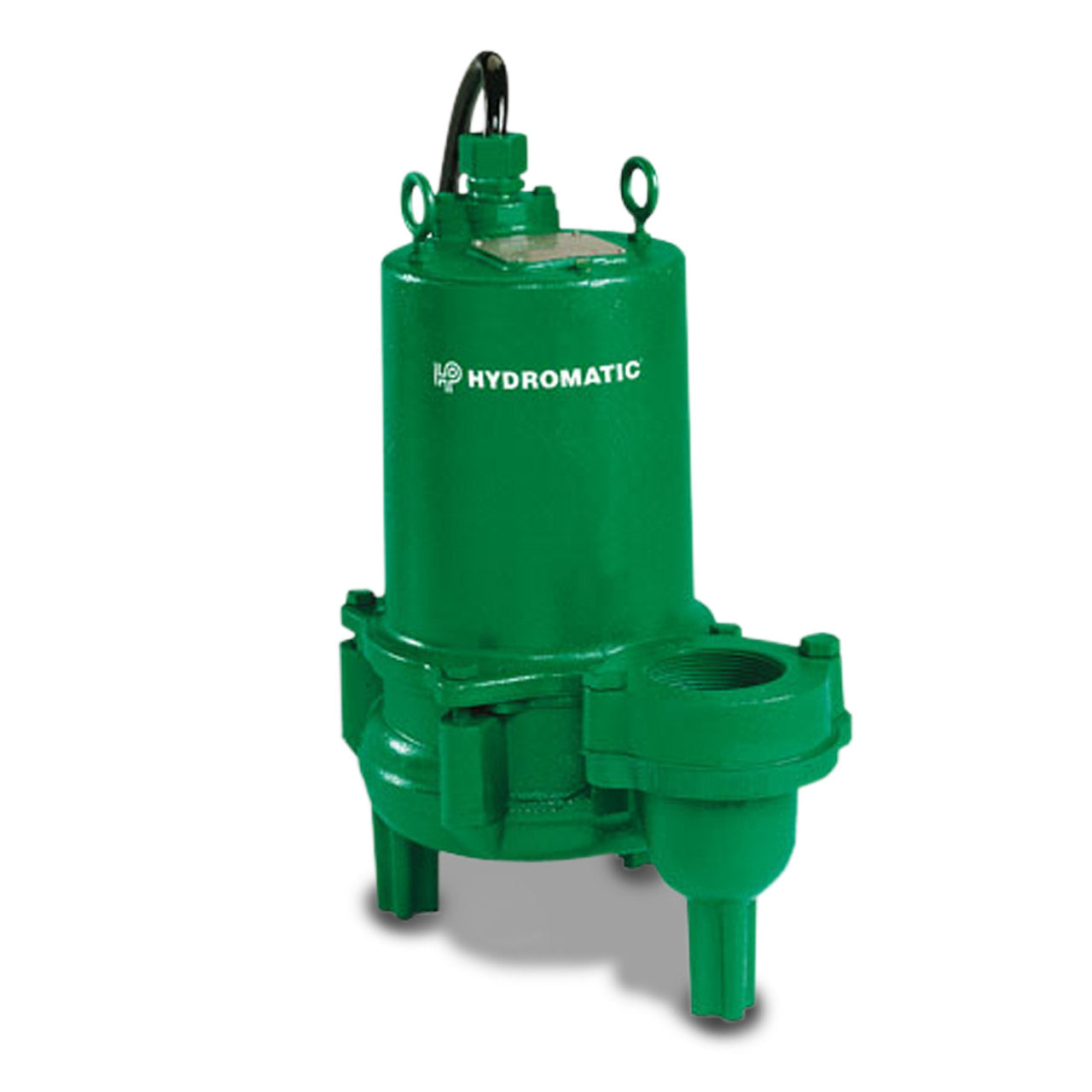

Hydromatic SB3S300M4-4 Submersible Sewage Pump 3.0 HP 460V 3PH Manual 35' Cord

Hydromatic SB3S300M4-4 Submersible Sewage Pump 3.0 HP 460V 3PH Manual 35' Cord

Usually ships within 5 weeks

SKU : HTC518481097

In Stock Quantity:0

:
Brand : Hydromatic Pump
$6,136.00 USD
Shipping calculated at checkout.

Description

Hydromatic Pump Logo

Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.

Hydromatic SB3S300M4-4 Submersible Sewage Pumps Description

Hydromatic SB3S Submersible Sewage pumps are suited to wet-well installation in a wide variety of municipal, industrial and building trades applications.

Hydromatic SB3S Typical Application

  • Municipal Sewage Lift Stations
  • Industrial Sewage Transfer
  • Dewatering of Storm Water

Hydromatic SB3S Superior Features

  • Oil-filled motor for cooler operation, longer life, and less maintenance. The dielectric oil effectively dissipates heat and lubricates upper and lower ball bearings.
  • Standard construction is cast iron.
  • 300 Series stainless steel shafts.
  • 35' power cord has three conductor PVC jacket.
  • Field serviceable; pumps have 300 series stainless steel fasteners for easy tear down.
  • Semi-open, two-vane sewage type impellers have pump-out vanes on back shrouds to prevent stringy materials from building up around shaft and seal.
  • Manufactured with carbon and ceramic faced mechanical shaft seal for long leak proof life.
  • All units given complete hydraulic test run before shipping.

Specifications

Hydromatic SB3S300M4-4 Technical Details

  • BODY CONSTRUCTION: Cast Iron
  • HORSEPOWER: 3.0 HP
  • RPM: 1750
  • MAXIMUM HEAD: up to 35'
  • MAXIMUM CAPACITY: up to 425 GPM
  • DISCHARGE PIPE SIZE: 3" NPT Vertical Discharge
  • MAXIMUM SOLIDS HANDLING SIZE: 2-1/2"
  • CORD LENGTH: 35' Power Cord
  • CORD SIZE: 14-4; Type: SOOW, W
  • AMP DRAW (full load): 4.8
  • VOLTAGE: 3ø, 460V
  • MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
  • IMPELLER CONSTRUCTION: Nonclogging, Two-Vane, Semi-Open Cast Iron
  • Section 100

Hydromatic SB3S Pump Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hydromatic SB3S Product Resources


Download Hydromatic SB3S Sales Brochure

Download Hydromatic SB3S Electrical Data

Download Hydromatic SB3S Technical Data

Download Hydromatic SB3S Performance Data

Download Hydromatic SB3S Installation & Service Manual

Download Hydromatic SB3S Specification Data
