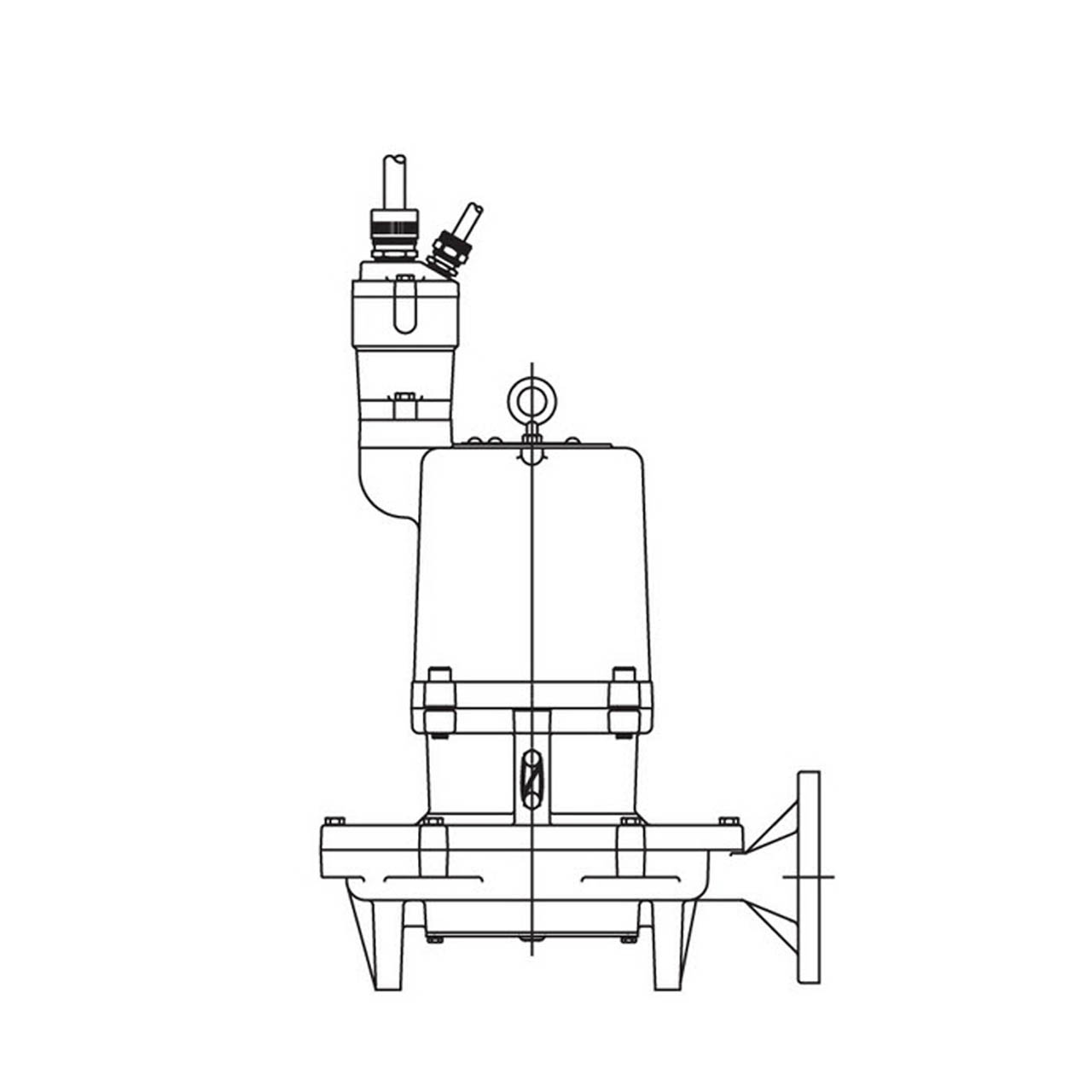

Hydromatic HPGFHX500EC Hazardous Submersible Sewage Grinder Pump 5.0 HP 230/460V 3PH Manual 10.13" imp. 35' cord

Hydromatic HPGFHX500EC Hazardous Submersible Sewage Grinder Pump 5.0 HP 230/460V 3PH Manual 10.13" imp. 35' cord

Usually ships within 5 weeks

SKU : HTC527010207

In Stock Quantity:0

:
Brand : Hydromatic Pump
$12,112.00 USD
Shipping calculated at checkout.

Description

Hydromatic Pump Logo

Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.

Hydromatic HPGFHX Hazardous Submersible Sewage Grinder Pump Description

Hydromatic HPGFHX Hazardous Submersible Sewage Grinder Pump is designed to meet the demands of Municipal, Commercial, Residential and Resort Areas.

Hydromatic HPGFHX Typical Application

  • Municipal
  • Commercial
  • Residential
  • Resort Area
  • Hazardous Locations Class I, Division 1, Groups C & D

Hydromatic HPGFHX Superior Features

  • One epoxy barrier, one compression fitting and two additional O-rings for maximum protection against wicking and water seepage into the motor housing.
  • The heavy-duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
  • Electrical motor design combines the advantages of high torque output with optimum running efficiency engineered specifically for grinder operation.
  • The stator is secured to the motor housing by means of stator bolts which ensure ease of maintenance if the need ever arises.
  • Standard stainless steel shaft in grinder pump.
  • Dual seals for maximum moisture protection.
  • Moisture detection probe located in seal chamber.
  • Exclusive “Dual Cutter” design cuts solids to smallest particle size thereby greatly reducing clogging, roping, or binding.
  • Multivane, semiopen impeller.

Specifications

Hydromatic HPGFHX500EC Technical Details

  • BODY CONSTRUCTION: Class 30 Cast Iron
  • HORSEPOWER: 5.0 HP
  • RPM: 1750
  • MAXIMUM HEAD: up to 98'
  • MAXIMUM CAPACITY: up to 165GPM
  • DISCHARGE PIPE SIZE: 3" 135# Flange Horizontal Discharge
  • CORD LENGTH: 35' Standard
  • CORD SIZE:12-4; Type: SOOW, W
  • AMP DRAW (full load): 15.3
  • VOLTAGE: 3ø, 230/460V
  • MAXIMUM LIQUID TEMPERATURE: 140°F
  • IMPELLER CONSTRUCTION: Red Brass #85-5-5-5, ASTM B584-836
  • IMPELLER SIZE: 10.13"
  • Section 200

Hydromatic HPGFHX Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hydromatic HPGFHX Product Resources


Download Hydromatic HPGFHX Sales Brochure

Download Hydromatic HPGFHX Electrical Data

Download Hydromatic HPGFHX Technical Data

Download Hydromatic HPGFHX Performance Curve

Download Hydromatic HPGFHX Installation & Service Manual

Download Hydromatic HPGFHX Dimensional Data

Download Hydromatic HPGFHX Specification Data
