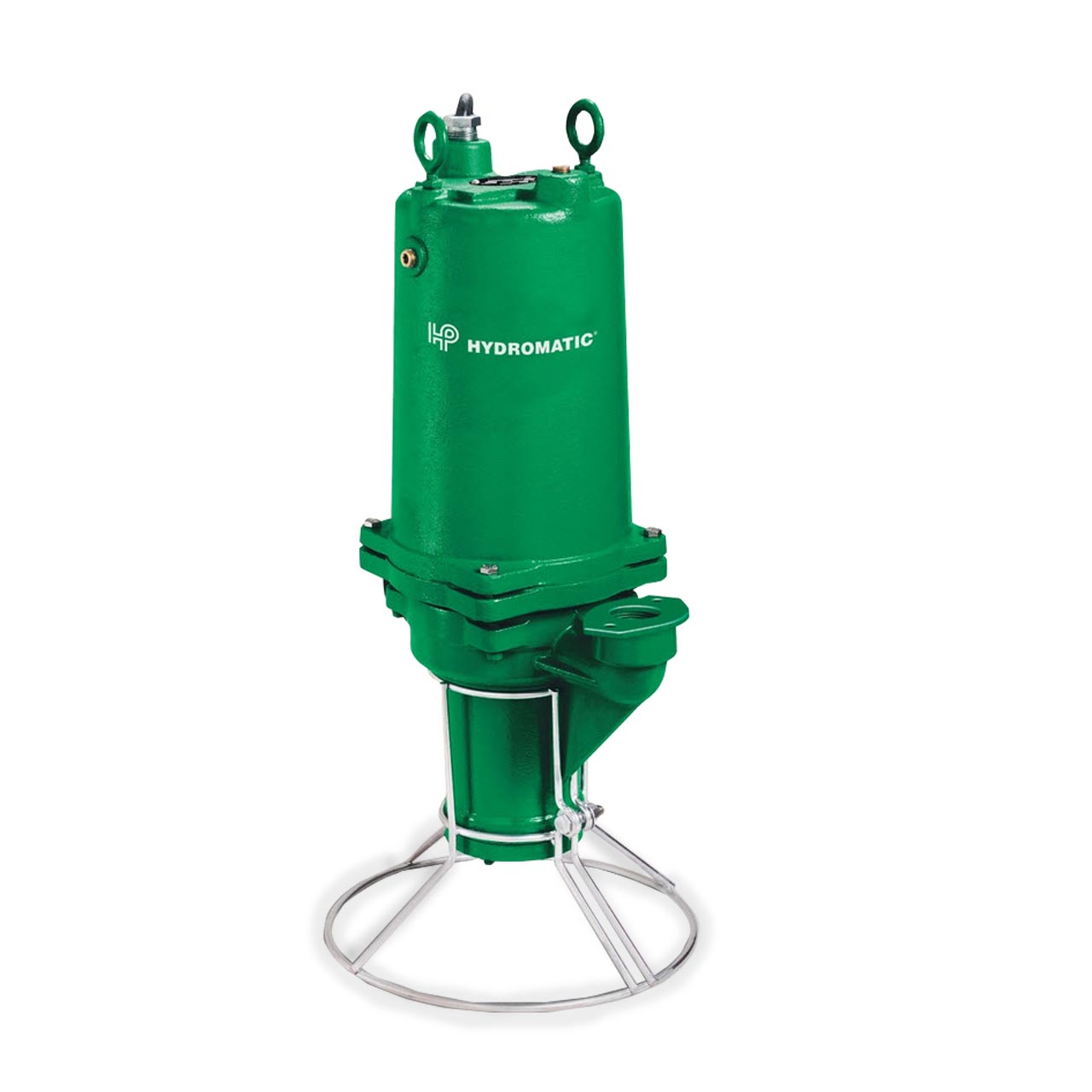

Hydromatic HPD200A2-4 Submersible Positive Displacement Grinder Pump Automatic 2.0 HP 230V 1PH

Hydromatic HPD200A2-4 Submersible Positive Displacement Grinder Pump Automatic 2.0 HP 230V 1PH

Discontinued or no longer available

SKU : HTC526320017

In Stock Quantity:0

:
Brand : Hydromatic Pump
Shipping calculated at checkout.

Description

Hydromatic Pump Logo

Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.

Hydromatic HPD200 Submersible Sewage Positive Displacement Grinder Pump Description

Hydromatic HPD200 Submersible Sewage Positive Displacement Grinder Pump is specifically designed to meet the demands of Residential Wastewater and Sewage Applications.

Hydromatic HPD200 Typical Application

  • Residential Wastewater and Sewage
  • Low Pressure Sewer System Applications

Hydromatic HPD200 Superior Features

  • The heavy duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
  • The oil-filled motor provides superior cooling and permanent lubrication of bearings, low maintenance and extended service life. The 2 HP capacitor start motors provide maximum starting torque. Motor windings contain automatic thermal overload protection.
  • Constructed with a ceramic stationary face and a carbon rotating face, and is field proven for long service life.
  • 300 Series SST single lobe rotor.
  • Buna-N double helix stator.
  • Grinding cutter design cuts solids to smallest particle size, thereby greatly reducing clogging, roping or binding.

Hydromatic HPD200 Key Features

  • Engineered for low pressure sewer system applications
  • Available in complete package systems for quick installations
  • No control panel required
  • 1-1/4" NPT discharge pump with a vertical discharge that conquers capacities up to 17-1/2 gallons per minute and heads up to 220 feet
  • CSA Approved
  • Available configurations, rails and accessories:
    • Rail Systems Available
    • Controls and Accessories Available
  • Wire Mounting Stand Not Included

Specifications

Hydromatic HPD200A2-4 Technical Details

  • BODY CONSTRUCTION: Class 30 Cast Iron
  • HORSEPOWER: 2.0 HP
  • RPM: 1750
  • MAXIMUM HEAD: up to 230'
  • MAXIMUM CAPACITY: up to 19 GPM
  • DISCHARGE PIPE SIZE: 1.25" NPT Discharge
  • CORD LENGTH: 20' Standard; Type HPG/SOOW
  • AMP DRAW (full load): 12.0
  • VOLTAGE: 1ø, 230V
  • MAXIMUM LIQUID TEMPERATURE: 140°F
  • Section 200

Hydromatic HPD200 Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hydromatic HPD200 Product Resources


Download Hydromatic HPD200 Sales Brochure

Download Hydromatic HPD200 Electrical Data

Download Hydromatic HPD200 Technical Data

Download Hydromatic HPD200 Performance Curve

Download Hydromatic HPD200 Installation & Service Manual

Download Hydromatic HPD200 Dimensional Data

Download Hydromatic HPD200 Specification Data
