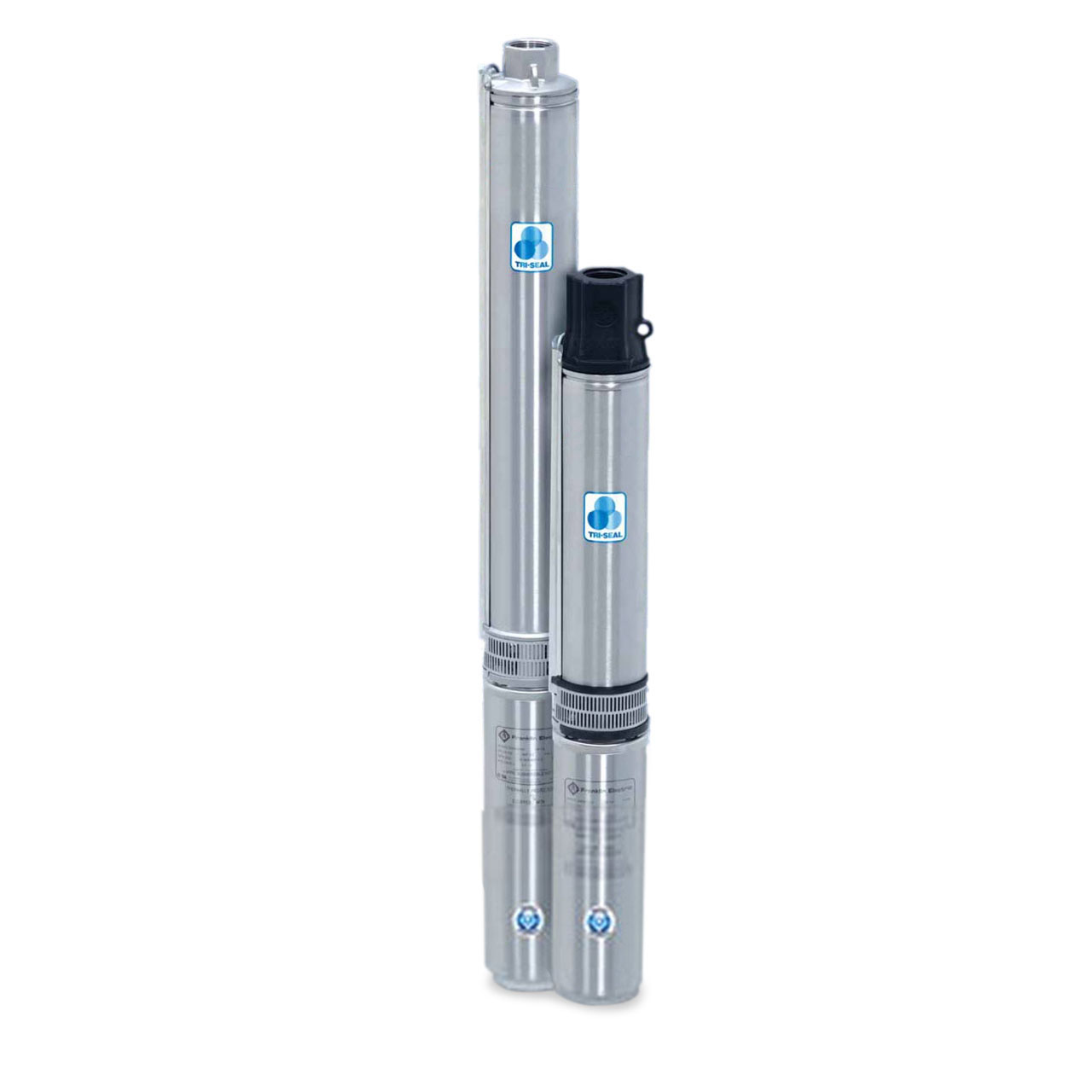

Franklin Electric FPS 4400 Tri-Seal 10FA1P4-2W230 Submersible Well Pump & Motor 10 GPM 1.0 HP 230V 1PH 2-Wire

Franklin Electric FPS 4400 Tri-Seal 10FA1P4-2W230 Submersible Well Pump & Motor 10 GPM 1.0 HP 230V 1PH 2-Wire

Usually ships within 1 week

SKU : FEC93781020

In Stock Quantity:0

:
:
Brand : Franklin Electric
$1,542.60 USD
Shipping calculated at checkout.

Description

Franklin Electric™

Franklin Electric FPS 4400 Tri-Seal Submersible Pump

The standard FPS 4400 4-inch submersible pump features the new TRI-SEAL floating stage system. This new stage system improves efficiency and protects against wear when pumping abrasives (sand).

Franklin Electric FPS 4400 Tri-Seal Submersible Pump Features

  • 300 Series Stainless Steel Hub Floats with the Impeller Maintaining a Positive Seal
  • Phenolic Washer Provides Down-Thrust Protection
  • Acetal Impeller Provides High Efficiency Performance and Abrasion Resistance
  • Modified PPO Diffuser and Disc - Proven Abrasion Resistant Material
  • Floating Stage Design Allows Impeller to Float Independently
  • Removable, Spring-Loaded Check Valve
  • Maximum Water Temperature: 120°F / 49°C
  • Ceramic Shaft Sleeve and Rubber Discharge Bearing Protect Shaft and Eliminate Sand Wear
  • Powered by Franklin Electric Corrosion-Resistant Super Stainless 4" Submersible Motors
  • Patented Impeller Hub Seal System Seals Radially and Axially to Prevent Fluid Recirculation, Providing High Performance in the Harshest Conditions.

Specifications

Franklin Electric 4400 Tri-Seal 10FA1P4-2W230 Submersible Pump Specifications

    Water Well Motors
  • BODY CONSTRUCTION: Thermoplastic
  • HORSEPOWER: 1.0 HP
  • VOLTAGE: 1ø, 230V
  • RPM: 3450
  • MAX AMBIENT TEMPERATURE: 120°F/49°C
  • LEAD: 2-wire
    • Water Well Pump Ends
  • DISCHARGE SIZE: 1.25” FNPT
  • NOMINAL FLOW RATING: 10 GPM
  • HORSEPOWER: 1.0 HP
  • MAXIMUM CAPACITY: 15 GPM
  • MAXIMUM HEAD: 450’
  • STAGES: 11
  • IMPELLER DESIGN: Floating Stack
  • IMPELLER MATERIAL: Acetal
  • BODY MATERIAL: Thermoplastic
  • MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Franklin Electric 4400 Tri-Seal 10 GPM Submersible Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric FPS 4400 Tri-Seal Submersible Pump Product Resources


Download Franklin Electric FPS 4400 Tri-Seal Submersible Pump Brochure

Download Franklin Electric FPS 4400 Tri-Seal Submersible Pump Catalog Pages

Download Franklin Electric Submersible Pumps Manual
