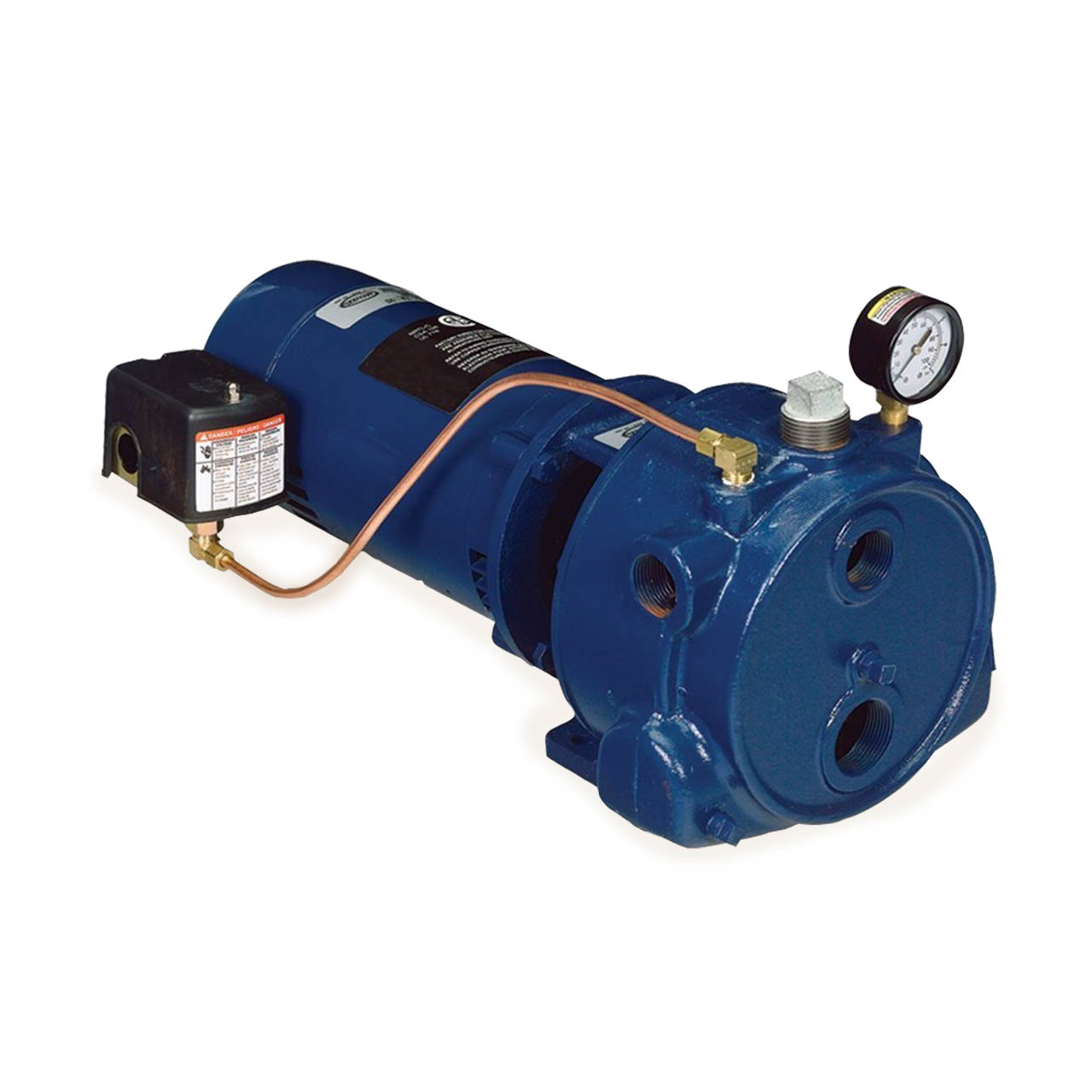

Franklin Electric FP07CI-C 91140007 Convertible Pro (RM2) Series Jet Pump 0.75 HP 115/230V 1PH

Franklin Electric FP07CI-C 91140007 Convertible Pro (RM2) Series Jet Pump 0.75 HP 115/230V 1PH

Ships within 24 hours

SKU : FEC91140007

In Stock Quantity:2

:
:
Brand : Franklin Electric
$1,259.05 USD
Shipping calculated at checkout.

Description

Franklin Electric

Franklin Electric Convertible Pro (RM2) Series Jet Pump Description

The convertible jet pump Pro (RM2) series is equipped with a stainless-steel impeller for high performance and longevity. Capable of lifting from 100' and delivering up to 23 gallons per minute from either shallow well or deep well make this series the perfect choice.

Franklin Electric Convertible Pro (RM2) Series Jet Pump Features

  • Heavy-Duty Cast Iron Case and Stainless-Steel Impeller Ensure Optimum Durability
  • Thermoplastic Diffuser is Molded for Efficiency and Dependability
  • Screw-In Injector for Easy Conversion from Shallow to Deep Well Installation
  • Shaft Coupling Designed for Easy Removal of Pump Motor
  • Mechanical Shaft Seal Ensures Leakproof Fit and Continuous Water Lubrication
  • High Service Factor 56C-Frame Motor for Maximum Performance
  • Hardware Kit Allows for Versatility of Installation and Includes Pressure Gauge, Plugs, Shallow Well Injector and Bypass Plug
  • Adjustable Pressure Switch is Factory Installed and Set at 30/50 PSI
  • Maximum Temperature of 140°F/60°C; 150 PSI Maximum Working Pressure
  • Connections: 1-1/4" NPT Suction / 1" NPT Drive Line

Specifications

Franklin Electric FP07CI-C Jet Pump Specifications

  • DISCHARGE SIZE: 1.0"
  • INLET SIZE: 1.25"
  • MAXIMUM CAPACITY: 60.3
  • MAXIMUM HEAD: 25
  • IMPELLER MATERIAL: Stainless Steel
  • BODY CONSTRUCTION: Cast Iron
  • HORSEPOWER: 0.75 HP
  • MOTOR TYPE: 56C Frame
  • VOLTAGE: 1ø, 115/230V
  • MAXIMUM LIQUID TEMPERATURE: 140 °F/60 °C
  • FULL LOAD AMPS: 14.8/7.4

Franklin Electric Convertible Pro (RM2) Series Jet Pump Performance


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric Convertible Pro (RM2) Series Jet Pump Resources


Franklin Electric Jet Pump Product Pages

Franklin Electric Convertible Pro Series Jet Pump Product Pages

Franklin Electric Convertible Pro Series Jet Pump Owner's Manual

Franklin Electric Convertible Pro Series Jet Pump Replacement Parts
