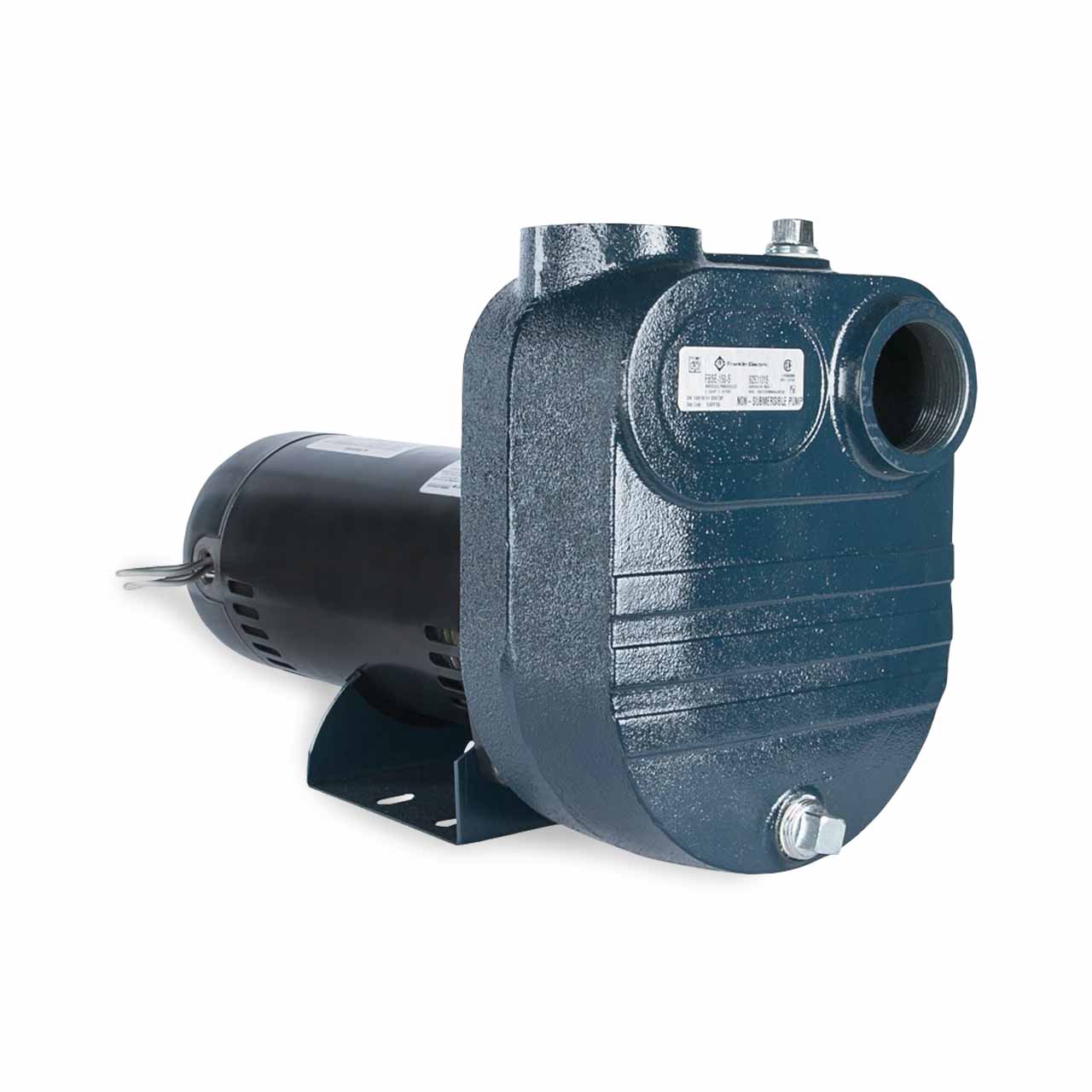

Franklin Electric FBSE-200-S FBSE Series Close-Coupled Self-Priming Pump 2.0 HP 230V 1PH

Franklin Electric FBSE-200-S FBSE Series Close-Coupled Self-Priming Pump 2.0 HP 230V 1PH

Usually ships within 1 week

SKU : FEC92931020

In Stock Quantity:0

:
:
Brand : Franklin Electric
$1,597.05 USD
Shipping calculated at checkout.

Description

Franklin Electric™

Franklin Electric FBSE Series Close-Coupled Self-Priming Pump Description

The FBSE Series Pumps are a close-coupled self-priming pump with durable cast iron construction, making them long-lasting in various applications. Thanks to its self-priming casing, the FBSE Series Pumps close-coupled self-priming is designed for simple operation and engineered to quickly respond once it has been filled with water.

Franklin Electric FBSE Series Close-Coupled Self-Priming Pump Features

  • Volute: Cast Iron Construction with Tapped Openings for Priming, Venting and Draining
  • Impeller: Semi-Open Cast Iron; Ideal for Handling Fertilizer, Salt Water, Dirty Water and other Liquids; Blind-Hole Tapped so Liquid will not Corrode the Shaft
  • Seal: Standard Carbon/Ceramic Faces, FKM Elastomers and 300 Series Stainless Steel Components
  • Motor: Reliable, Industry-Standard; Range of 1/2-3 HP; Higher than NEMA Service Factor

Franklin Electric FBSE Series Close-Coupled Self-Priming Pump Applications

  • Irrigation
  • Construction
  • Mining
  • Commercial
  • Municipal
  • Light Industrial
  • Residential

Specifications

Franklin Electric FBSE-200-S Close-Coupled Self-Priming Pump Specifications

  • DISCHARGE SIZE: 2.0" FNPT
  • INLET SIZE: 2.0" FNPT
  • MAXIMUM CAPACITY: 123 GPM
  • MAXIMUM HEAD: 75'
  • IMPELLER MATERIAL: Semi-Open Cast Iron
  • BODY CONSTRUCTION: Cast Iron
  • HORSEPOWER: 2.0 HP
  • MOTOR TYPE: 56J Frame
  • VOLTAGE: 1ø, 230V
  • MAXIMUM LIQUID TEMPERATURE: 120°F

Franklin Electric FBSE Series Close-Coupled Self-Priming Pump Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric FBSE Series Close-Coupled Self-Priming Pump Resources


Franklin Electric Close-Coupled Self-Priming Pump Product Page

Franklin Electric FBSE Close-Coupled Self-Priming Pump Catalog

Franklin Electric FBSE Series Close-Coupled Self-Priming Pump Owner's Manual
