Franklin Electric 5800070600 QD Pumptec Motor Protection Device 230V 1PH 1/3-1HP

Franklin Electric 5800070600 QD Pumptec Motor Protection Device 230V 1PH 1/3-1HP

Ships within 24 hours

SKU : FEC5800070600

In Stock Quantity:9

:
:
Brand : Franklin Electric
$287.04 USD
Shipping calculated at checkout.

Description

Franklin Electric™

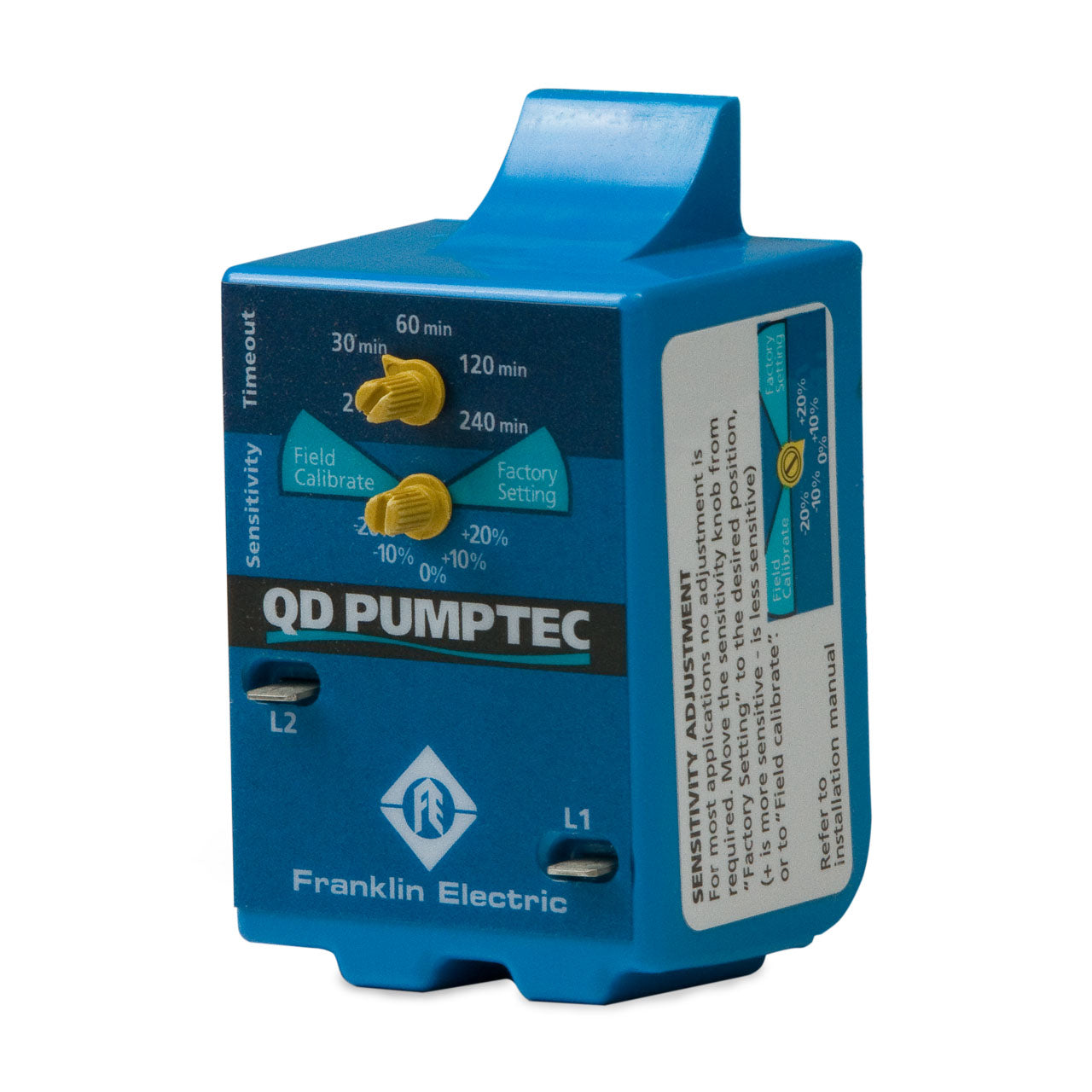

Franklin Electric QD Pumptec Motor Protection

Exclusively designed for Franklin QD Relay Control Boxes, QD Pumptec is a solid state sensing device that monitors motor load and incoming power to automatically shut off a Franklin single-phase, 3-wire motor when related fault conditions are detected. QD Pumptec protects the life of your 4-inch pump and reduces the odds that you will ever have to see the motor again.

QD Pumptec allows the user to choose the standard factory calibration for underload or to calibrate to a particular system. Control knobs make it easy to adjust sensitivity and timeout settings. QD Pumptec easily plugs into 3-wire QD Relay Control Boxes in minutes, without additional wiring or tools.

Franklin Electric QD Pumptec Single Phase Protection Device Features

  • Installs Inside QD Control Boxes
  • Monitors: Air Locked Pump, Broken Shaft, Clogged Well Screen, Drop in Water Level, High Voltage, Low Voltage, Low Yield Wells, Worn Pump Parts
  • Automatically Shuts Off Pump when Fault Conditions are Detected
  • Easy Calibration
  • Installation Without Tools

Specifications

Franklin Electric QD Pumptec Single Phase Protection Device Specifications

  • Protection Against
    • Air or Gas Locked Pump (Cavitation)
    • Broken Shaft or Coupling
    • Clogged Well Screen
    • Drop in Water Level
    • High Voltage
    • Low Voltage
    • Low Yield Wells
    • Worn Pump Parts
  • 1/3 to 1 HP Motor Protection
  •  230V
  • ± 20% SFL Sensitivity Adjustment
  • +10% Overvoltage Trip
  • -10% Undervoltage Trip
  • 2 to 240 Minute Adjustable Reset Timer

Franklin Electric QD Pumptec Single Phase Protection Device Specifications



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric QD Pumptec Single Phase Protection Device Resources


Franklin Electric Pumptec Family Brochure

Franklin Electric QD Pumptec Installation Manual
