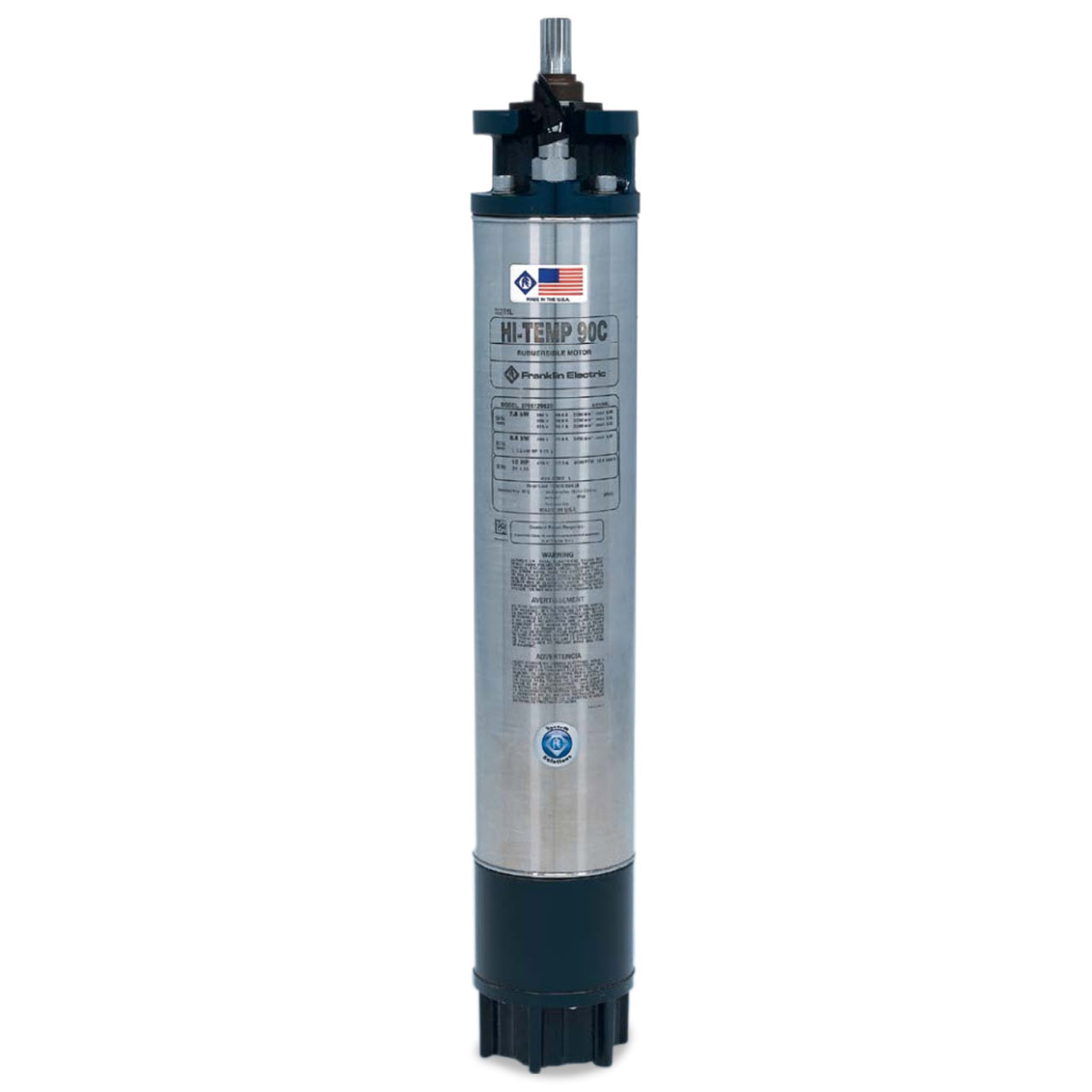

Franklin Electric 2766170103 Hi-Temp 90C Motor 6" 40-HP 460/380-Volt 60/50-Hz Three-Phase 3-Wire

Franklin Electric 2766170103 Hi-Temp 90C Motor 6" 40-HP 460/380-Volt 60/50-Hz Three-Phase 3-Wire

Usually ships within 1 week

SKU : FEC2766170103

In Stock Quantity:0

:
:
Brand : Franklin Electric
$13,616.40 USD
Shipping calculated at checkout.

Description

Franklin Electric™

Franklin Electric 6" Submersible Motors

Some pumping applications require more - and Franklin's Hi-Temp Motor line delivers just that. The Hi-Temp motor was designed and built in response to many requests for a motor that operates dependably in wells with high temperatures and/or low flow conditions.

The 6-inch Hi-Temp 90C motor utilizes a new, premium encapsulation process and new water soluble coolant to allow continuous operation in water temperatures of up to 90ºC. In addition , this design is capable of handling thrust loads 25% higher than a standard motor without using oil. Franklin's Hi-Temp 90C is the right choice for your demanding, high temperature well applications.

Franklin Electric 6" Submersible Motors Features

  • Up to 194 °F (90 °C) Ambient Temperature.
  • 100% Increase in Upthrust Capability at 30°C
  • 25% Increase in Downthrust Capability at 30°C
  • Wet Well, Reservoir, Low Flow Approved in 12” Diameter or Larger Wells with Ambient Water up to 87°F (30°C)
  • High Temperature Leads
  • Hermetically Sealed Stator
  • Innovative High Temperature Winding Encapsulation System
  • FES92 Exclusive Water Soluble, High Temperature Bearing Lubrication
  • Double-Flange NEMA Mounting for Ease of Handling and Pump Mounting
  • Stainless Steel Splined Shaft for Maximum Shaft/Coupling Contact
  • Full 3450 RPM 60Hz Design Point for Superior Pump Performance
  • Sand Fighter™ Sealing System
  • Franklin Electric’s Exclusive Water-Bloc™ Lead Connection
  • 316 SS and Wye-Delta - Consult Factory

Specifications

Franklin Electric 6" Submersible Motor Specifications

  • BODY CONSTRUCTION: 300 Series Stainless Steel
  • HORSEPOWER: 40 HP
  • VOLTAGE: 3ø, 460/380V
  • RPM: 3450
  • SERVICE FACTOR: 1.15/1.0
  • DOWNWARD THRUST (lbs): 10,000 lbs
  • MAX AMBIENT TEMPERATURE: 86°F/30°C
  • DUTY RATING: Continuous
  • FULL LOAD AMPS: 55.4
  • LEAD: 3-wire, XPLE

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Resources

Franklin Electric 6" Submersible Motor Product Resources


Franklin Electric 6 in Hi-Temp 90C Motor Brochure

Franklin Electric 6 in Hi-Temp 90C Motor Catalog Pages

Franklin Electric 60 Hz AIM Manual

Franklin Electric Motors Drives & Controls Catalog
