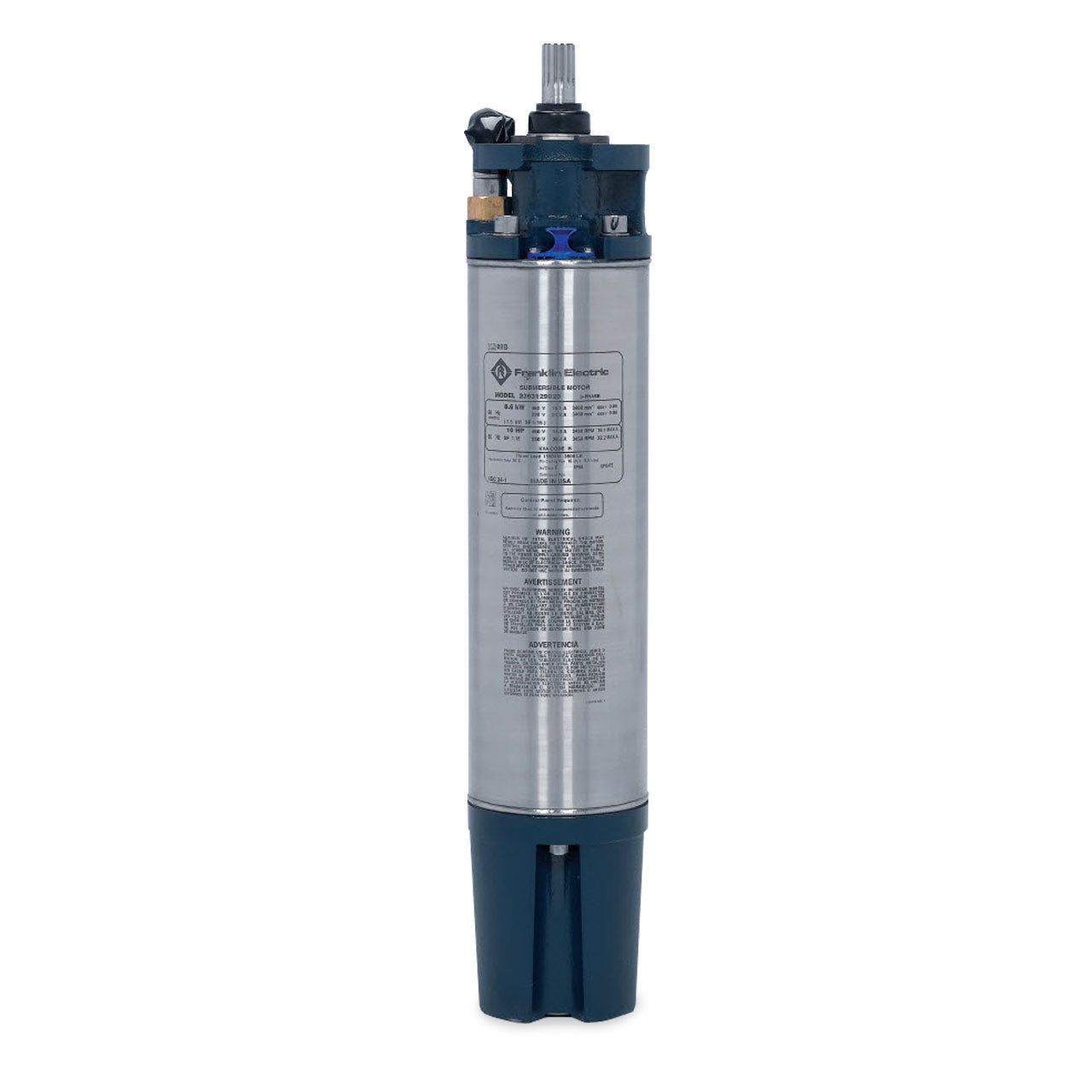

Franklin Electric 2363128120 Volt-X Sand Fighter Motor w/Subtrol 6" 10-HP 230/460-Volt 60-Hz Three-Phase 3-Wire

Franklin Electric 2363128120 Volt-X Sand Fighter Motor w/Subtrol 6" 10-HP 230/460-Volt 60-Hz Three-Phase 3-Wire

Usually ships within 1 week

SKU : FEC2363128120

In Stock Quantity:0

:
:
Brand : Franklin Electric
$3,108.00 USD
Shipping calculated at checkout.

Description

Franklin Electric™

Franklin Electric 6" Volt-X Submersible Motors

Franklin’s 6-inch submersible motors are typically used in large, demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last and come in a variety of construction options.

6-inch Volt-X motors are built with a unique dual voltage feature offering power supply flexibility. The motors utilize an innovative voltage change device that allows the motor to be connected for operation in either 230 V or 460 V, three-phase, 60 Hz power supplies. The voltage exchange device has been meticulously developed for ease of removal and a watertight seal every time.

Franklin Electric 6" Submersible Motor Application Data

6-inch Volt-X motors are built with a unique dual-voltage feature offering power supply flexibility.

Franklin Electric 6" Submersible Motors Feature

  • New Jam-Nut Style VCD Plug Device
  • Maximum Temperature Winding Wire NEMA Class 200
  • Anti-Track Self-Healing Resin System
  • Hermetically-Sealed Windings
  • Removable Water-Bloc™ Lead
  • Double Flange Design
  • Stainless Steel Splined Shaft
  • Kingsbury-Type Water Lubricated Thrust Bearing
  • Pressure-Equalizing Diaphragm
  • Sand Slinger
  • 3-Lead Configuration
  • Copper Bar Rotor
  • Full 3450 RPM Design Point
  • Filter Check Valve
  • Sand Fighter™ Models Available for Sandy Wells

Specifications

Franklin Electric 6" Volt-X Submersible Motor Specifications

  • BODY CONSTRUCTION: 304 Stainless Steel
  • HORSEPOWER: 10 HP
  • VOLTAGE: 3ø, 230/460V
  • RPM: 3450
  • SERVICE FACTOR: 1.15
  • DOWNWARD THRUST (lbs): 3500 lbs
  • MAX AMBIENT TEMPERATURE: 86°F/30°C
  • DUTY RATING: Continuous
  • LEAD: 3-wire, XPLE

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric 6" Submersible Motor Product Resources


Franklin Electric 6 in Volt-X Motor Brochure

Franklin Electric 6 in Volt-X Changing Motor Voltage

Franklin Electric 60 Hz AIM Manual

Franklin Electric Motors Drives & Controls Catalog
