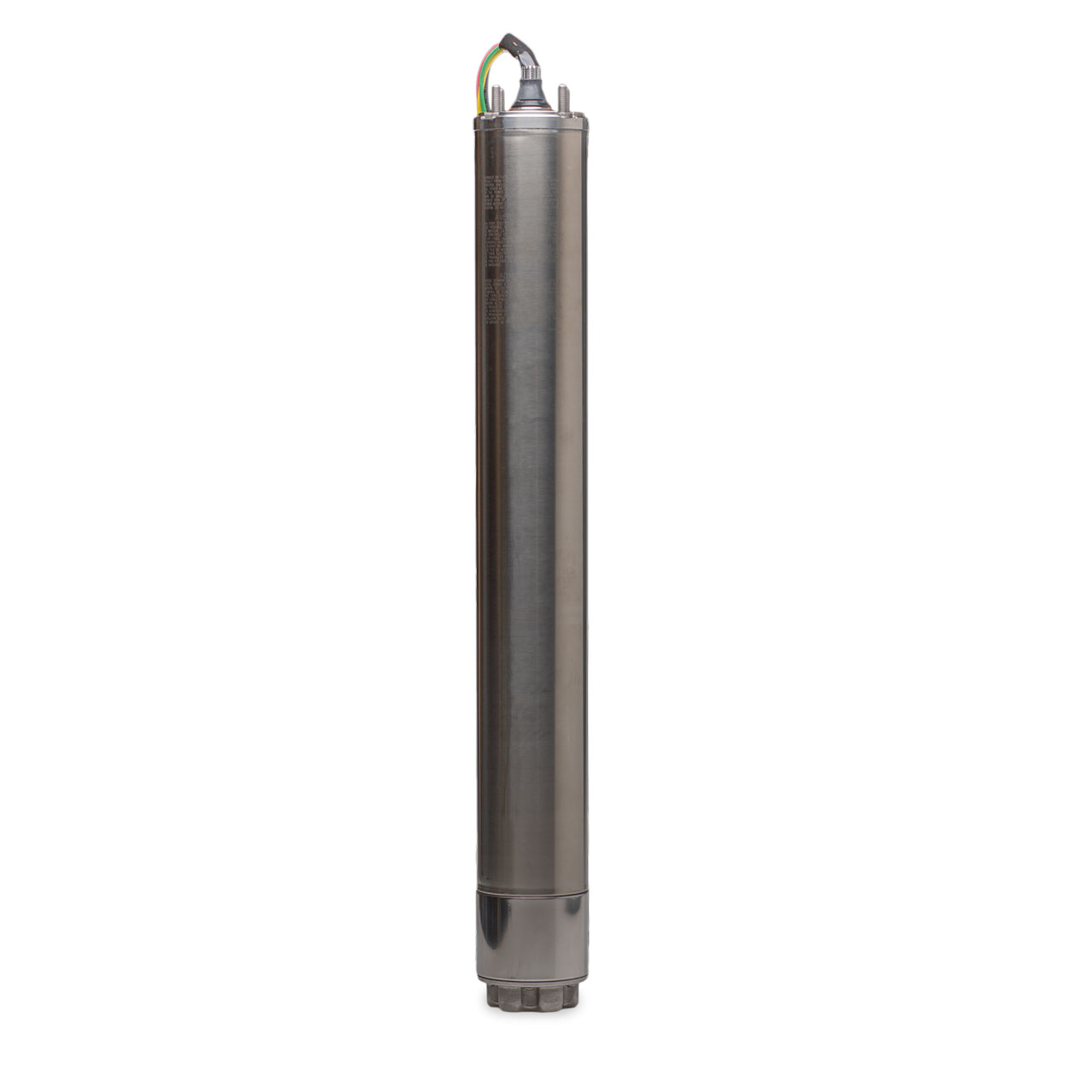

Franklin Electric 2343188602 High Thrust Water Well Motor 4" 7.5 HP 230V 3-Phase

Franklin Electric 2343188602 High Thrust Water Well Motor 4" 7.5 HP 230V 3-Phase

Usually ships within 1 week

SKU : FEC2343188602

In Stock Quantity:0

:
:
Brand : Franklin Electric
$2,596.23 USD
Shipping calculated at checkout.

Description

Franklin Electric™

Franklin Electric 4" High Thrust Submersible Motors

Franklin Electric offers a complete line of submersible motors for groundwater and other submerged pumping applications. The Franklin 4 in. Super Stainless motor has been the driving force behind residential and light commercial submersible pumps for decades. Designed and patented in 1950 by Franklin's founder, Ed Schaefer, this motor has proven to be the industry’s most trusted residential pump motor. These motors are built for dependable operation in 4 in. diameter or larger water wells.

Franklin Electric 4" Submersible Motor Features

  • Corrosion-Resistant All Stainless Steel Exterior Construction
  • Stainless Steel Splined Shaft
  • Hermetically-Sealed Windings
  • Anti-Track Self-Healing Resin System
  • Water Lubrication
  • Filter Check Valve
  • Kingsbury-Type Thrust Bearing
  • Pressure Equalizing Diaphragm
  • Built-In Lightning Arrestors (all single-phase; 200 and 230 Volt three-phase)
  • Removable “Water-Bloc” lead installed In North American 60 Hz water well motors.
  • UL 778 Recognized (North American Voltages)
  • CSA Certified
  • ANSI/NSF 61 Certified
  • NEMA Mounting Dimensions
  • Rotation: Single-Phase - CCW; Three-Phase Electrically Reversible

Specifications

Franklin Electric 4" Submersible Motor Specifications

  • BODY CONSTRUCTION: 304 Stainless Steel
  • HORSEPOWER: 7.5 HP
  • VOLTAGE: 3ø, 230V
  • RPM: 3450
  • SERVICE FACTOR: 1.15
  • DOWNWARD THRUST (lbs): 1500 lbs
  • MAX AMBIENT TEMPERATURE: 86°F/30°C
  • DUTY RATING: Continuous
  • FULL LOAD AMPS: 23.0
  • LEAD: 3-Wire, XPLE
  • CONTROL BOX REQUIRED

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric 4" Submersible Motor Product Resources


Franklin Electric 4 in High Thrust Motor Brochure

Franklin Electric 4 in Submersible Motor Catalog Pages

Franklin Electric 60 Hz AIM Manual

Franklin Electric Motors Drives & Controls Catalog
