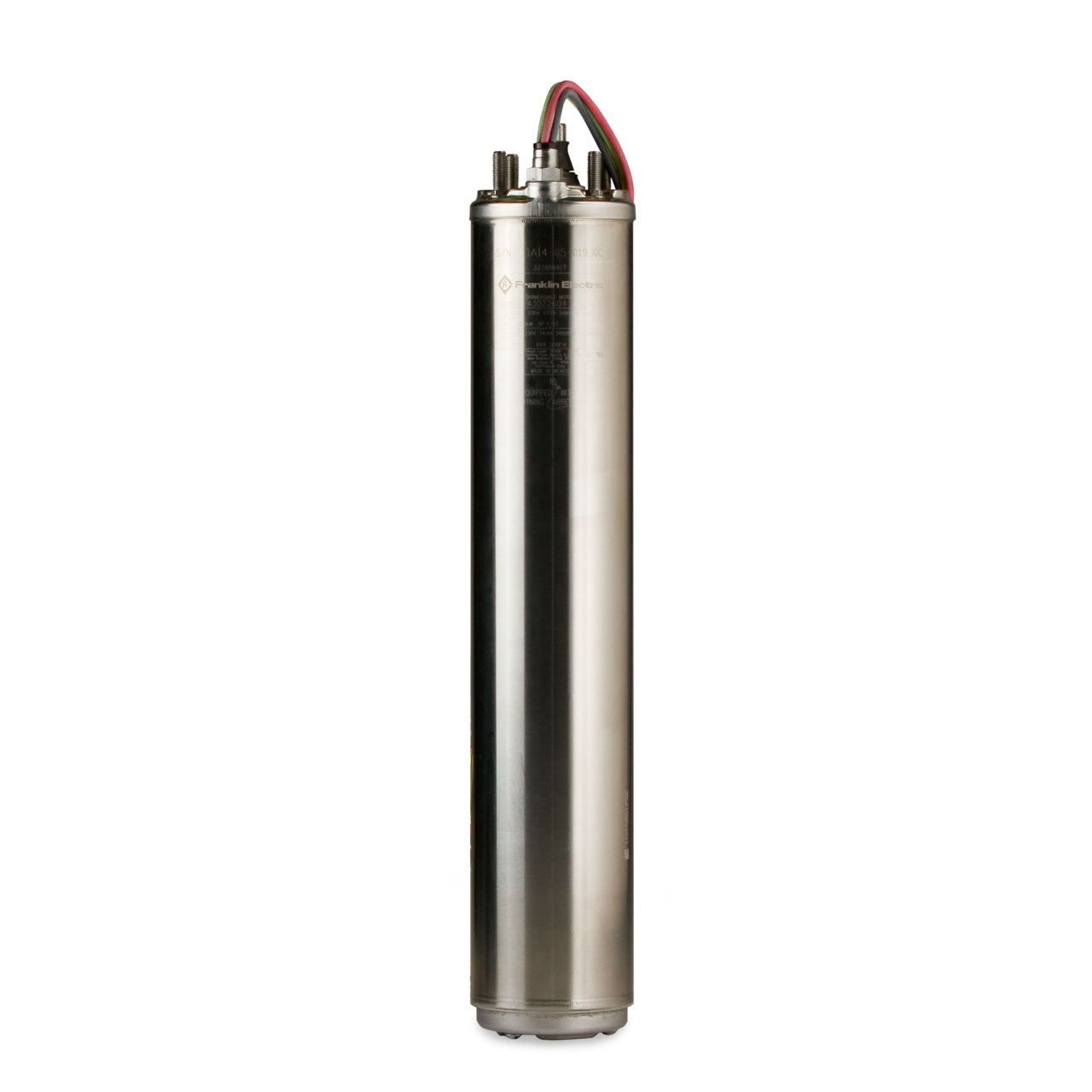

Franklin Electric 2247022604 Super Stainless Water Well Motor 4" 3.0 HP 230V 3-Wire Single-Phase

Franklin Electric 2247022604 Super Stainless Water Well Motor 4" 3.0 HP 230V 3-Wire Single-Phase

Usually ships within 1 week

SKU : FEC2247022604G

In Stock Quantity:2

:
:
Brand : Franklin Electric
$1,434.18 USD
Shipping calculated at checkout.

Description

Franklin Electric™

Franklin Electric 4" Super Stainless Submersible Motors

Franklin Electric offers a complete line of submersible motors for groundwater and other submerged pumping applications. The Franklin 4 in. Super Stainless motor has been the driving force behind residential and light commercial submersible pumps for decades. Designed and patented in 1950 by Franklin's founder, Ed Schaefer, this 3 hp submersible well pump motor has proven to be the industry’s most trusted residential pump motor. These 3 hp submersible well pump motors are built for dependable operation in 4 in. diameter or larger water wells.

Franklin Electric 4" Submersible Motor Features

  • Corrosion-Resistant All Stainless Steel Exterior Construction
  • Stainless Steel Splined Shaft
  • Hermetically-Sealed Windings
  • Anti-Track Self-Healing Resin System
  • Water Lubrication
  • Filter Check Valve
  • Kingsbury-Type Thrust Bearing
  • Pressure Equalizing Diaphragm
  • Built-In Lightning Arrestors (all single-phase; 200 and 230 Volt three-phase)
  • Removable “Water-Bloc” lead installed In North American 60 Hz water well motors.
  • UL 778 Recognized (North American Voltages)
  • CSA Certified
  • ANSI/NSF 61 Certified
  • NEMA Mounting Dimensions
  • Rotation: Single-Phase - CCW; Three-Phase Electrically Reversible

Specifications

Franklin Electric 4" Submersible Motor Specifications

  • BODY CONSTRUCTION: 304 Stainless Steel
  • HORSEPOWER: 3.0 HP
  • VOLTAGE: 1ø, 230V
  • RPM: 3450
  • SERVICE FACTOR: 1.15
  • DOWNWARD THRUST (lbs): 900 lbs
  • MAX AMBIENT TEMPERATURE: 86°F/30°C
  • DUTY RATING: Continuous
  • LEAD: 3-Wire, XPLE
  • CONTROL BOX REQUIRED

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric 4" Submersible Motor Product Resources


Franklin Electric 4 in Super Stainless Motor Brochure

Franklin Electric 4 in Submersible Motor Catalog Pages

Franklin Electric 60 Hz AIM Manual

Franklin Electric Motors Drives & Controls Catalog
