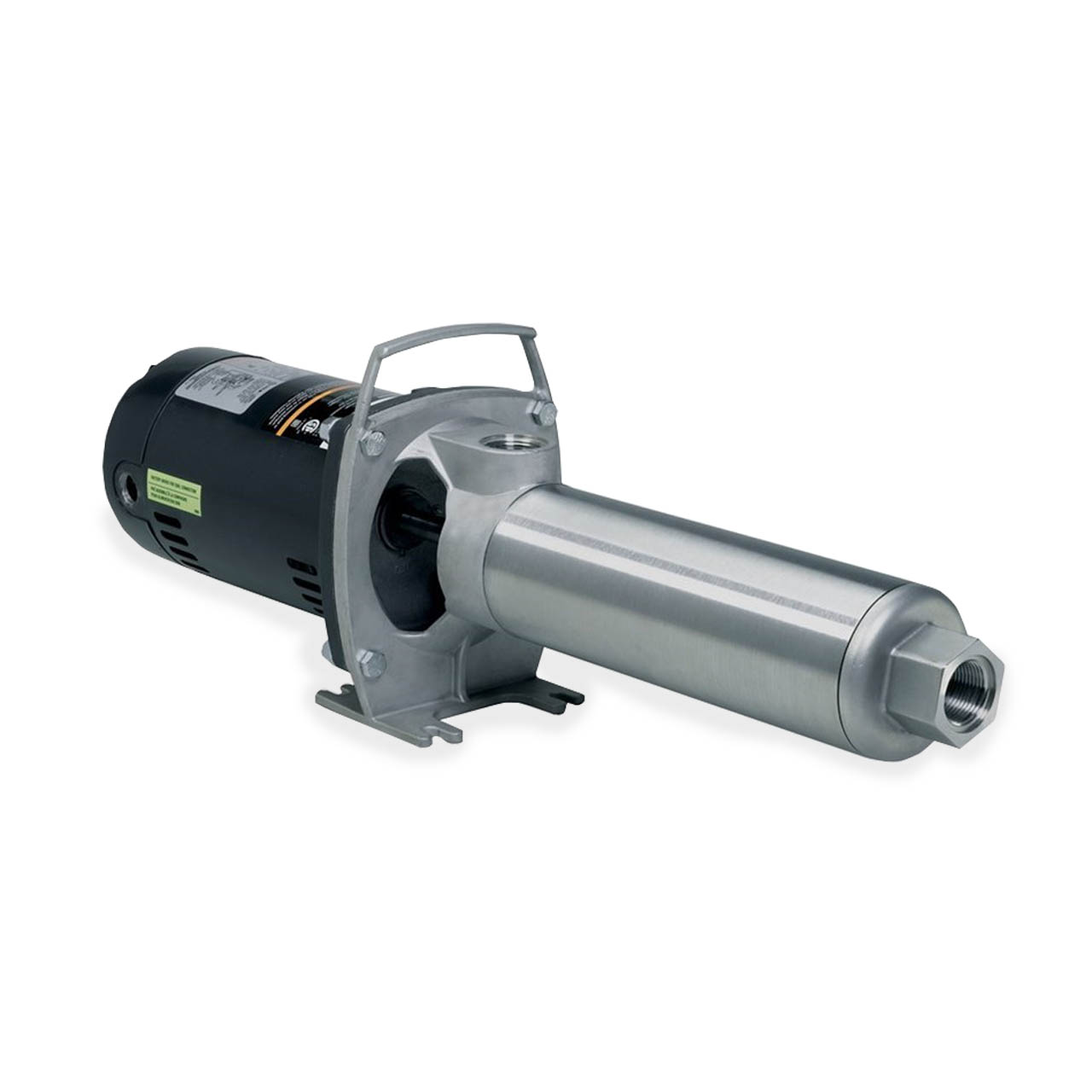

Franklin Electric 20FBT2S4 High Performance Stainless Steel Booster Pumps 2.0 HP 115/230V 1 Phase 20 GPM

Franklin Electric 20FBT2S4 High Performance Stainless Steel Booster Pumps 2.0 HP 115/230V 1 Phase 20 GPM

Usually ships within 1 week

SKU : FEC95832030

In Stock Quantity:0

:
Brand : Franklin Electric
$2,215.85 USD
Shipping calculated at checkout.

Description

Franklin Electric

Franklin Electric High Performance Booster Pump Description

The BT4 Horizontal Booster Pump is a low to medium capacity, high pressure, multi-stage unit. The BT4 can function as a multi-purpose high pressure pump, boosting water pressure from either city mains or private water systems. It is also ideal for applications that require more pressure than flow. Size ranges from 5 GPM to 25 GPM.

Franklin Electric Booster Pump Applications

  • Boosting Water Pressure From City Mains or Private Water Systems
  • Pressure Washing Buildings and Floors
  • Poultry Houses
  • Spray Cooling Equipment
  • Lawn and Crop Irrigation
  • Evaporative Cooling System Misters
  • Water Circulation
  • General Purpose Plumbing
  • Reverse Osmosis (Stainless Steel BT4)
  • Filtration (Stainless Steel BT4)

Franklin Electric High Performance Booster Pump Features

  • Designed for Boosting Water Pressure from a Variety of Sources Including Municipal and Private Water Systems
  • Stainless Steel Discharge Head on all Models
  • Stainless Steel Motor Bracket with a Rugged Support Foot for Horizontal or Vertical Mounting and a Handle for Portability of the Unit
  • 1-Inch Suction and 1-Inch Discharge are the Same Across the Entire Line, Simplifying Installation and Maintenance
  • Built by Franklin Electric's Patented (U.S. Patent 7,290,984) Tri-Seal Floating Stage System, For Maximum Efficiency, Longevity and Performance
  • Assembled with the Highest Quality Materials of Construction, Such as Acetal for Impellers.
  • Modified PPO Mechanical Seal for Corrosive Fluids
  • Easily Serviced Through a Back Pull-Out Design, Which Leaves All Plumbing and the Pump Undisturbed in Their Original Location
  • Industry Proven Square Flange Motors
  • Single-Phase: 1/2 Through 2 HP Motors are Dual Voltage, Set to Run with Either 115 V or 230 V Incoming Power, While 3 HP are 230 V Only
  • Three-Phase Also Available: 1/2 Through 3 HP Motors are Dual Voltage Set to Run with Either 208-230 V or 460 V Incoming Power
  • Shut-Off Pressures up to 270 PSI, Flow Rates from 5 to 25 GPM and Temperatures up to 120 °F / 49 °C
  • Designed for Industrial Applications

Specifications

Franklin Electric 20FBT2S4 Booster Pump Specifications

  • DISCHARGE SIZE: 1.0" FNPT
  • INLET SIZE: 1.0" FNPT
  • MAXIMUM CAPACITY: 29 GPM
  • MAXIMUM HEAD: 440'
  • IMPELLER DESIGN: Floating Stack
  • BODY CONSTRUCTION: Stainless Steel
  • HORSEPOWER: 2.0
  • MOTOR TYPE: 2-Compartment Dual-Voltage; ODP
  • VOLTAGE: 1ø, 115/230V
  • MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Franklin Electric High Performance Booster Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric High Performance Booster Pump Resources


Franklin Electric High Performance Booster Pump Product Pages

Franklin Electric High Performance Booster Pump Owner's Manual

Franklin Electric Pump Replacement Parts Catalog
