Stainless steel units are especially effective in applications where rust and/or corrosion can develop in systems. Semi-open impeller features self-cleaning ability that makes the unit useful in applications involving muddy or dirty liquids as well as clean, clear fluids. Discharge position can be adjusted in 90° increments with vent and drain plugs for all positions. Type 21 mechanical seal and O-ring casing seal. Pumps are close-coupled to totally enclosed fan cooled (TEFC) motors.

NOTE: Pumps are not Self-Priming and Require Flooded Suction.

Flint & Walling C5 Straight Centrifugal Pump Applications

• Liquid Transfer
• Heating and Cooling
• Recirculation
• Booster Service
• Other Industrial Applications
• Cooling Towers
• Car Washes

Flint & Walling C5 Straight Centrifugal Pump Features

• Investment Cast 316 Stainless Steel Construction with Viton® Seals or Cast Iron Construction with Buna Seals
• Stainless Steel Impellers with Solids-Handling Capacity of 1/8" - 3/16"
• High Flow and High Head Designs
• Maximum Temperature: Stainless Steel- 200° F (93° C) Viton®; Cast Iron- 180° F (82° C) Buna N
• Front Drain Plugs Located 90°Apart
• Max Head: 194′ (59 m) (100 PSI)
• Max Flow: 425 GPM (1,609 LPM)
• Max Working Pressure: 150 PSI
• 1 Year Limited Warranty

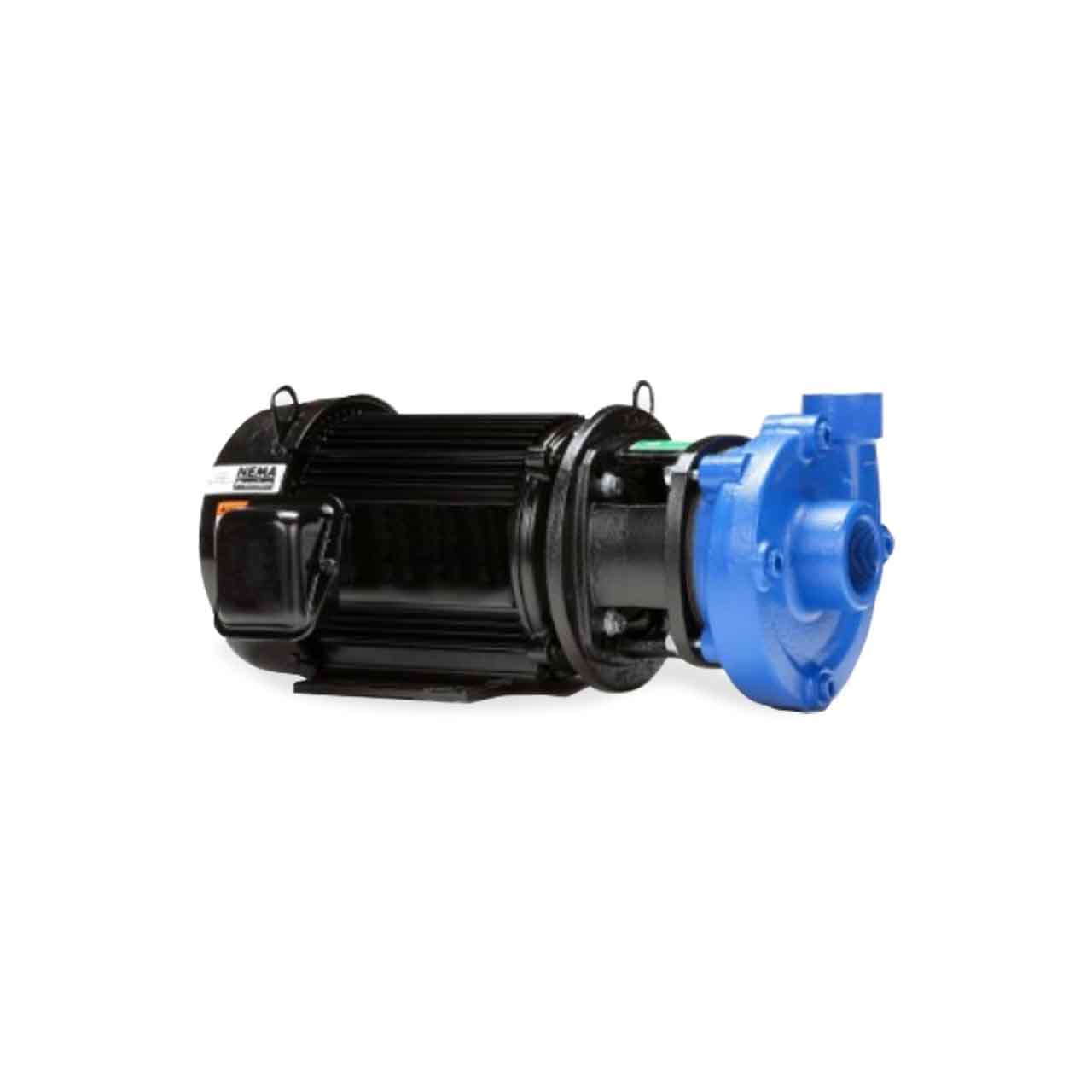

Flint & Walling C56A1503T Straight Centrifugal Pump Specifications

• DISCHARGE SIZE: 3.0" NPT
• SUCTION: 3.0"
• MAXIMUM SOLIDS HANDLING SIZE: 1/8" to 3/16"
• MAXIMUM CAPACITY: 195 GPM
• MAXIMUM HEAD: 390'
• IMPELLER MATERIAL: Stainless Steel, Semi-Open
• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 15 HP
• RPM: 3450
• MOTOR TYPE: TEFC (Totally Enclosed Fan Cooled)
• VOLTAGE: 3ø, 230/460V
• MAXIMUM LIQUID TEMPERATURE: 180° F (82° C)
• AMP DRAW (full load): 47/24

Flint & Walling C5 Straight Centrifugal Pump Performance
