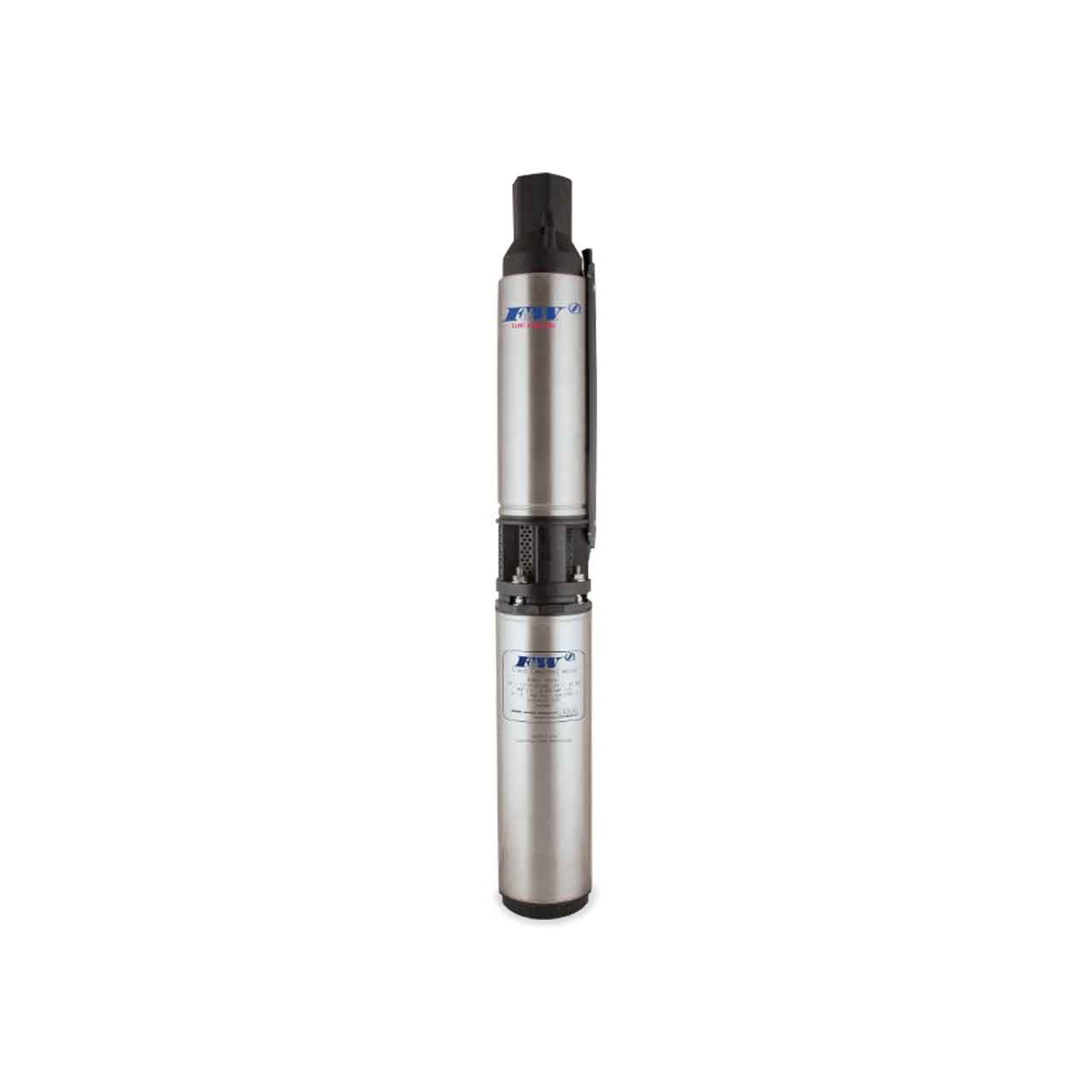

Flint & Walling 4" Rolled Shell Patriot Series 4F11P05305S Submersible Pump 11 GPM 0.5 HP 230V 1PH 2-Wire

Flint & Walling 4" Rolled Shell Patriot Series 4F11P05305S Submersible Pump 11 GPM 0.5 HP 230V 1PH 2-Wire

Usually ships within 1 week

SKU : FWG4F11P05305S

In Stock Quantity:0

:
Brand : Flint & Walling
$1,157.40 USD
Shipping calculated at checkout.

Description


Flint & Walling Rolled Shell Patriot Series Submersible Pump

Our Rolled Shell Patriot® Series is backed by 100% wet testing. We have tested this series to resist up to 3,500 lbs. of pull force, it exemplifies strength and resilience. Proudly paired with our 4" submersible motor, it ensures seamless integration for optimized functionality.
Designed with the contractor in mind, it prioritizes practicality and efficiency at every turn

Flint & Walling Rolled Shell Patriot Series Submersible Pump Features

  • Made in the USA with a Majority of USA Content.
  • Tested to Resist up to 3,500 lbs of Pull Force
  • Glass-Filled Noryl Discharge & Mounting Ring Reinforce Structural Integrity
  • Upgraded Full Staging for Improved Performance
  • Floating Impeller Stack Easily Passes Debris and Prevents Damage
  • Integrated Spider Bearing for Tighter Pump Shaft Security
  • Paired with Flint & Walling's 4" Submersible Motor

Specifications

Flint & Walling 4F11P05305S Submersible Pump Specifications

    Water Well Motors
  • BODY CONSTRUCTION: Stainless Steel
  • HORSEPOWER: 0.5 HP
  • VOLTAGE: 1ø, 230V
  • RPM: 3450
  • MAX AMBIENT TEMPERATURE: 120°F/49°C
  • LEAD: 2-wire
    • Water Well Pump Ends
  • DISCHARGE SIZE: 1.25” FNPT
  • NOMINAL FLOW RATING: 11 GPM
  • HORSEPOWER: 0.5 HP
  • MAXIMUM CAPACITY: 16 GPM
  • MAXIMUM HEAD: 250’
  • STAGES: 8
  • IMPELLER DESIGN: Floating Stack
  • IMPELLER MATERIAL: Noryl
  • BODY MATERIAL: Stainless Steel
  • MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Flint & Walling Rolled Shell Patriot Series 11 GPM Submersible Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Flint & Walling Rolled Shell Patriot Series Submersible Pump Product Resources


Download Flint & Walling Rolled Shell Patriot Series Submersible Pump Brochure FW1676

Download Flint & Walling Submersible Pump Installation Instructions 135874
