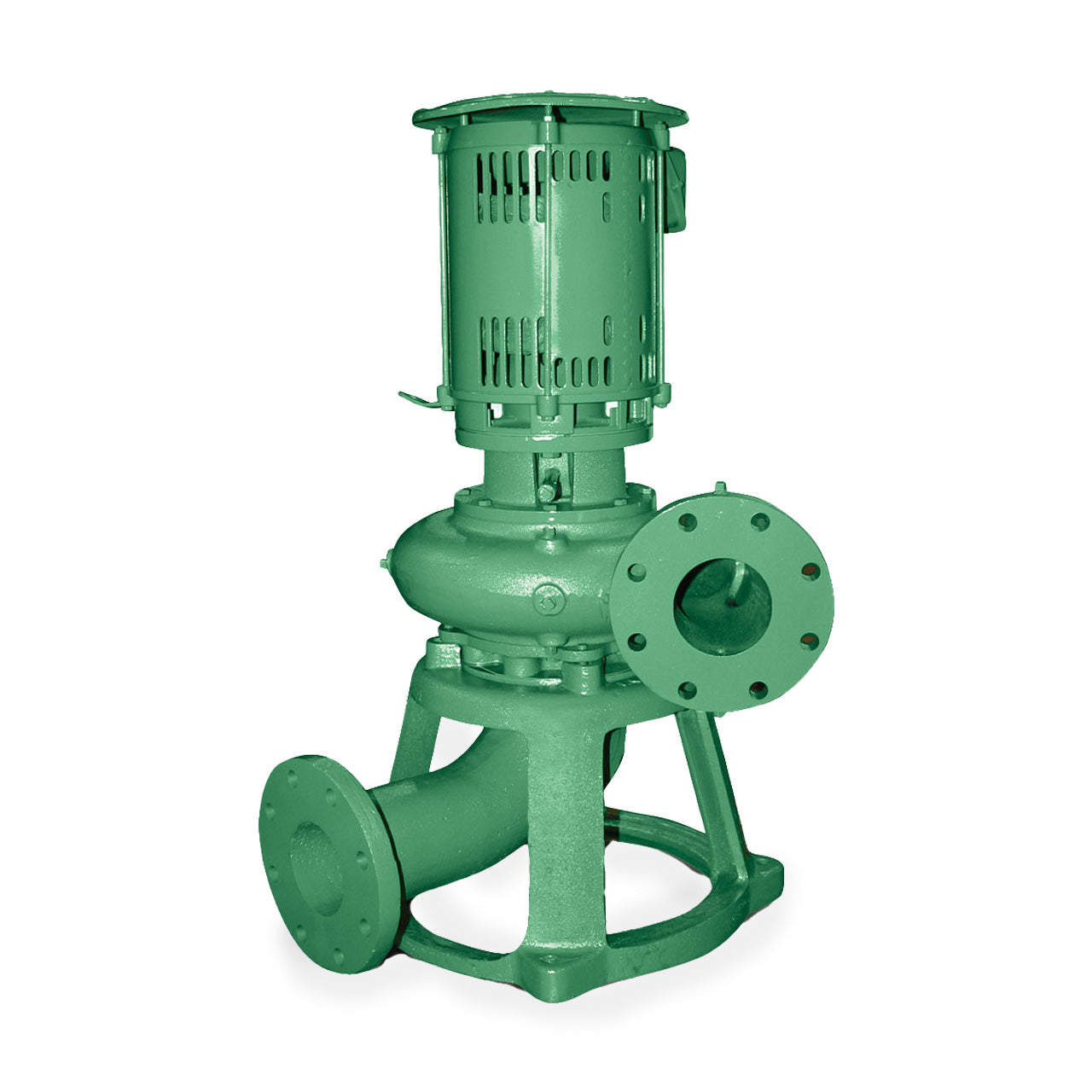

Deming 4x4x12x3 Dry Pit Solids Handling Vertical Mounted Sewage Pump 25 HP 3PH

Deming 4x4x12x3 Dry Pit Solids Handling Vertical Mounted Sewage Pump 25 HP 3PH

Usually ships within 5 weeks

SKU : DEM718240661431

In Stock Quantity:0

:
Brand : Deming
$66,814.40 USD
Shipping calculated at checkout.

Description

Deming Dry Pit Solids Handling Sewage Pump Product Description

Deming 7100 Series offers an expanded line of solids-handling centrifugal pumps for mounting in a (horizontal or veritcal position) handling up to 3" spheres. Compact design and heavy shaft with optimum bearing span assure longer packing and bearing life with lower maintenance costs. Series 7100 pumps provide the outstanding performance required to meet the widest possible range of service conditions encountered by industry and municipalities. Typical applications include pumping sanitary wastes, industrial wastes, treatment wastes, storm water, process wastes, pollution control, cannery wastes and meat-process wastes.

Deming Dry Pit Solids Handling Sewage Pump Typical Application

  • Sanitary Waste
  • Industrial Waste
  • Treatment Plants
  • Storm Water
  • Hospitals
  • Schools
  • Process Industry
  • Pollution Control

Deming Dry Pit Solids Handling Sewage Pump Standard Features

  • Handles 3" Spheres
  • All Iron Pump Construction
  • Regreasable Bearings
  • Double-Row Outboard Thrust Bearing
  • 416 Stainless Steel Shaft Sleeve
  • External Impeller Adjustment
  • Back Pull-Out Design
  • Positive Machine-Registered Fit Alignment
  • Choice of Rotation
  • Suction Elbow with Handhole Cleanout (Vertical Units)
  • Pump-Out Vanes on Back of Impeller
  • Handhole Cleanout in Casing
  • MODEL 7180 is Vertically Mounted and Close Coupled to a JM Frame Motor

Specifications

Deming Dry Pit Solids Handling Sewage Pump Specifications

  • HORSEPOWER: 25 HP
  • PHASE: 3 Ph
  • HERTZ: 60 Hz
  • RPM: 1750 RPM
  • FRAME: 284JM
  • DISCHARGE SIZE: 4.0" NPT Discharge Connection
  • SUCTION SIZE: 4.0"
  • MAXIMUM DIAMETER SPHERES: 3.0"
  • MAXIMUM IMPELLER DIAMETER: 12" Diameter
  • MOTOR ENCLOSURE: Open Drip Proof Motor (ODP)
  • MAX HEAD: 160'
  • MAX FLOW RATE: 1150 GPM

Deming Dry Pit Solids Handling Sewage Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Deming Dry Pit Solids Handling Sewage Pump Product Resources


Download Deming Dry Pit Solids Handling Sewage Pump Brochure

Download Deming Dry Pit Solids Handling Sewage Pump Specifications

Download Deming Dry Pit Solids Handling Sewage Pump Assembly

Download Deming Dry Pit Solids Handling Sewage Pump Motor Mount Data

Download Deming Dry Pit Solids Handling Sewage Pump Performance Curve

Download Deming Dry Pit Solids Handling Sewage Pump 1750RPM Selection Curve
