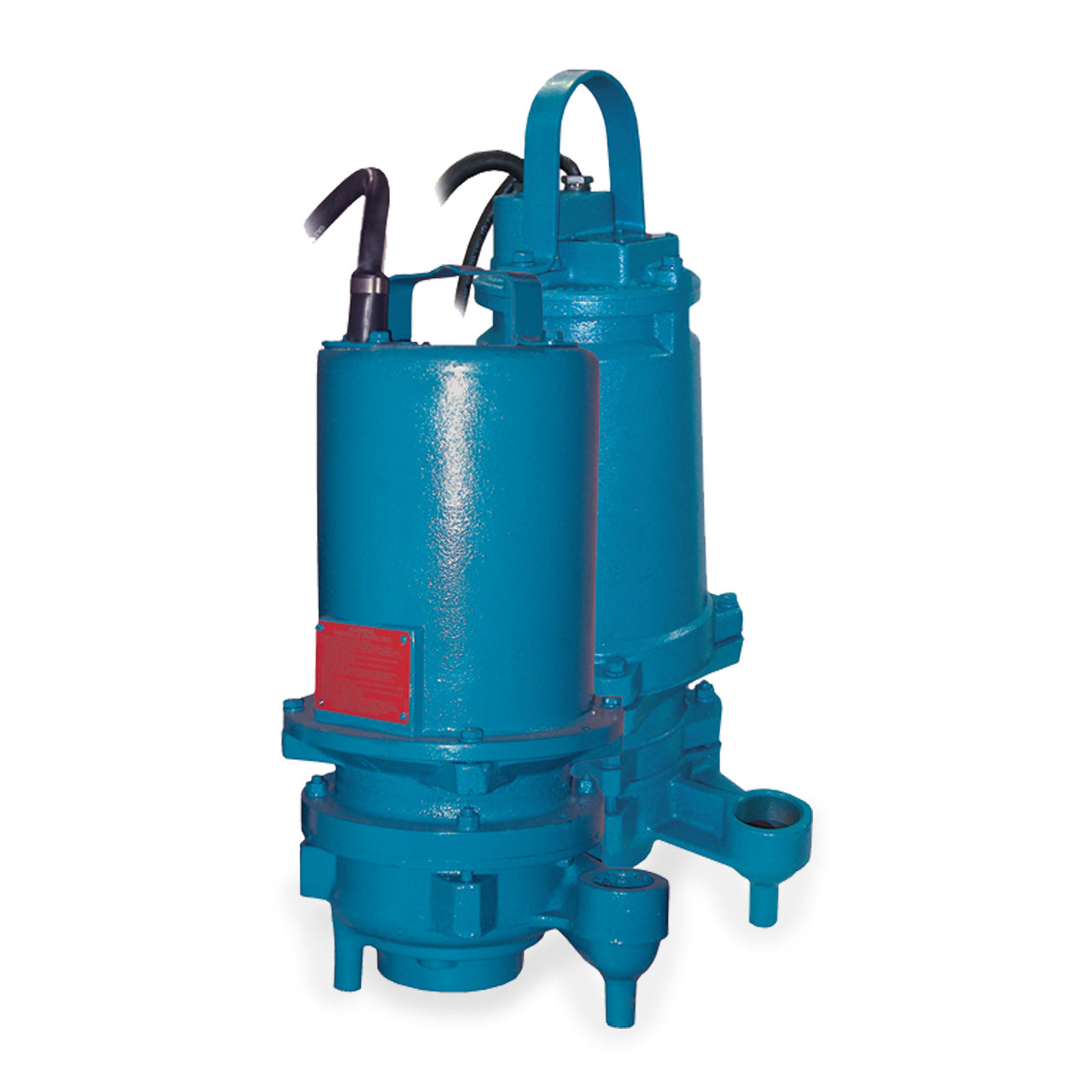

Barnes SGVF2062L Submersible High-Flow Grinder Pump 2.0 HP 200V 3PH 30' Cord Manual

Barnes SGVF2062L Submersible High-Flow Grinder Pump 2.0 HP 200V 3PH 30' Cord Manual

Usually ships within 4 weeks

SKU : BAR110610

In Stock Quantity:0

:
Brand : Barnes
$5,130.43 USD
Shipping calculated at checkout.

Description


Barnes SGVF Series Submersible Grinder Pump

Barnes SGV Grinder Pumps provide a broad design flexibility with a choice of basin configurations. The UltraCAP II dry well level control system options and a variety of control panels and accessories allow system customization. Exclusive non-fouling controls eliminate routing, maintenance service calls.

Barnes SGVF Series Submersible Grinder Pump Application

The grinder pump is designed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.

Barnes SGVF Series Submersible Grinder Pump Features

  • Cast Iron Construction.
  • NEMA B- Three Phase, Torque Curve, Oil-Filled, Squirrel Cage Induction Motor.
  • Three Phase Dual Voltage 230/460; Requires Overload Protection to be Included in Control Panel.
  • Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Intermediate Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load. Lower Bearing: Sleeve, Oil Lubrication, Radial Load.
  • Tandem Mechanical, Oil Filled Reservoir Seal.
  • Seal Rotating Faces - Carbon & Stationary Faces - Ceramic Elastomer-Buna-N Hardware - 300 Series Stainless.
  • Impeller is made of Cast Iron.
  • 1-1/4" NPT Vertical, Bolt-On Flange Discharge.
  • Temperature Rating: 160°F (71°C) Intermittent.

Specifications

Barnes SGVF2062L Submersible Grinder Pump Specifications

  • VOLTAGE: 3ø, 200V, 60 Hz
  • HORSEPOWER: 2.0 HP
  • AMP DRAW: 11.0
  • MOTOR TYPE: NEMA B-Three Phase Torque Curve. Oil-Filled. Squirrel Cage Induction
  • RPM: 3450
  • MAXIMUM HEAD: 101'
  • MAXIMUM CAPACITY: 58 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 1-1/4" NPT, Vertical, Bolt On Flange
  • IMPELLER TYPE: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3
  • CORD LENGTH: 30'
  • CORD SIZE: 12/4, SOW
  • BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C) Continuous
  • CONTROL BOX REQUIRED
  • MANUFACTURER PART NUMBER: 110610

Barnes SGVF Series Submersible Grinder Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barnes SGVF Series Submersible Grinder Pump Product Resources


Download Barnes SGVF/SGVH Series Submersible Grinder Pump Specifications

Download Barnes SGVF/SGVH Series Submersible Grinder Pump Manual
