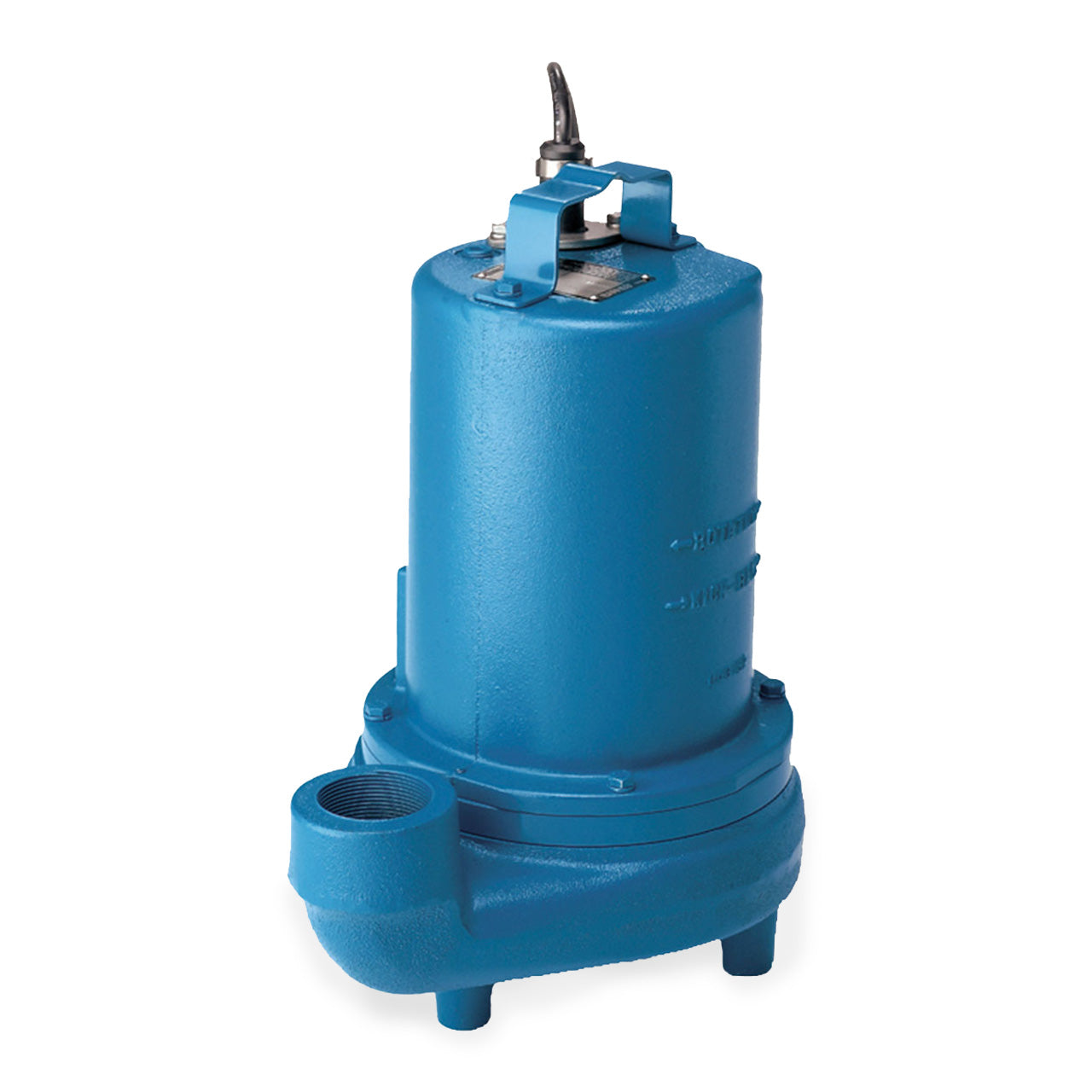

Barnes EH1542HT Submersible High Temperature Effluent Pump 1.5 HP 460 3PH 20' Cord Manual

Barnes EH1542HT Submersible High Temperature Effluent Pump 1.5 HP 460 3PH 20' Cord Manual

Usually ships within 2 weeks

SKU : BAR105095

In Stock Quantity:-2

:
Brand : Barnes
$2,158.86 USD
Shipping calculated at checkout.

Description


Barnes EH-HT Series Submersible Effluent Pump

Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.

Barnes EH-HT Series Submersible Effluent Pump Applications

Pump is designed for handling sewage effluent in HIGH TEMPERATURE septic tank/effluent applications.

Barnes EH-HT Series Submersible Effluent Pump Features

  • Cast Iron Construction.
  • NEMA B-Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
  • Three Phase 200-240/460V is Tri-Voltage. 600V Requires Overload Protection to be Included in Control Panel.
  • Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
  • Single Mechanical Seal.
  • Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
  • Impeller is Cast Iron ASTM A-48, Class 30.
  • 2" NPT Female Vertical Discharge.
  • Temperature Rating: 200°F (93°C) Continuous.

Specifications

Barnes EH1542HT Submersible Effluent Pump Specifications

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 1.5 HP
  • AMP DRAW (full load): 3.5
  • MOTOR TYPE: Tri-Voltage
  • RPM: 3450 RPM
  • MAXIMUM HEAD: 84'
  • MAXIMUM CAPACITY: 85 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
  • MAXIMUM SOLIDS HANDLING SIZE: 3/4" Spherical Solids
  • IMPELLER TYPE: 3-Vane Open with Pump Out Vanes on Back Side. Dynamically Balanced, ISO G6.3
  • IMPELLER DIAMETER: 4.75"
  • CORD LENGTH: 20'
  • CORD SIZE: 14/4 Type SOW, Quick Connect
  • BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
  • DUTY RATING: Continuous

Barnes EH-HT Series Submersible Effluent Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barnes EH-HT Series Submersible Effluent Pump Product Resources



Download Barnes EH-HT Series Submersible Effluent Pump Specifications

Download Barnes EH-HT Series Submersible Effluent Pump Manual
