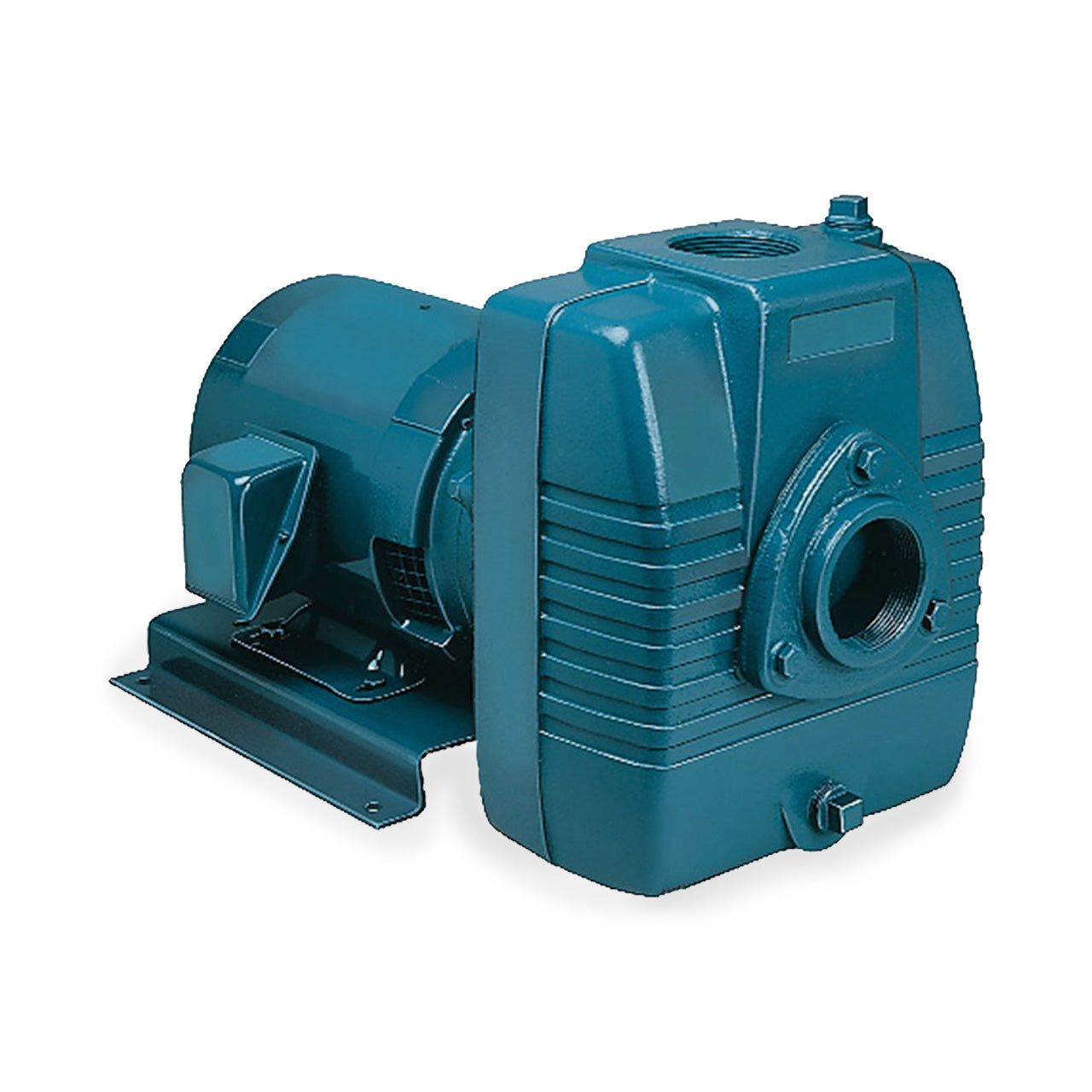

Barnes 20CCE Self-Priming Close Coupled Pump w/ODP Motor 10 HP 230/460V 3PH
Barnes 20CCE Self-Priming Close Coupled Pump w/ODP Motor 10 HP 230/460V 3PH
SKU : BAR028510
In Stock Quantity:0
:
Brand
:
Regular price
$7,273.20 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes 20CCE Series Self-Priming Close Coupled Pump
Barnes Self-Priming Pumps are designed to meet a broad range of general and special industrial applications. Base mounted pump models are available with motors up to 150 HP, while close-coupled pump models are available from 3 to 25 HP.
Barnes 20CCE Series Self-Priming Close Coupled Pump Applications
Self-priming centrifugal pumps designed for marine, municipal and industrial applications.
Barnes 20CCE Series Self-Priming Close Coupled Pump Features and Benefits
- Open Drip Proof (ODP), NEMA B-Three Phase Torque Curve. C-Face, Footed, Squirrel Cage Induction. Marine Duty Per USCG259 and AIEEE-45, 50°C Ambient Motor.
- Three Phase Dual Voltage 230/460.
- Cast Iron ASTM A-48, Class 30 Motor Housing and Volute
- Check Valve is Neoprene Flap Type with Weight-Cast Iron ASTM A-48, Class 30.
- Seal is a Mechanical, Self Lubricating, Rotating Faces - Carbon, Stationary Faces - Ceramic Elastomer - Buna-N, Hardware - 300 Series Stainless.
- 3.0" NPT Female, Discharge and Suction
- Temperature Rating: 160°F (71°C), Continuous.
Specifications
Specifications
Barnes 20CCE Series Self-Priming Close Coupled Pump Specifications
- DISCHARGE SIZE: 3.0" NPT Female
- INLET SIZE: 3.0" NPT Female
- MAXIMUM CAPACITY: 400 GPM
- MAXIMUM HEAD: 138'
- MOTOR: Open Drip Proof (ODP)
- HORSEPOWER: 10 HP
- RPM: 3450
- VOLTAGE: 230/460V
- PHASE: 3 Ph
- FULL LOAD AMPS: 28/14
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- IMPELLER TYPE: Semi-Open, Dynamically Balanced, ISO G6.3
- MAXIMUM LIQUID TEMPERATURE: 160°F (71°C) Continuous
- SELF PRIMING: YES
Barnes 20CCE Series Self-Priming Close Coupled Pump Performance Curve
