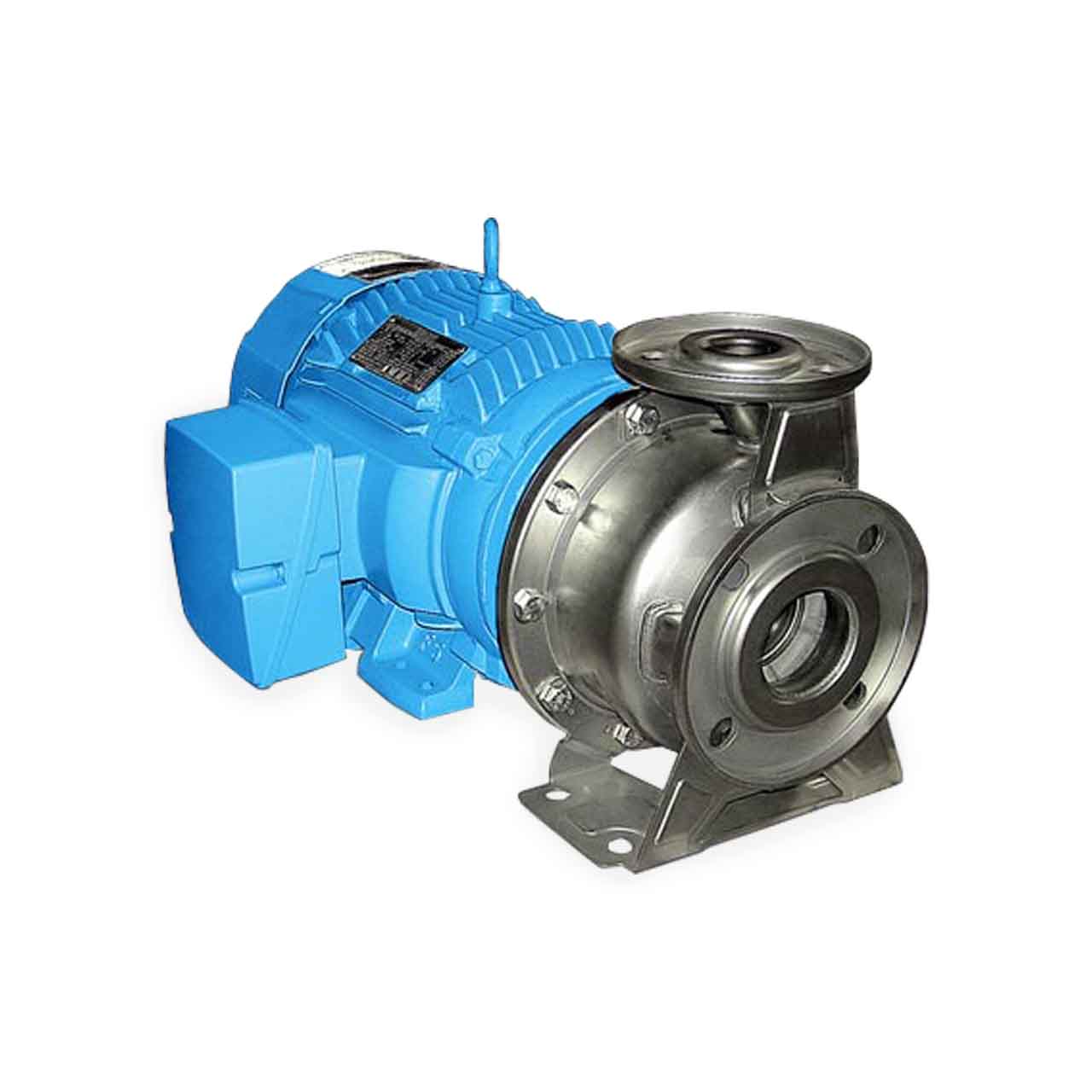

Barmesa PS1 1/4-3-2 End-Suction Centrifugal Stainless Steel Pump 3.0 HP 3PH

Barmesa PS1 1/4-3-2 End-Suction Centrifugal Stainless Steel Pump 3.0 HP 3PH

Usually ships within 3 weeks

SKU : BMS62390103

In Stock Quantity:0

:
Brand : Barmesa Pumps
$4,176.00 USD
Shipping calculated at checkout.

Description

Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump

Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Applications include Booster Systems, Water Transfers, Chilled Water Systems and High Flow-Rate/Medium Pressure.

Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Features

  • NEMA JM, Totally Enclosed With External Ventilation; 60 Hz, 3450 RPM (2 poles) and 1750 RPM (4 poles), 230/460 Volts Three Phase. Requires Overload Protection to be Included in Control Panel.
  • 304 Series Stainless Steel Housing
  • Mechanical Type 21, Lubricated by Water Seal
  • Seal is Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
  • Impeller is made of 304 Series Stainless Steel
  • 2.0" 150 lb ANSI, Flange Horizontal Suction
  • 1¼" 150 lb ANSI, Flange Horizontal Discharge
  • Temperature Rating: 212 °F (100 °C); With Seal for High Temperature Rises up to 250 °F (121 °C).

Specifications

Barmesa PS1¼-3-2 End-Suction Centrifugal Pump Stainless Steel Specifications

  • DISCHARGE SIZE: 1¼" 150 lb ANSI, Flange Horizontal
  • INLET SIZE: 2.0" 150 lb ANSI, Flange Horizontal
  • MAXIMUM CAPACITY: 120 GPM
  • MAXIMUM HEAD: 100'
  • IMPELLER MATERIAL: 304 Stainless Steel / Closed
  • BODY CONSTRUCTION: 304 Stainless Steel
  • HORSEPOWER: 3.0 HP @ 3500 RPM
  • MOTOR TYPE: TEFC (Totally Enclosed Fan-Cooled)
  • VOLTAGE: 3ø - 230/460V
  • MAXIMUM LIQUID TEMPERATURE: 250°F (121°C)

Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Product Resources


Download Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Catalog Sheet

Download Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Manual
