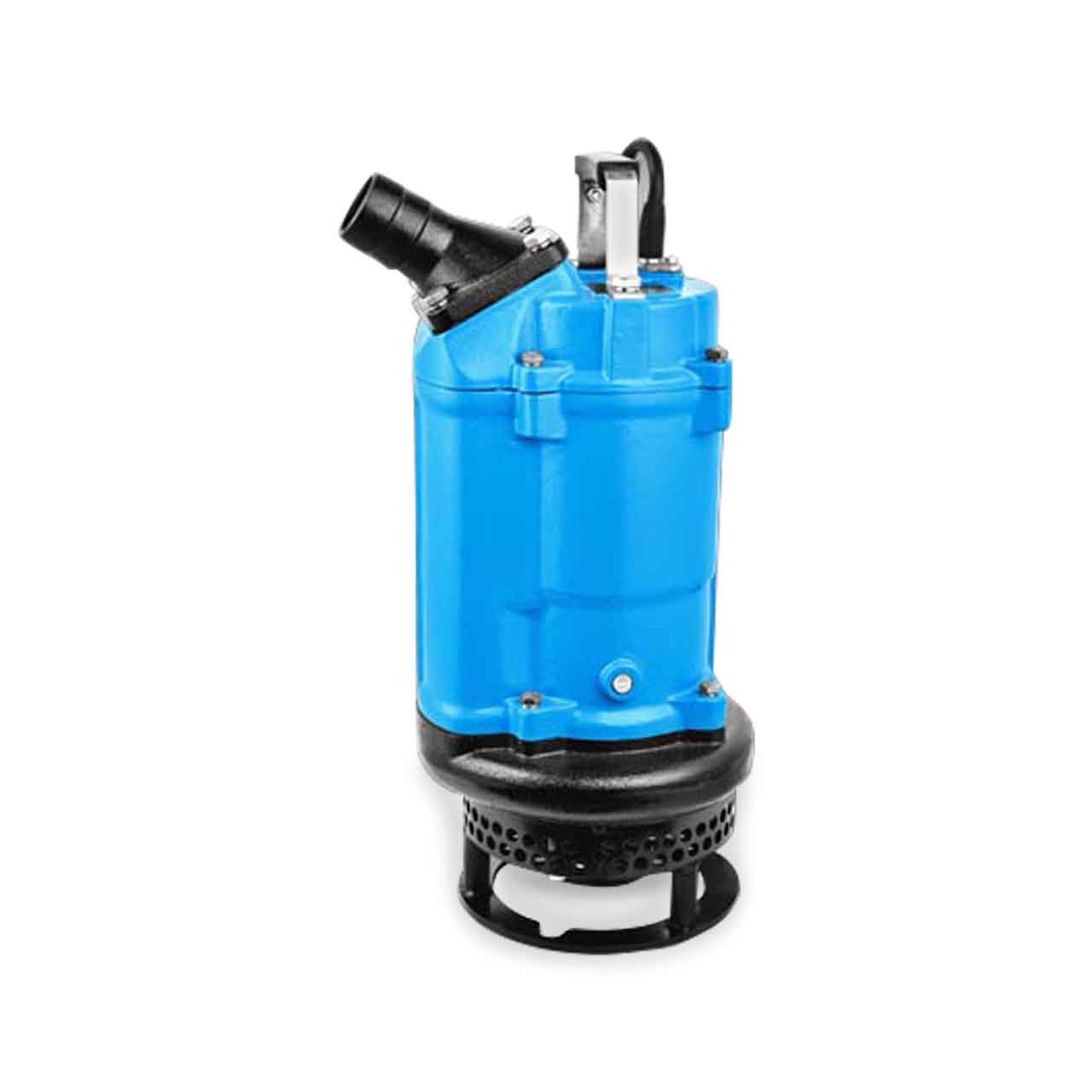

Barmesa 2KAG303 Submersible Light Slurry Pump 3.0 HP 230V 3PH 50' Cord Manual

Barmesa 2KAG303 Submersible Light Slurry Pump 3.0 HP 230V 3PH 50' Cord Manual

Usually ships within 2 days

SKU : BMS2KAG303

In Stock Quantity:0

:
Brand : Barmesa Pumps
$1,601.25 USD
Shipping calculated at checkout.

Description

Barmesa KAG Series Submersible Light Slurry Pump

The KAG Series is engineered for demanding abrasive environments. Its high chrome steel impeller and pump cover offer exceptional wear resistance, while the built-in high nickel chrome agitator ensures efficient handling of muddy water with abrasive solids. Available in single and three-phase motor options.

Barmesa KAG Series Submersible Light Slurry Pump Applications

  • Construction Sites
  • Light Mud
  • Effluent Water
  • Sewage/Wastewater

Barmesa KAG Series Submersible Light Slurry Pump Features

  • Three Phase Induction Motor, 230 & 460 Volts, 60 Hz, 3450 RPM. Insulation Class F and IP68 Protection Class.
  • Cast Iron ASTM A-48 Class 30 Motor Housing
  • Double Mechanical, Oil Filled Chamber Seal
  • Seal is SiC-SiC/Carbon-SiC. Stainless Steel Hardware
  • Impeller is made of High Chrome Alloy, Semi-Open
  • 4.0" Vertical/Horizontal Hose Coupling. Cast Iron ASTM A-48 Class 30
  • Temperature Rating: 104°F (40°C)

Specifications

Barmesa 2KAG303 Submersible Light Slurry Pump Specifications

  • VOLTAGE: 3ø, 230V, 60Hz
  • HORSEPOWER: 3.0 HP
  • AMP DRAW (full load): 8.2
  • MOTOR TYPE: Three Phase Induction Motor
  • RPM: 3450
  • MAXIMUM HEAD: 90'
  • MAXIMUM CAPACITY: 130 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 2.0"
  • IMPELLER TYPE: High Chrome Alloy, Semi-Open
  • CORD LENGTH: 50' Type Neoprene Cord
  • BODY CONSTRUCTION: Cast Iron ASTM A-48 Class 30
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)

Barmesa KAG Series Submersible Light Slurry Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa KAG Series Submersible Light Slurry Pump Product Resources


Download Barmesa 2KAG303 Series Submersible Light Slurry Pump Catalog Sheet

Download Barmesa Submersible Dewatering Pump Brochure

Download Barmesa KAG Series Submersible Light Slurry Pump Manual
